Part Number # 5SE2280
SKU # 2267117
Image Disclaimers Message
5SE2280

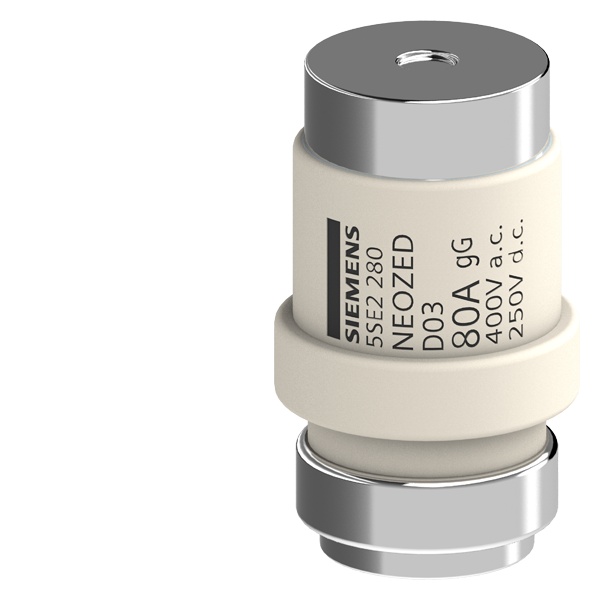

Siemens 5SE2280 Sentron Fuse Link
Part Number # 5SE2280
SKU # 2267117
$270.90 /  10Each
Typical price:$925.00 / Each
Siemens 5SE2280 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SE2280 |
| SKU #: | 2267117 |
| Amperage Rating: | 80 A |
| Dimensions: | 25.6 mm Dia x 48 mm L |
| Rated Breaking Capacity: | 50 kA |
| Temperature Rating (Degrees F): | -5 to 40 deg C |
| Type: | Neozed Design |
| Color: | Blue |
| Country of origin: | DE |
| Material: | Ceramic |
| Mounting type: | Rail/Screw-In |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121626 |
| UPC: | 00754554344034 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$270.90 /  10Each
Typical price:$925.00 / Each
Quantity:
- Sentron Fuse Link, Neozed Design, 400 V AC, 80 A, Rated Breaking Capacity: 50 kA, -5 to 40 deg C Temperature Rating, Rail/Screw-In Mount, Ceramic Material, Blue Color, 25.6 mm Dia x 48 mm L Dimensions
5SE2280 Application
For supplementary protection5SE2280 Item Features
- Class gG, Size D03
 - Much more compact which saves space in the distribution board
 - Modern devices like the minimized switching devices, which combine the functions of a switch disconnector and a fuse base
 - Wide range of accessories, such as busbars for one, two, or three-phase wiring
 - Modern terminals for minimized D02 and NEOZED comfort bases - visible, clear and controllable connection simplifies cable entry
 - Double terminal chambers permit connection of two wires of different cross-sections
 - Lower power loss of the fuse links

5SE2280 Standards
IEC 60269|VDE 0636|VDE 0635SKU #2267117Part Number #5SE2280UNSPSC39121626UPC00754554344034
