Siemens 5SJ4105-8HG40 Sentron Miniature Circuit Breaker
Part Number # 5SJ4105-8HG40
SKU # 2162660

5SJ4105-8HG40
Siemens 5SJ4105-8HG40 Sentron Miniature Circuit Breaker
Part Number # 5SJ4105-8HG40
SKU # 2162660
Siemens 5SJ4105-8HG40 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SJ4105-8HG40 |
| SKU #: | 2162660 |
| UNSPSC: | 39121601 |
| UPC: | 00754554932484 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Siemens 5SJ4105-8HG40 Sentron Miniature Circuit Breaker
Brand: Siemens
Part Number: 5SJ4105-8HG40
Siemens Sentron Miniature Circuit Breaker, Type HSJ, 240 V AC, 0.5 A, 50 Hz Frequency, 14 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Handle Actuator, Line/Load/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 18 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SJ4105-8HG40 MCB 5SJ4 1P 240V 0.5A SAME PH 14K D-TRIP
Catalog Description: MCB UL489 1-P 0.5A D-TRIP SAME PHASE MINIATURE CIRCUIT-BREAKER 240 V 15 KA, 1-POLE, D, 0,5 A, D=70MM TO UL 489, SAME POLARITY
5SJ4105-8HG40 Application
Branch Circuit Protectors and Reverse Feed Applications5SJ4105-8HG40 Item Features
- 40 deg C calibration base (industrial applications)
- 30 deg C calibration base
- Can be used for field wiring applications, 14 to 4 AWG, copper only
- D-trip is designed for high inrush loads, magnetic trip point is 10 to 20 times the MCB rating
- 0.75 to 35 sq-mm solid and stranded conductors
- Visible indicator for ON and OFF/trip
- Touch protection to EN50274
- Identical wire screw connections on line and load side
- Smaller size than traditional MCCBs
- 35 mm DIN rail mounting
- https://www.youtube.com/watch?v=g7wVsTW6WNg
5SJ4105-8HG40 Standards
UL 489 RatedSKU #2162660Part Number #5SJ4105-8HG40UNSPSC39121601UPC00754554932484

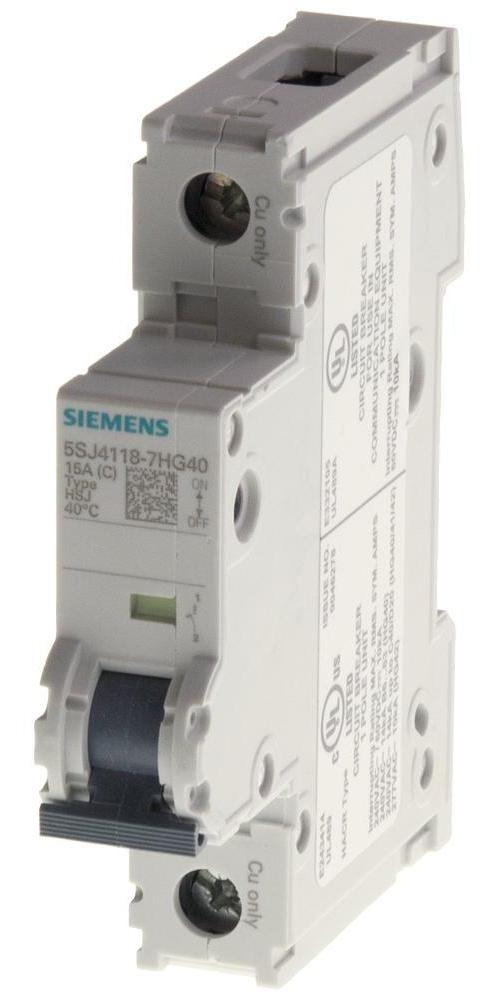

Image provided may only be a representation of final product and may include optional equipment
