Siemens 5SJ4132-7HG42 Sentron Miniature Circuit Breaker
Part Number # 5SJ4132-7HG42
SKU # 2326038
Siemens 5SJ4132-7HG42 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SJ4132-7HG42 |
| SKU #: | 2326038 |
| Dimensions: | 121 mm H x 18 mm W x 70 mm D |
| UNSPSC: | 39121601 |
| UPC: | 00754554959542 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SJ4132-7HG42 Sentron Miniature Circuit Breaker
Brand: Siemens
Part Number: 5SJ4132-7HG42
Siemens Sentron Miniature Circuit Breaker, Type NSJ, 277/480 VAC, 32 A, 50 Hz Frequency, 10 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph, Handle Actuator, Line/Load/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 121 mm H x 18 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SJ4132-7HG42 (N) MCB 5SJ4 1P 277V 32A 10K C-TRIP TYPE NSJ NON-CANCELABLE, NON-RETURNABLE
Catalog Description: CIRCUIT BREAKER 10KA, 1POLE, C, 32A ACC. TO UL 489 - 277V
5SJ4132-7HG42 Application
Branch Circuit Protection Applications5SJ4132-7HG42 Item Features
- 40 deg C calibration base (industrial applications)
- 30 deg C calibration base
- Can be used for field wiring applications 14 to 4 AWG copper only
- Suitable for reverse feed applications
- C-trip is designed for general device protection in control circuits and all other miniature circuit breaker systems, magnetic trip point is 5 to 10 times the MCB rating
- 0.75 to 35 sq-mm solid and stranded conductors
- Visible indicator for on and off/trip
- Touch protection to EN50274
- Identical wire screw connections on line and load side
- Smaller size than traditional MCCBs
- 35 mm DIN standard mounting rail
5SJ4132-7HG42 Standards
UL 489 RatedSKU #2326038Part Number #5SJ4132-7HG42UNSPSC39121601UPC00754554959542

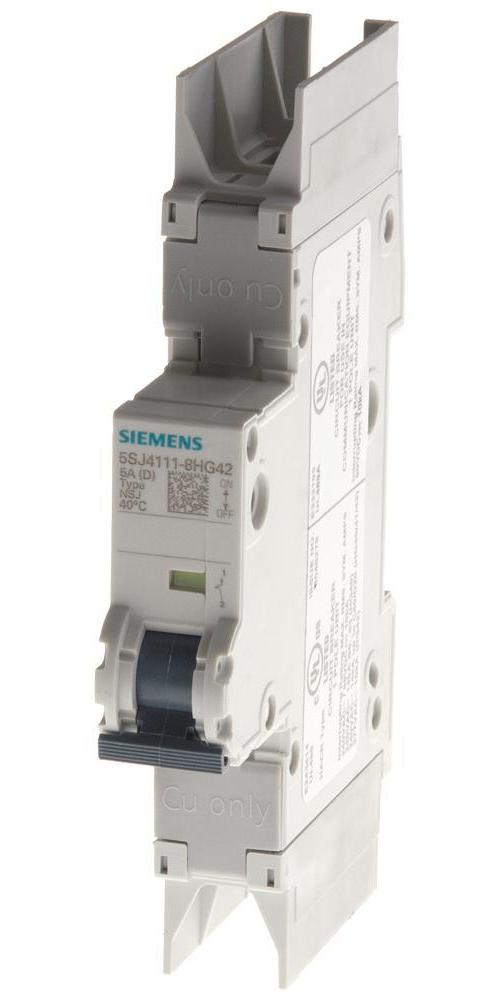

Image provided may only be a representation of final product and may include optional equipment
