Brand: Siemens

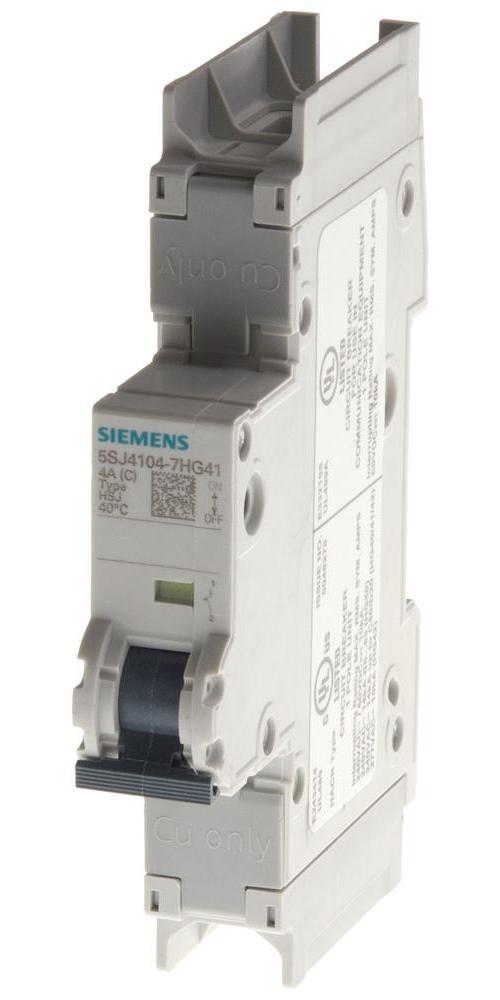

Siemens 5SJ41357HG41 Sentron Miniature Circuit Breaker
Image Disclaimers Message
Brand: Siemens
Siemens 5SJ41357HG41 Sentron Miniature Circuit Breaker
Brand: Siemens
Siemens 5SJ41357HG41 Sentron Miniature Circuit Breaker
Part #:5SJ41357HG41
SKU #: 2353867
$54.26/EA
Key Features
Part #:5SJ41357HG41
SKU #: 2353867
Brand: Siemens
Amperage Rating: 35, 35 A
Dimensions: 110 mm H x 18 mm W x 70 mm D
Enclosure Type: IP20
Frame: HSJ
Frequency Rating: 50, 50 Hz
$54.26/EA
- Visible indicator for ON and OFF/trip
- Finger safe design
- CFC and silicone free
- 240 VAC opposite phase
- Standard frame
- Identical wire screw connections on line and load side
Specifications
Brand: Siemens
Amperage Rating: 35, 35 A
Dimensions: 110 mm H x 18 mm W x 70 mm D
Enclosure Type: IP20
Frame: HSJ
Frequency Rating: 50, 50 Hz
Interrupt Rating: 14, 14 kA
Number of Poles: 1
Temperature Rating (Degrees F): -25 to 55, -25 to 55 deg C
Trip Range: 1.13 to 1.45 A, 5 to 10 A
Trip Type: Thermal Magnetic, Thermal/Magnetic
Voltage Rating: 240, 240 VAC
Wire Size: 14 to 4, 14 to 4 AWG
Connection type: Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00662643167931
Siemens 5SJ41357HG41 Sentron Miniature Circuit Breaker
Siemens Sentron Miniature Circuit Breaker, 240 VAC, 35 A, 50 Hz Frequency, 14 kA Interrupt, HSJ Frame, Thermal/Magnetic Trip, 1.13 to 1.45 A, 5 to 10 A Trip, 1 Pole, Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 110 mm H x 18 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SJ41357HG41 MCB 5SJ4 1P 240V 35A 14K C-TRIP
Catalog Description: CIRCUIT BREAKER 240V 14KA, 1-POLE, C, 35A, D=70MM ACC. TO UL 489
Item FeaturesBranch Circuit Protectors Applications
Item Features
Item FeaturesCE Certified|CSA 22.2 No. 5-02|cULus E24314|IEC/EN 60 898|IEC/EN 60 947-2|HACR Rated|UL 489
