Brand: Siemens

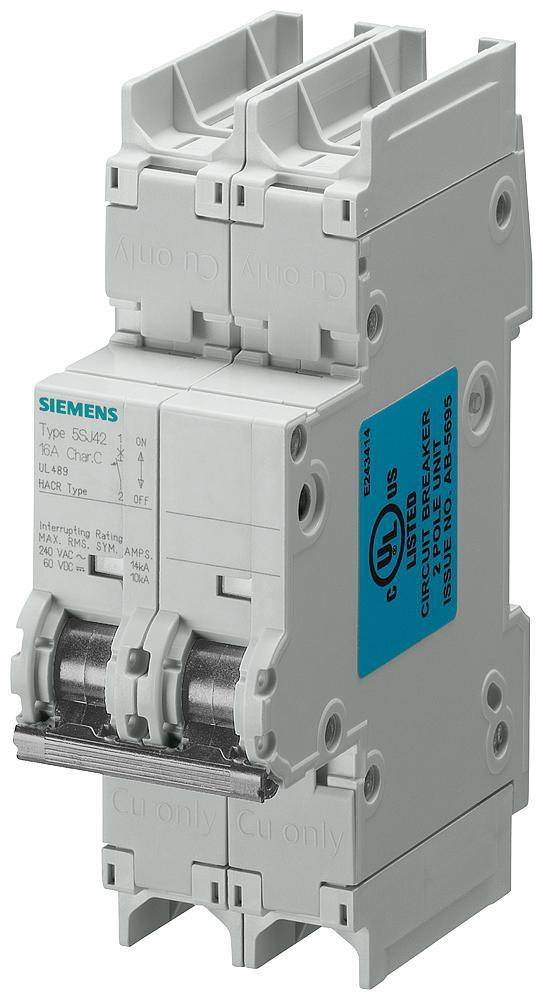

Siemens 5SJ4206-7HG41 Miniature Circuit Breaker
Image Disclaimers Message
Brand: Siemens
Siemens 5SJ4206-7HG41 Miniature Circuit Breaker
Brand: Siemens
Siemens 5SJ4206-7HG41 Miniature Circuit Breaker
Part #:5SJ4206-7HG41
SKU #: 2192229
$108.26/EA
Key Features
Part #:5SJ4206-7HG41
SKU #: 2192229
Brand: Siemens
Actuator Type: Handle
Amperage Rating: 6, 6 A
Dimensions: 110 mm H x 36 mm W x 70 mm D, 36 mm W x 70 mm D x 110 mm H
Enclosure Type: IP20
Frame: HSJ
$108.26/EA
- 30 deg C calibration base
- Can be used for field wiring applications, 14 to 4 AWG, copper only
- Suitable for reverse feed applications
- C-trip is designed for general device protection in control circuits and all other miniature circuit breaker systems, magnetic trip point is 5 to 10 times the MCB rating
- 0.75 to 35 sq-mm solid and stranded conductors
- Visible indicator for On/Off/trip
- Touch protection to EN50274
- Identical wire screw connections on line and load side
- Smaller size than traditional MCCBs
- 35 mm DIN rail mounting
Specifications
Brand: Siemens
Actuator Type: Handle
Amperage Rating: 6, 6 A
Dimensions: 110 mm H x 36 mm W x 70 mm D, 36 mm W x 70 mm D x 110 mm H
Enclosure Type: IP20
Frame: HSJ
Frequency Rating: 50, 50 Hz
Interrupt Rating: 14, 14 kA
Number of Poles: 2
Phase: 1, 1 ph
Temperature Rating (Degrees F): -25 to 55, -25 to 55 deg C
Trip Type: Thermal Magnetic, Thermal/Magnetic
Voltage Rating: 240, 240 VAC
Wire Size: 14 to 4, 14 to 4 AWG
Connection type: Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00804766285868
Siemens 5SJ4206-7HG41 Miniature Circuit Breaker
Siemens Miniature Circuit Breaker, 240 VAC, 6 A, 50 Hz Frequency, 14 kA Interrupt, HSJ Frame, Thermal/Magnetic Trip, 2 Pole, 1 ph ph, Handle Actuator, Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 36 mm W x 70 mm D x 110 mm H Dimensions
Additional Description: SIEM-5SJ4206-7HG41 MCB 5SJ4 2P 240V 6A 14K C-TRIP HSJ
Catalog Description: Fuse_DEVICE 5SJ42-6A_240V_2POL_C
Item FeaturesBranch Circuit Protectors Applications
Item Features
Item FeaturesCSA 22.2 No. 5-02|CE Certified|cULus Listed|EN 60898/60947-2|HACR Rated|UL 489 File No E243414
