Part #:5SJ4211-8HG42
SKU #: 2248393
$128.06/EA
Key Features
Part #:5SJ4211-8HG42
SKU #: 2248393
Brand: Siemens
Amperage Rating: 5, 5 A
Dimensions: 121 mm H x 36 mm W x 76 mm D, 36 mm W x 76 mm D x 121 mm H
Enclosure Type: IP20
Frequency Rating: 50, 50 Hz
Interrupt Rating: 10, 10 kA
$128.06/EA
- Visible indicator for On/Off/trip
- Finger safe design
- CFC and silicone free
- Standard frame
- Identical wire screw connections on line and load side
- Thermal trip point - 1.13 to 1.45 protector rating
- Magnetic trip point - 10 to 20 times in rating
Specifications
Brand: Siemens
Amperage Rating: 5, 5 A
Dimensions: 121 mm H x 36 mm W x 76 mm D, 36 mm W x 76 mm D x 121 mm H
Enclosure Type: IP20
Frequency Rating: 50, 50 Hz
Interrupt Rating: 10, 10 kA
Number of Poles: 2
Power Rating: 5, 5 W
Temperature Rating (Degrees F): -25 to 55, -25 to 55 deg C
Trip Type: Thermal Magnetic, Thermal/Magnetic
Type: Type NSJ
Voltage Rating: 277/480, 277/480 VAC
Wire Size: 14 to 4, 14 to 4 AWG
Connection type: Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00754554959788

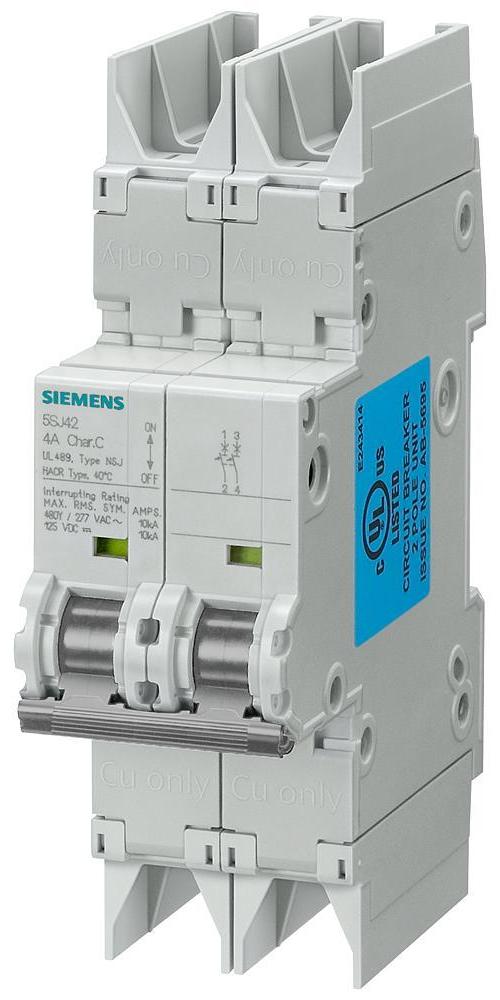

Siemens 5SJ4211-8HG42 Miniature Circuit Breaker
Siemens Miniature Circuit Breaker, Type NSJ, 277/480 VAC, 5 A, 5 W Power, 50 Hz Frequency, 10 kA Interrupt, Thermal/Magnetic Trip, 2 Pole, Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 36 mm W x 76 mm D x 121 mm H Dimensions
Additional Description: SIEM-5SJ4211-8HG42 MCB 5SJ4 2P 480/277 5A 10K D-TRIP _2POL TYPE NSJ
Catalog Description: Switch_OVERCURRENT 5SJ4211-8HG42-5SJ4211-8HG42_5A_5A_240V_2Pole
Item FeaturesBranch Circuit and Feeder Protection Applications
Item Features
Item FeaturesCE Marked|CSA 22.2 No 5-02|cULus E24314|IEC/EN 60 898/60 947-2|HACR Rated|UL 489
