Part Number # 5SJ42308HG41
SKU # 2370577
Brand: Siemens
5SJ42308HG41
Siemens 5SJ42308HG41 Sentron Miniature Circuit Breaker
Part Number # 5SJ42308HG41
SKU # 2370577
$138.86 / Each
Typical price:$540.00 / Each
Siemens 5SJ42308HG41 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SJ42308HG41 |
| SKU #: | 2370577 |
| Actuator Type: | Handle |
| Amperage Rating: | 30 A |
| Dimensions: | 110 mm H x 36 mm W x 70 mm D |
| Enclosure Type: | IP20 |
| Frame: | NSJ |
| Frequency Rating: | 50 Hz |
| Interrupt Rating: | 14 kA |
| Number of Poles: | 2 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Trip Type: | Thermal Magnetic |
| Wire Size: | 14 to 4 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00662643168105 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$138.86 / Each
Typical price:$540.00 / Each
Quantity:
- Siemens Sentron, 5SJ42308HG41, Miniature Circuit Breaker, 240 V AC, 30 A, 50 Hz Frequency, 14 kA Interrupt, NSJ Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Handle Actuator, Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 110 mm H x 36 mm W x 70 mm D Dimensions
5SJ42308HG41 Application
Branch Circuit Protectors Applications5SJ42308HG41 Item Features
- 40 deg C calibration base (industrial applications)
- Auxiliary contacts for circuit breaker
- Suitable for reverse feed applications
- Smaller size than traditional MCCBs
- 35 mm DIN standard mounting rail
- Finger safe and multi-function terminals
- Visible indicator for ON and OFF/trip
- Touch protection to EN50274
- 0.75 to 35 sq-mm solid and stranded conductors
- D-trip is designed for high inrush loads, magnetic trip point is 10 to 20 times the MCB rating
- Identical wire screw connections on line and load side
- High performance MCB provides compact supplementary, energy limiting and circuit protection
- Can be used for field wiring applications, 14 to 4 AWG, copper (Cu) only
- https://www.youtube.com/watch?v=g7wVsTW6WNg
5SJ42308HG41 Standards
BAA Compliant|CCC Marked|CE Marked|HACR Rated|IEC/EN 60898/60947-2|UL 489/File No E243414|VDE Approved|UL 489, CSA 22.2 NO. 5-02, HACR, IEC/EN 60 898, IEC/EN 60 947-2SKU #2370577Part Number #5SJ42308HG41UNSPSC39121601UPC00662643168105

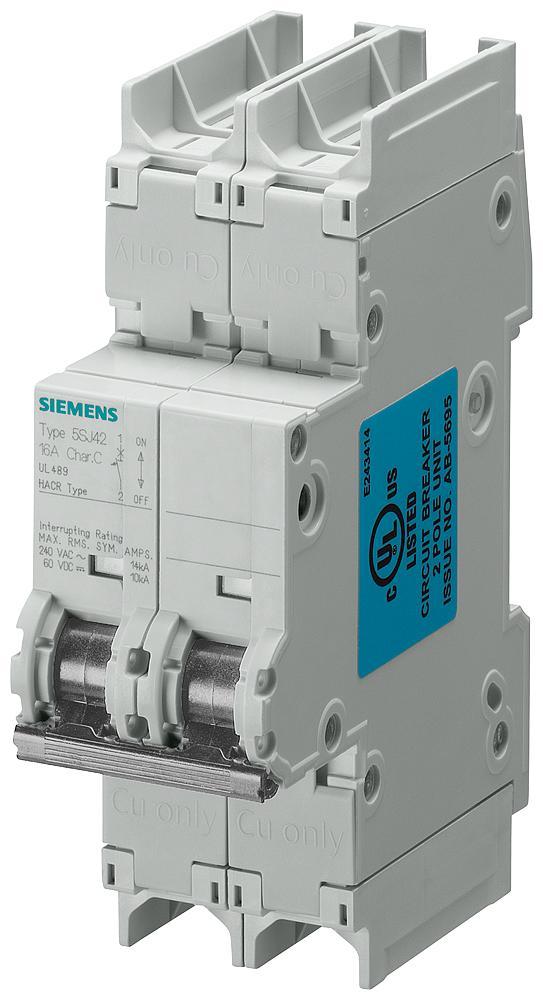

Image provided may only be a representation of final product and may include optional equipment
