Part Number # 5SJ42408HG41
SKU # 2194644
5SJ42408HG41

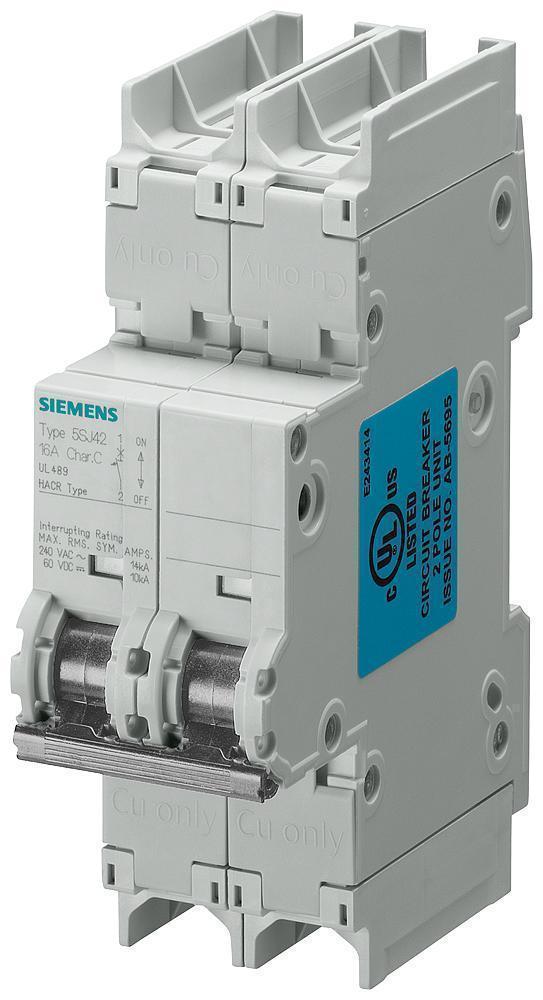

Siemens 5SJ42408HG41 Sentron Miniature Circuit Breaker
Part Number # 5SJ42408HG41
SKU # 2194644
Siemens 5SJ42408HG41 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SJ42408HG41 |
| SKU #: | 2194644 |
| Dimensions: | 110 mm H x 36 mm W x 70 mm D |
| UNSPSC: | 39121601 |
| UPC: | 00662643168167 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SJ42408HG41 Sentron Miniature Circuit Breaker
Brand: Siemens
Part Number: 5SJ42408HG41
Siemens Sentron Miniature Circuit Breaker, Type NSJ, 240 VAC, 40 A, 50 Hz Frequency, 10 kA Interrupt, Thermal/Magnetic Trip, 2 Pole, 1 ph, Handle Actuator, Line/Load/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 110 mm H x 36 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SJ42408HG41 (N) MCB 5SJ4 2P 240V 40A 10K D-TRIP NSJ NON-CANCELABLE, NON-RETURNABLE
Catalog Description: MCB UL489 2-POLE 40A D-TRIP TYPE NSJ MINIATURE CIRCUIT-BREAKER 240 V 10 KA, 2-POLE, D, 40 A, D=70 MM ACC. TO UL 489
5SJ42408HG41 Application
Branch Circuit Protection Applications5SJ42408HG41 Item Features
- 40 deg C calibration base (industrial applications)
- 30 deg C calibration base
- Can be used for field wiring applications 14 to 4 AWG copper only
- Suitable for reverse feed applications
- D-trip is designed for high inrush loads, magnetic trip point is 10 to 20 times the MCB rating
- 0.75 to 35 sq-mm solid and stranded conductors
- Visible indicator for on and off/trip
- Touch protection to EN50274
- Identical wire screw connections on line and load side
- Smaller size than traditional MCCBs
- 35 mm DIN standard mounting rail
5SJ42408HG41 Standards
UL 489 RatedSKU #2194644Part Number #5SJ42408HG41UNSPSC39121601UPC00662643168167
Image provided may only be a representation of final product and may include optional equipment
