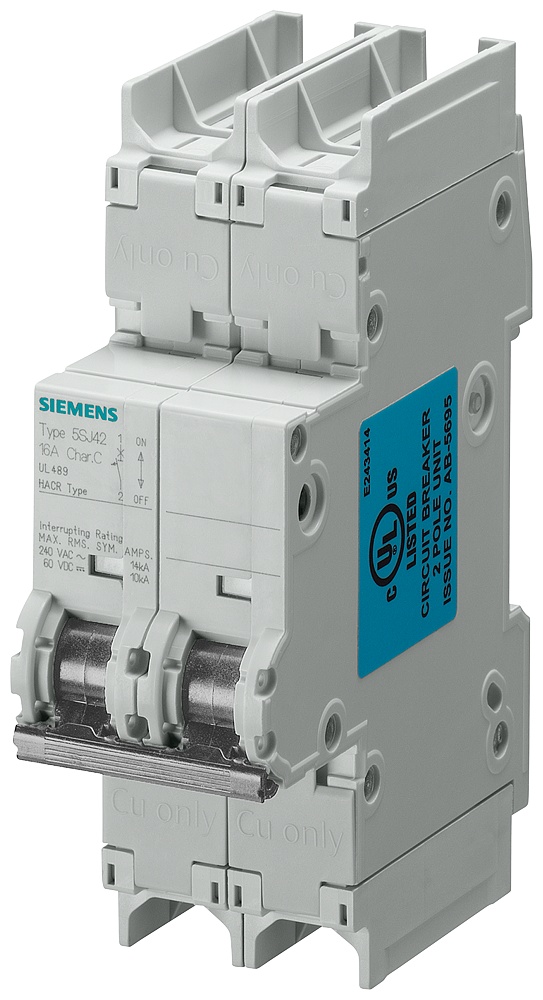

Siemens 5SJ4250-7HG41 Miniature Circuit Breaker
Part Number # 5SJ4250-7HG41
SKU # 2329827
$217.80 / Each
Typical price:$726.00 / Each
Siemens 5SJ4250-7HG41 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SJ4250-7HG41 |
| SKU #: | 2329827 |
| Actuator Type: | Handle |
| Amperage Rating: | 50, 50 A |
| Dimensions: | 36 mm W x 70 mm D x 90 mm H, 90 mm H x 36 mm W x 70 mm D |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 2 |
| Series: | 5SJ |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Trip Type: | Class C/Thermal Magnetic, Thermal Magnetic |
| Type: | Type HSJ |
| Wire Size: | 14 to 4, 14 to 4 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00754554939544 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$217.80 / Each
Typical price:$726.00 / Each
Quantity:
- Siemens Miniature Circuit Breaker, Type HSJ, Series: 5SJ, 240 V AC, 50 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, Handle Actuator, Screw, 14 to 4 AWG Wire, IP20/IP40, DIN Rail Mount, -25 to 55 deg C, 36 mm W x 70 mm D x 90 mm H
5SJ4250-7HG41 Application
Branch Circuit Protection Applications5SJ4250-7HG41 Item Features
- Can be used globally for all applications in residential, non-residential and industrial buildings, this facilitates the planning of installations and enhances export opportunities
- The devices can be used according to IEC/EN 60898-1 and UL 489, which means these devices can be installed anywhere in the world
- Can be used for both AC voltage and DC voltage up to 125 VAC
- Rated making and breaking capacity up to 14 kA in according with UL 489 and up to 15 kA in according with IEC 60947-2
- Fast mounting with busbars up to 115 A and feeder terminals up to 50 sq-mm
5SJ4250-7HG41 Standards
CSA C22.2 No 5-02|UL 489/489ASKU #2329827Part Number #5SJ4250-7HG41UNSPSC39121601UPC00754554939544
