Brand: Siemens
5SL6110-7

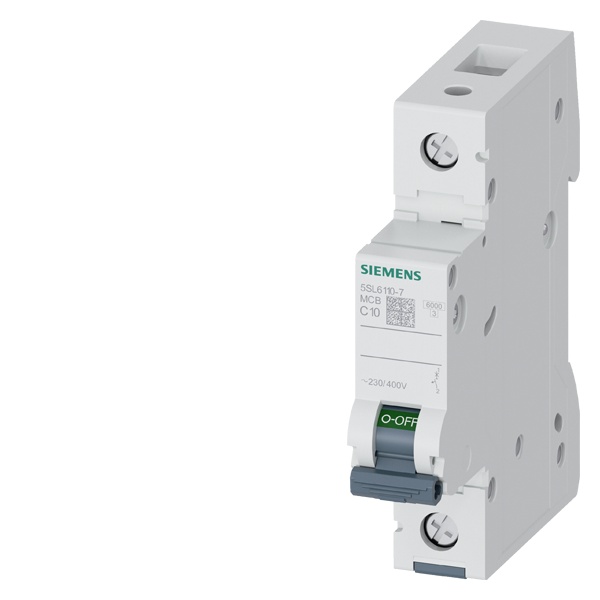

Siemens 5SL6110-7 Sentron Miniature Circuit Breaker
Part Number # 5SL6110-7
SKU # 2289203
$29.87 / Each
Typical price:$102.00 / Each
Siemens 5SL6110-7 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SL6110-7 |
| SKU #: | 2289203 |
| Actuator Type: | Handle |
| Amperage Rating: | 10, 10 A |
| Dimensions: | 90 mm H x 18 mm W x 76 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50, 50 Hz |
| Interrupt Rating: | 6, 6 kA |
| Number of Poles: | 1 |
| Series: | 5SL |
| Temperature Rating (Degrees F): | -25 to 45, -25 to 45 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Support Protector |
| Connection type: | Screw |
| Country of origin: | RO |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122233 |
| UPC: | 00040892932768 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$29.87 / Each
Typical price:$102.00 / Each
Quantity:
- Siemens Sentron Miniature Circuit Breaker, Support Protector, Series: 5SL, 230/400 V AC, 10 A, 50 Hz Frequency, 6 kA Interrupt, Thermal Magnetic Trip, 1 Pole, Handle Actuator, Screw Connection, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 18 mm W x 76 mm D Dimensions
5SL6110-7 Application
Supplementary Protection5SL6110-7 Item Features
- Effective touch protection when grasping and manually operating the latching slide with latch-down option
- Individual devices can be removed from the bus-mounted assembly without the use of tools
- Easy-to-mount busbar assembly
- Consistent bus mounting concept throughout the Siemens miniature circuit breaker range
- Class C trip
5SL6110-7 Standards
CEBEC Certified|VDE Approved|CE CertifiedSKU #2289203Part Number #5SL6110-7UNSPSC39122233UPC00040892932768
