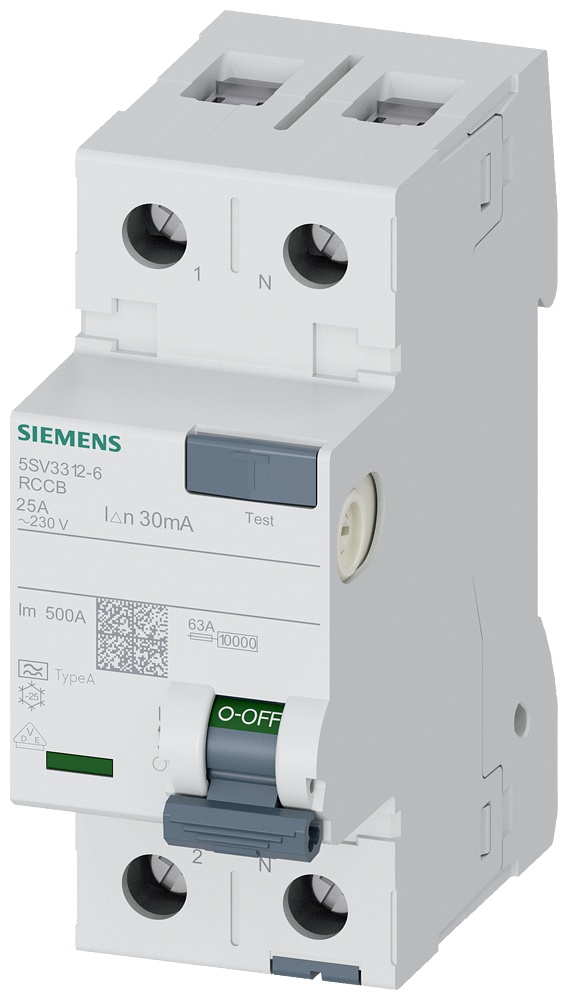

Siemens 5SV3312-6 Residual Current Circuit Breaker
Part Number # 5SV3312-6
SKU # 2360538
$172.66 / Each
Typical price:$623.00 / Each
Siemens 5SV3312-6 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SV3312-6 |
| SKU #: | 2360538 |
| Amperage Rating: | 25, 25 A |
| Dimensions: | 90 mm H x 36 mm W x 70 mm D |
| Enclosure Type: | IP20 |
| Frame: | A |
| Frequency Rating: | 50, 50 Hz |
| Interrupt Rating: | 0.5, 0.5 kA |
| Number of Poles: | 2 |
| Series: | 5SV3 |
| Temperature Rating (Degrees F): | -25 to 45, -25 to 45 deg C |
| Trip Range: | 30, 30 mA |
| Connection type: | Thread, Threaded |
| Country of origin: | DE |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122233 |
| UPC: | 00804766152702 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$172.66 / Each
Typical price:$623.00 / Each
Quantity:
Siemens 5SV3312-6 Residual Current Circuit Breaker
Brand: Siemens
Part Number: 5SV3312-6
Siemens Residual Current Circuit Breaker, Series: 5SV3, 230 VAC, 25 A, 50 Hz Frequency, 0.5 kA Interrupt, A Frame, 30 mA Trip, 2 Pole, Thread Connection, IP20 Enclosure, -25 to 45 deg C, 90 mm H x 36 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SV3312-6 (N) RES. CUR. CIRCUIT BREAKER, 25A, 1N+P NON-CANCELABLE, NON-RETURNABLE
Catalog Description: RCCB, 2-pole, type A, In 25 A, 30 mA, Un AC 230 V
5SV3312-6 Application
Residual Current Protective Device Applications5SV3312-6 Standards
CCC Certified|VDE Approved|CE CertifiedSKU #2360538Part Number #5SV3312-6UNSPSC39122233UPC00804766152702
