Part Number # 6RA80816GV620AA0
SKU # 2462336
6RA80816GV620AA0
Siemens 6RA80816GV620AA0
Part Number # 6RA80816GV620AA0
SKU # 2462336
$15155.59 / Each
Typical price:$24671.89 / Each
Siemens 6RA80816GV620AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 6RA80816GV620AA0 |
| SKU #: | 2462336 |
| Amperage Rating: | 332/400 A |
| Type: | 4-Quad Forced Ventilated |
| Depth: | 275 mm |
| Height: | 625 mm |
| UNSPSC: | 39122002 |
| UPC: | 00662643931839 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$15155.59 / Each
Typical price:$24671.89 / Each
Quantity:
- Siemens SINAMICS DCM DC Converter, 4-Quad Forced Ventilated, 575 VAC, 600 VDC, 332/400 A, 3 ph, 268 mm Width, 275 mm Depth, 625 mm Height, IP00 Enclosure, Digital Display
6RA80816GV620AA0 Application
Multi-Motor Drives, Rolling Mills, Wire Drawing Machines, Extruders, Kneaders, Presses, Elevators, Cranes, Cableways, Lifts, Mine Hoists, Test Stand Drives, Cross Cutters and Shears6RA80816GV620AA0 Item Features
- Variance of the control units
- Field power supply in line with requirements
- Electronics power supply for connection to 24 VDC
- Power section isolated with respect to ground
- Free function blocks and drive control chart
- Expandable functionality using SINAMICS components
- 1-phase connection is possible
- Coated PCBs and nickel plated copper busbars
- Wide temperature range
- 4-quadrant units - the armature is supplied via 2 fully controlled 3-phase bridges connected in a circulating current-free inverse-parallel configuration ((B6)A(B6)C)
- 332 A at 575 VAC input
- 400 A at 600 VDC output
- Thyristor module
6RA80816GV620AA0 Standards
WEEE 2012/19/EU|REACH Article 33|DIN EN 60529|Class I, Class III EN 61800-5-1SKU #2462336Part Number #6RA80816GV620AA0UNSPSC39122002UPC00662643931839

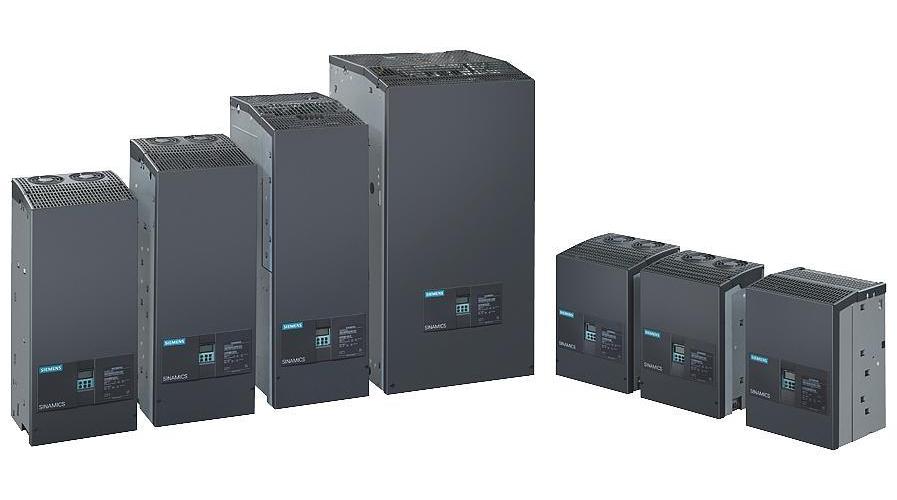

Image provided may only be a representation of final product and may include optional equipment
