Part Number # 7PV15131AQ30
SKU # 2408119
Image provided may only be a representation of
final product and may include optional equipment
7PV15131AQ30

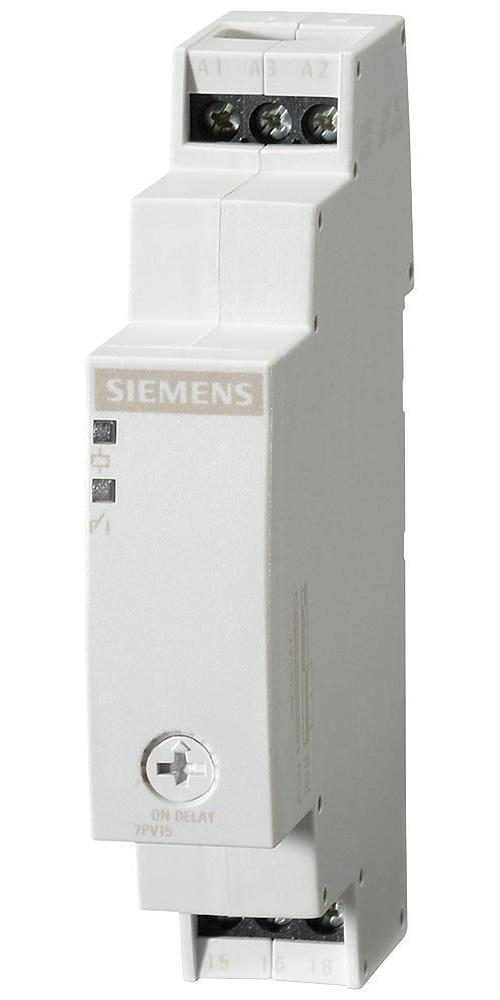

Siemens 7PV15131AQ30 Time Relay
Part Number # 7PV15131AQ30
SKU # 2408119
Siemens 7PV15131AQ30 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 7PV15131AQ30 |
| SKU #: | 2408119 |
| Amperage Rating: | 3 A |
| Coil Voltage: | 24/110 V AC, 24 V DC, 24/110 VAC, 24 VDC |
| Contact Form: | 1CO, 1CO 1 Form C |
| Dimensions: | 17.5 mm W x 66.7 mm D x 90 mm H |
| Display Type: | LED |
| Electrical Connections: | Screw Terminal |
| Enclosure Type: | IP20 |
| Operation Mode: | ON-Delay |
| Time Setting: | 5 to 100 s |
| Type: | Electronic |
| Country of origin: | CZ |
| Mounting type: | Snap-On/DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122329 |
| UPC: | 00040892552713 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 7PV15131AQ30 Time Relay
Brand: Siemens
Part Number: 7PV15131AQ30
Siemens Time Relay, Electronic, Operation Mode: On-Delay, 3 A, 1CO Contact Form, 5 to 100 s Time Setting, 24/110 VAC, 24 VDC Coil, LED Display, Screw Terminal Electrical Connections, IP20 Enclosure, Snap-On/DIN Rail Mounting, 17.5 mm W x 66.7 mm D x 90 mm H Dimensions
Additional Description: SIEM-7PV15131AQ30 TIME RELAY, ON-DELAY,1C,AC24,127V,DC24V
Catalog Description: Time relay, on-delay, 1co, time range 5 s...100 s, AC 24,110 v and DC 24 V, with led
7PV15131AQ30 Item Features
- 1 A at 24 VDC, 0.22 A at 125 VDC and 0.1 A at 250 VDC operating current of auxiliary contacts at DC-13
- 3 A at 24/250 VAC operating current of auxiliary contacts as NO contact at AC-15
- 3 A at 24/250 VAC operating current of auxiliary contacts as NC contact at AC-15
- 3 A at 24/250 VAC operating current of auxiliary contacts at AC-15
7PV15131AQ30 Standards
BAA Compliant|CCC Compliant|CE EG-Konf|EAC Compliant|UL ListedSKU #2408119Part Number #7PV15131AQ30UNSPSC39122329UPC00040892552713
