Part Number # 87FUF60C
SKU # 2221932

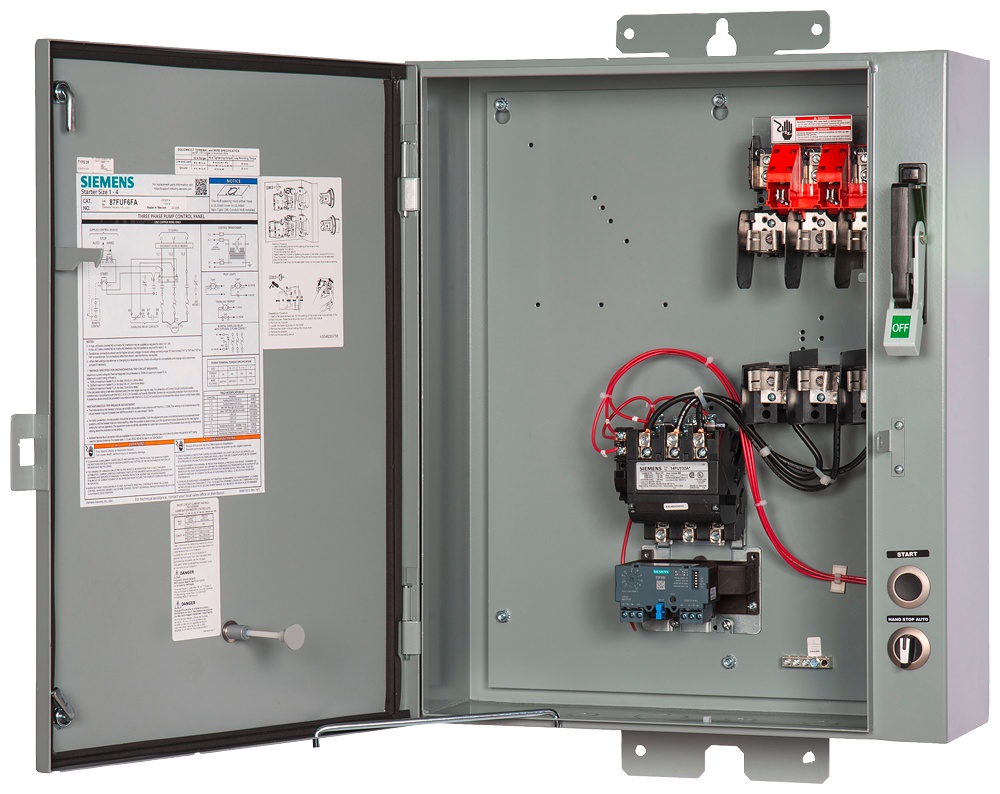

Image provided may only be a representation of
final product and may include optional equipment
87FUF60C
Siemens 87FUF60C Pump Control Panel
Part Number # 87FUF60C
SKU # 2221932
Siemens 87FUF60C Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 87FUF60C |
| SKU #: | 2221932 |
| Auxiliary Contact Rating: | 10 A at 600 VAC A600, 5 A at 600 VDC P600 |
| Coil Voltage: | 220 to 240/440 to 480, 220 to 240/440 to 480 V AC, 220 to 240/440 to 480 VAC |
| Control Type: | Pushbutton Start/Hand-Off-Auto Selector Switch, Start Pushbutton/Hand-Off-Auto Selector Switch |
| Dimensions: | 29 in H x 20 in W x 8 in D |
| Enclosure Type: | NEMA 3/12/3R, NEMA 3/3R, NEMA 3/3R/12 |
| Frequency Rating: | 60, 60 Hz |
| Motor Power: | 25, 25 hp |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -4 to 104, -4 to 104 deg F |
| Overload Relay: | Solid State, Solid-State |
| Phase: | 3 |
| Reset Type: | Automatic/Manual/Remote |
| Setting: | 13 to 52, 13 to 52 A |
| Size: | SZ 2 |
| Type: | B Frame Class 87 Full Voltage Standard Surface Mount Weatherproof |
| Connection type: | Box Lug Line Side/Screw Terminal Load Side |
| Country of origin: | US |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00662643536683 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 87FUF60C Pump Control Panel
Brand: Siemens
Part Number: 87FUF60C
Siemens Pump Control Panel, B Frame Class 87 Full Voltage Standard Surface Mount Weatherproof, 575/600 VAC, 60 Hz Frequency, 25 hp Motor, 220 to 240/440 to 480 VAC Coil, Setting: 13 to 52 A, Automatic/Manual/Remote Reset, 3 ph, Box Lug Line Side/Screw Terminal Load Side Connection, SZ 2 Size, Solid-State Overload Relay, 10 A at 600 VAC A600, 5 A at 600 VDC P600 Auxiliary, Start Pushbutton/Hand-Off-Auto Selector Switch Control, NEMA 3/3R/12 Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 d
Additional Description: SIEM-87FUF60C PUMPPANEL SZ2,13-52AMPS,N12/3R
Catalog Description: Pump control panel, Size 2, H2 Solid-state overload relay, OLR amp range 13-52A, 220-240/440-480VAC 60Hz coil, Standard type contactor, 100A fusible disconnect, 100A/600V fuse clip, HOA Sel Sw. ( ) ( ( & ) ( ) ) Start P.B., Enclosure NEMA type 3/3R, Weather proof outdoor use
87FUF60C Application
For irrigation, agriculture, petrochemical, wastewater treatment, wherever motor control is challenged by harsh elements and outdoor applications87FUF60C Item Features
- Fully gasketed NEMA 3R rainproof enclosures
- 100000 A interrupting capacity with class R fuses
- Heavy duty NEMA starters
- Heavy duty disconnect handle
- Bold pilot legend on front
- Generous accessory space
- 25 hp at 460/480/575/600 VAC maximum horsepower rating
87FUF60C Standards
UL Listed|UL File No. E185287SKU #2221932Part Number #87FUF60CUNSPSC39121521UPC00662643536683
