8WD4420-5BC

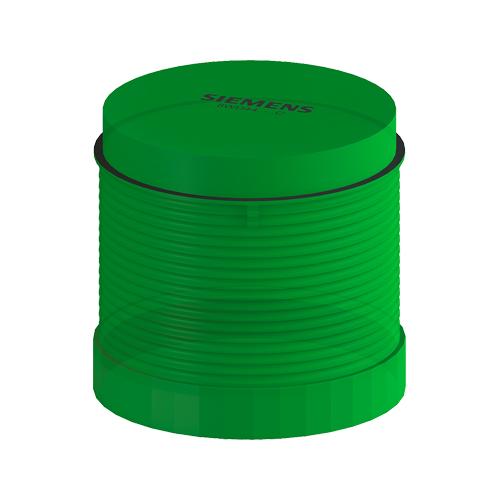

Siemens 8WD4420-5BC SIRIUS Flashlight Element
Part Number # 8WD4420-5BC
SKU # 2329322
Siemens 8WD4420-5BC Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 8WD4420-5BC |
| SKU #: | 2329322 |
| Amperage Rating: | 30, 30 mA |
| Dimensions: | 65.5 mm H x 70 mm W |
| Lamp Type: | LED |
| Light Output: | 0.6 to 1.36, 0.6 to 1.36 cd, 0.88 |
| Series: | 8WD44 |
| Temperature Rating (Degrees F): | -20 to 50, -20 to 50 deg C |
| Terminal Type: | Screw/Spring |
| Type: | Signal Column |
| Country of origin: | DE |
| Diameter: | 70, 70 mm |
| Material: | Polycarbonate, Thermoplastic |
| Mounting type: | Bayonet |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121534 |
| UPC: | 00040892555127 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 8WD4420-5BC SIRIUS Flashlight Element
Brand: Siemens
Part Number: 8WD4420-5BC
Siemens SIRIUS Flashlight Element, Signal Column, Series: 8WD44, 24 VAC/VDC, 30 mA, 70 mm Dia, LED Lamp, Green, Repeat Flashing Flash, 0.6 to 1.36 cd, 100000 hr Average Life, Specifications Met: UL Listed, EAC Certified, CE Certified, WEEE (2012/19/EU), Bayonet Mount, -20 to 50 deg C, Polycarbonate, 65.5 mm H x 70 mm W
Additional Description: SIEM-8WD4420-5BC SIG.COL.REPEATED-FLASH LED GREEN 24V
Catalog Description: Signal Column, 70mm Light Module Repeat Flash 24V UC Green Integrated LED
8WD4420-5BC Specifications
- Enhanced illumination
- Integrated degree of protection IP65
- Up to 5-elements can be mounted
8WD4420-5BC Standards
RCM CertifiedSKU #2329322Part Number #8WD4420-5BCUNSPSC39121534UPC00040892555127
