8WD44405BD

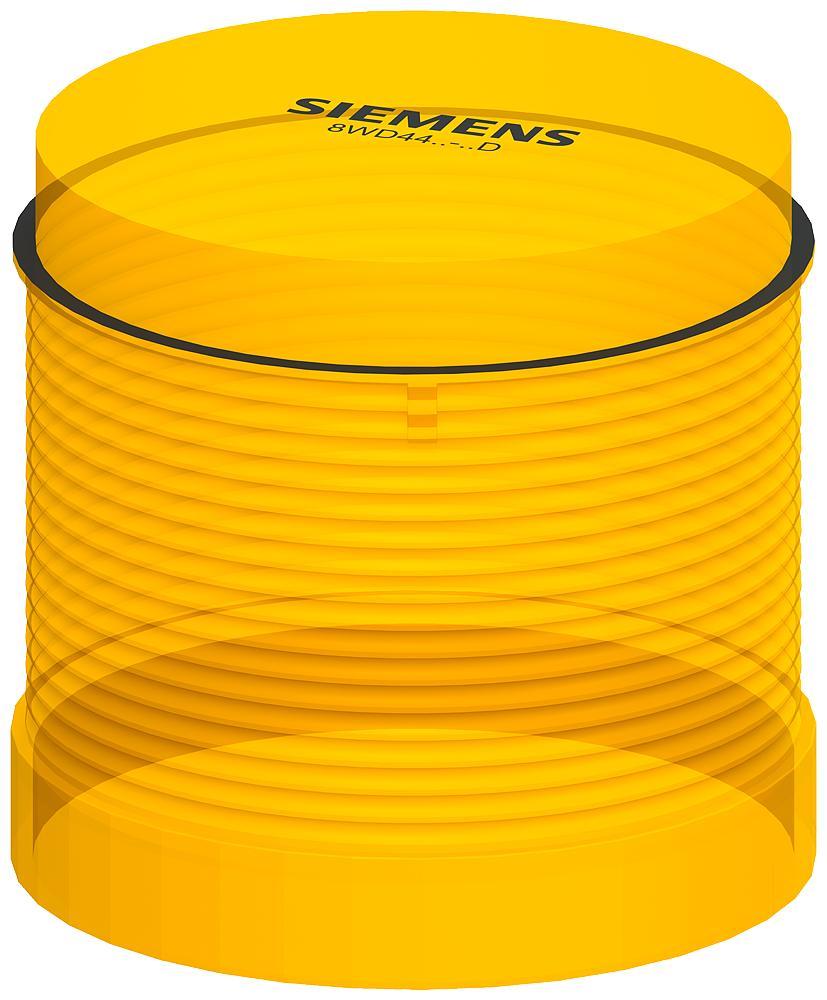

Siemens 8WD44405BD Sirius Flashlight Element
Part Number # 8WD44405BD
SKU # 2418781
$244.83 / Each
Typical price:$418.00 / Each
Siemens 8WD44405BD Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 8WD44405BD |
| SKU #: | 2418781 |
| Amperage Rating: | 25 mA |
| Dimensions: | 65.5 mm H x 70 mm W |
| Light Output: | 0.5 to 1.05 cd |
| Series: | 8WD44 |
| Temperature Rating (Degrees F): | -20 to 50 deg C |
| Terminal Type: | Screw/Spring |
| Type: | Signaling Column |
| Diameter: | 70 mm |
| Mounting type: | Bayonet |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121534 |
| UPC: | 00040892869781 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$244.83 / Each
Typical price:$418.00 / Each
Quantity:
- Siemens SIRIUS, 8WD44405BD, Flashlight Element, Signaling Column, Series: 8WD44, 115 V AC, 25 mA, 70 mm Diameter, LED Lamp, Amber, Repeat Flashing, 0.5 to 1.05 cd Light Output, 100000 hr Average Life, Specifications Met: UL Listed, EAC Certified, CE Certified, WEEE (2012/19/EU), Bayonet Mounting, Screw/Spring Terminal, -20 to 50 deg C, Polycarbonate, 65.5 mm H x 70 mm W Dimensions
8WD44405BD Application
Manufacturing Plant, Injection Molding Machine, Conveyor, Assembly System for Electronic Component and Signaling Column Applications8WD44405BD Item Features
- Enhanced illumination
- Integrated degree of protection IP65
- Up to 5-elements can be mounted
- https://www.youtube.com/watch?v=y_qB1VuTgj8
8WD44405BD Standards
DIN EN 81346-2|UL Listed|CSA Certified|EAC Approved|C-Tick|RoHS CompliantSKU #2418781Part Number #8WD44405BDUNSPSC39121534UPC00040892869781
Image provided may only be a representation of final product and may include optional equipment
