Part Number # DTNF224
SKU # 2381415
DTNF224

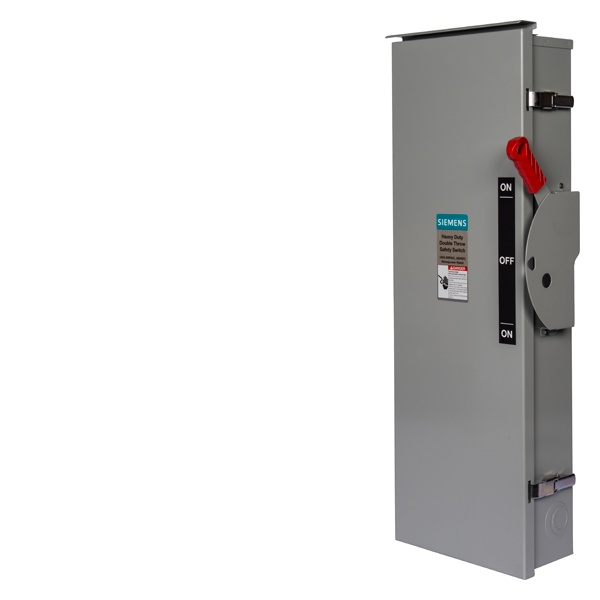

Siemens DTNF224 Safety Switch
Part Number # DTNF224
SKU # 2381415
Siemens DTNF224 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | DTNF224 |
| SKU #: | 2381415 |
| Amperage Rating: | 200 A |
| Contact Form: | 2 Form C DPDT, DPDT |
| Dimensions: | 36 in H x 19.12 in W x 6.42 in D |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 60 Hz |
| Horsepower: | 60 hp |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Short Circuit Current Rating (kA): | 200 kA |
| Temperature Rating (Degrees F): | -29 to 85 deg C |
| Terminal Type: | Lug |
| Type: | Type VBII Double Throw Enclosed Heavy Duty Non-Fusible |
| Country of origin: | MX |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122205 |
| UPC: | 00783643454095 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens DTNF224 Safety Switch
Brand: Siemens
Part Number: DTNF224
Siemens Safety Switch, Type VBII Double Throw Enclosed Heavy Duty Non-Fusible, 240 VAC, 200 A, 60 hp, 60 Hz Frequency, 2 Pole, 3 Wires, 200 kA Short Circuit, DPDT Contact Form, Non-Insulated Insulation, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, 36 in H x 19.12 in W x 6.42 in D Dimensions, Steel
Additional Description: SIEM-DTNF224 DTSS NF 2P2W 240V 200A N1
Catalog Description: Siemens Low Voltage Circuit Protection Heavy Duty Safety Switches. Type ENCLOSED, SAFETY SWITCH Std UL V. Rating 240V A. Rating 200A Wattage 2W No. Of Poles 2PF. Rating 60Hz Action DOUBLE THROW Material STEEL Enclosure TYPE 1. 2-3 point mounting holes. O. Cycles 8000 O. Temperature (-20F-120F) AMBIENT TEMPERATURE Environmental Conditions INDOOR
DTNF224 Application
Indoor ApplicationsDTNF224 Item Features
- https://digitalcontentcenter.compas.siemens-info.com/SIE_VI_Safety_Switch.mp4
DTNF224 Standards
UL98SKU #2381415Part Number #DTNF224UNSPSC39122205UPC00783643454095
Image provided may only be a representation of final product and may include optional equipment
