Part Number # DTNF363S
SKU # 2358043
DTNF363S
Siemens DTNF363S Safety Switch
Part Number # DTNF363S
SKU # 2358043
Siemens DTNF363S Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | DTNF363S |
| SKU #: | 2358043 |
| Amperage Rating: | 100, 100 A |
| Contact Form: | 3 Form C 3PDT, TPDT |
| Dimensions: | 27.54 in H x 12.29 in W x 6.48 in D |
| Enclosure Type: | NEMA 4X |
| Frequency Rating: | 60, 60 Hz |
| Horsepower: | 100, 100 hp |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Temperature Rating (Degrees F): | -29 to 85, -29 to 85 deg C |
| Terminal Type: | Lug |
| Type: | Type VBII Double Throw Enclosed Heavy Duty Non-Fusible |
| Country of origin: | MX |
| Material: | 304 Stainless Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122205 |
| UPC: | 00783643454323 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens DTNF363S Safety Switch
Brand: Siemens
Part Number: DTNF363S
Siemens Safety Switch, Type VBII Double Throw Enclosed Heavy Duty Non-Fusible, 600 VAC, 100 A, 100 hp, 60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, TPDT Contact Form, Insulated Insulation, NEMA 4X Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, 27.54 in H x 12.29 in W x 6.48 in D Dimensions, 304 Stainless Steel
Additional Description: SIEM-DTNF363S DTSS NF 3P3W 600V 100A N4X
Catalog Description: Siemens Low Voltage Circuit Protection Heavy Duty Safety Switches. Type ENCLOSED, SAFETY SWITCH Std UL V. Rating 600V A. Rating 100A Wattage 3W No. Of Poles 3PF. Rating 60Hz Action DOUBLE THROW Material SS Enclosure TYPE 4X. 2-3 point mounting holes. Insulation YES O. Cycles 10000 O. Temperature (-20F-120F) AMBIENT TEMPERATURE Environmental Conditions INDUSTRIAL CORROSIVE RESISTANCE
DTNF363S Application
Industrial Corrosive Resistance ApplicationsDTNF363S Item Features
- https://digitalcontentcenter.compas.siemens-info.com/SIE_VI_Safety_Switch.mp4
DTNF363S Standards
UL98SKU #2358043Part Number #DTNF363SUNSPSC39122205UPC00783643454323

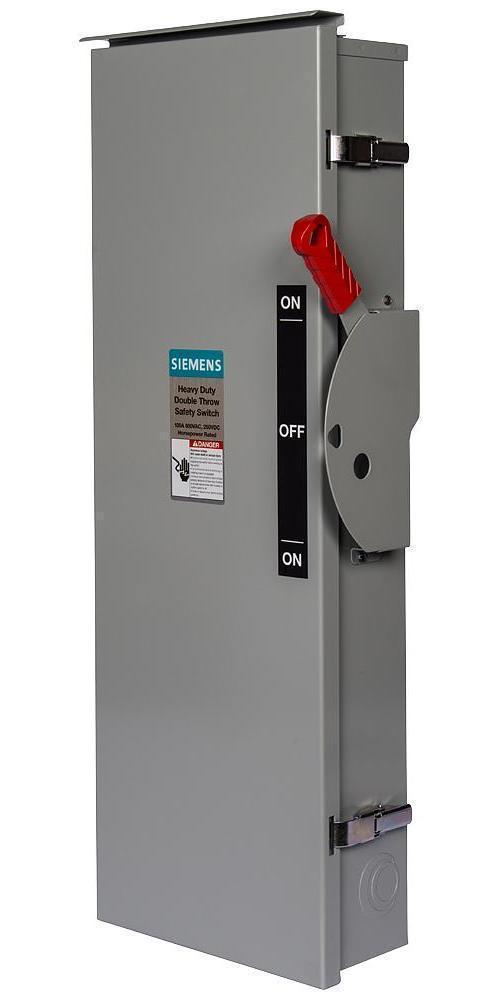

Image provided may only be a representation of final product and may include optional equipment
