Part Number # GNF322RA
SKU # 2362985
Image Disclaimers Message
GNF322RA

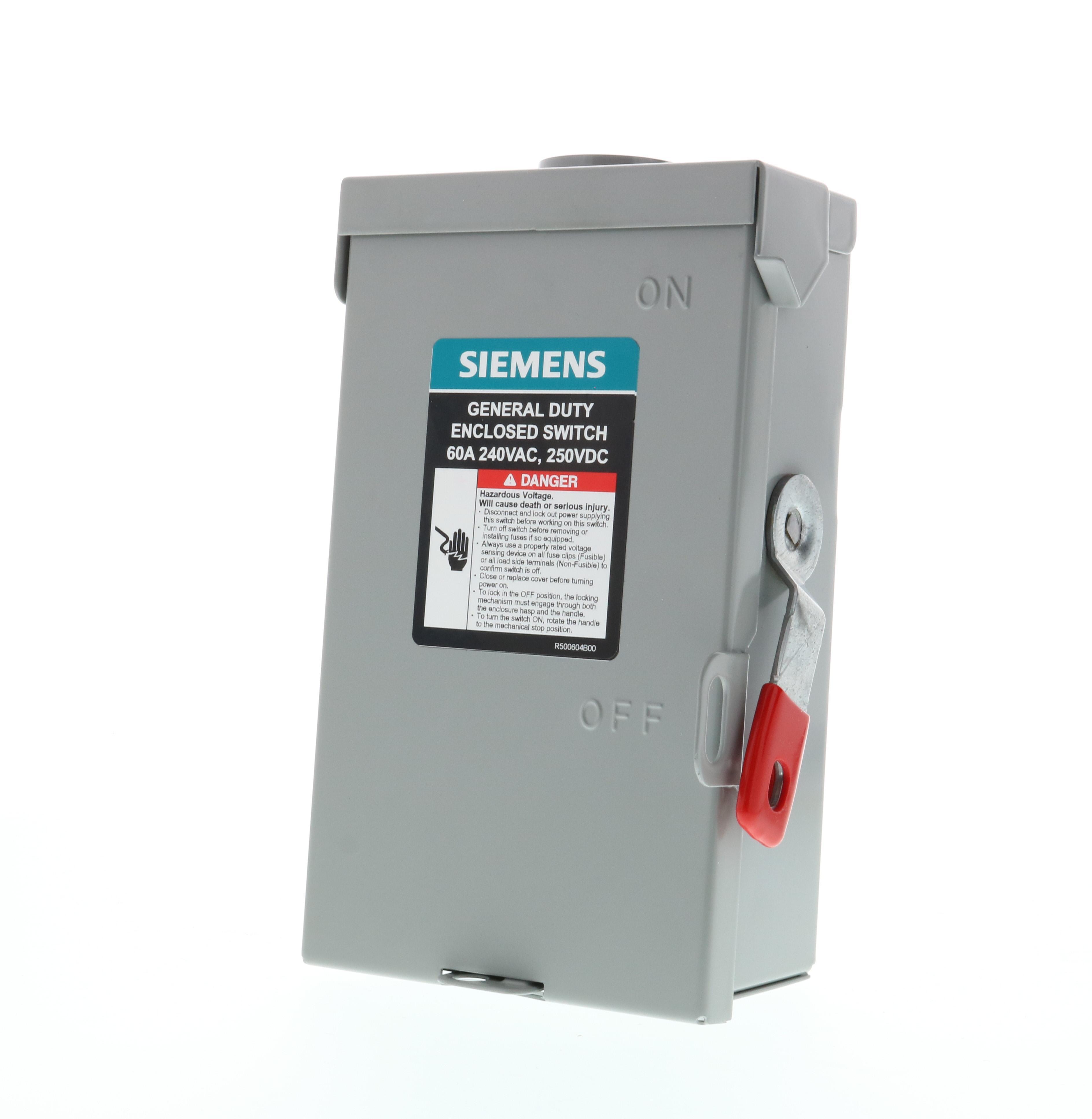

Siemens GNF322RA Safety Switch
Part Number # GNF322RA
SKU # 2362985
$175.51 / Each
Typical price:$972.00 / Each
Siemens GNF322RA Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | GNF322RA |
| SKU #: | 2362985 |
| Amperage Rating: | 60 A |
| Dimensions: | 8.56 in H x 5.44 in W x 2.75 in D |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 60, 60 Hz |
| Horsepower: | 10 hp, 15 hp |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Phase: | 01-Mar, 1/3, 3-Jan |
| Series: | A Series |
| Short Circuit Current Rating (kA): | 10/100, 10/100 kA |
| Temperature Rating (Degrees F): | -29 to 85, -29 to 85 deg C |
| Type: | Type VBII Enclosed General Duty Low Voltage Non-Fusible Single Throw |
| Country of origin: | MX |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122205 |
| UPC: | 00804766753305 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$175.51 / Each
Typical price:$972.00 / Each
Quantity:
- Siemens Safety Switch, Type VBII Enclosed General Duty Low Voltage Non-Fusible Single Throw, Series: A Series, 240 V AC, 60 A, 10 hp, 15 hp, 1/3 ph, 60 Hz Frequency, 3 Pole, 3 Wires, 10/100 kA Short Circuit, NEMA 3R Enclosure, Surface Mounting, -29 to 85 deg C, 8.56 in H x 5.44 in W x 2.75 in D Dimensions, Steel
GNF322RA Application
Outdoor ApplicationsGNF322RA Item Features
- Updated switch is an enhancement of legacy VBII design
- New compact sizes for improved space efficiency
- Visible blade, double break switching action
- Padlocking provisions to lock cover closed or to lock switch in the OFF position
- Rated 10 kA with class H fuses or circuit breaker, 100 kA with class R fuses
- 10 hp at 240 vac 1-phase 2-wire, 15 hp at 240 vac 3-phases 3-wire, 10 hp at 250 VDC
GNF322RA Standards
UL File No. E4776|UL 98|NEMA KS1-2001SKU #2362985Part Number #GNF322RAUNSPSC39122205UPC00804766753305
