HF362SS

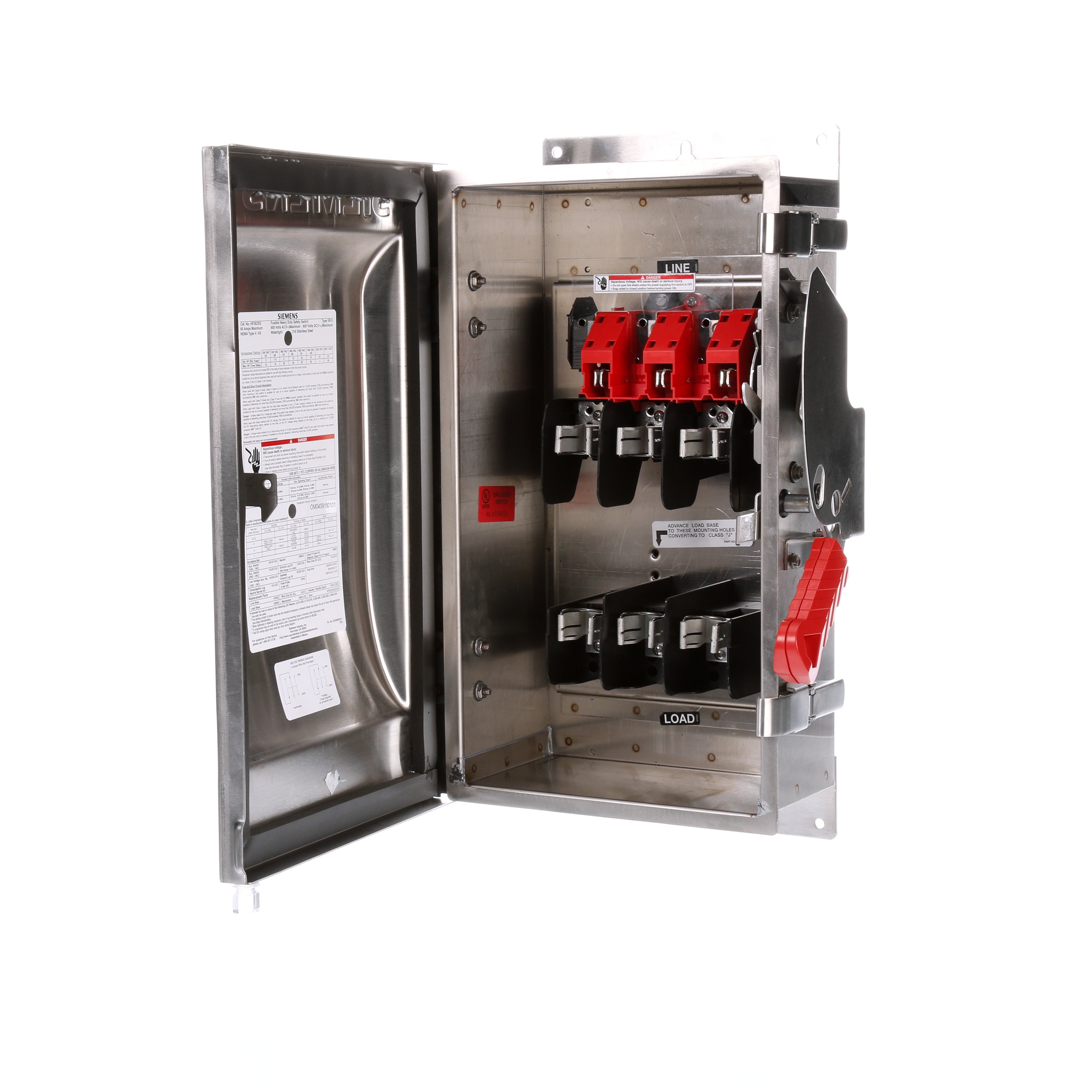

Siemens HF362SS Safety Switch
Part Number # HF362SS
SKU # 2262002
$2552.30 / Each
Typical price:$10448.00 / Each
Siemens HF362SS Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | HF362SS |
| SKU #: | 2262002 |
| Amperage Rating: | 60 A |
| Contact Form: | 3PST, TPST |
| Dimensions: | 19.31 in H x 9.94 in W x 10.46 in D |
| Enclosure Type: | NEMA 4X |
| Frequency Rating: | 60, 60 Hz |
| Horsepower: | 15, 15 hp |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Temperature Rating (Degrees F): | -29 to 85, -29 to 85 deg C |
| Terminal Type: | Lug |
| Type: | Type VBII Enclosed Fusible Heavy Duty Low Voltage Single Throw |
| Country of origin: | MX |
| Material: | 316 Stainless Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122205 |
| UPC: | 00040892169027 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2552.30 / Each
Typical price:$10448.00 / Each
Quantity:
- Siemens Safety Switch, Type VBII Enclosed Fusible Heavy Duty Low Voltage Single Throw, 600 V AC, 60 A, 15 hp, 60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, 3PST Contact Form, Insulated Insulation, NEMA 4X Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, 19.31 in H x 9.94 in W x 10.46 in D Dimensions, 316 Stainless Steel
HF362SS Application
Industrial Corrosive Resistance ApplicationsHF362SS Item Features
- Quick-make, quick break operating mechanism that ensures positive operation
- Visible blade, double break switching action
- Arc chutes dissipate heat and prolong switch life
- Highly visible red handle grip designed for hook stick operation
- Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking
- Center punch provided for field drilling to allow on padlocking
- Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps
- Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements
- Informative door labeling which includes replacement parts list
- Tangential knockouts through 600 A for easy conduit lineup
- Side hinged door that opens 180 deg for easier wiring
- Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
- Spring reinforced fuse clips that assure reliable contact for cool operation
- Door latch securely holds door closed and allows cover padlocking
- Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors
- Lugs are field convertible to copper body and to a wide variety of compression connectors
- Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
- Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
- Drawn cover for increased rigidity and resistance to abuse
- Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
HF362SS Standards
UL98SKU #2262002Part Number #HF362SSUNSPSC39122205UPC00040892169027
