Part Number # HF363NX
SKU # 2262003
Image provided may only be a representation of
final product and may include optional equipment
HF363NX

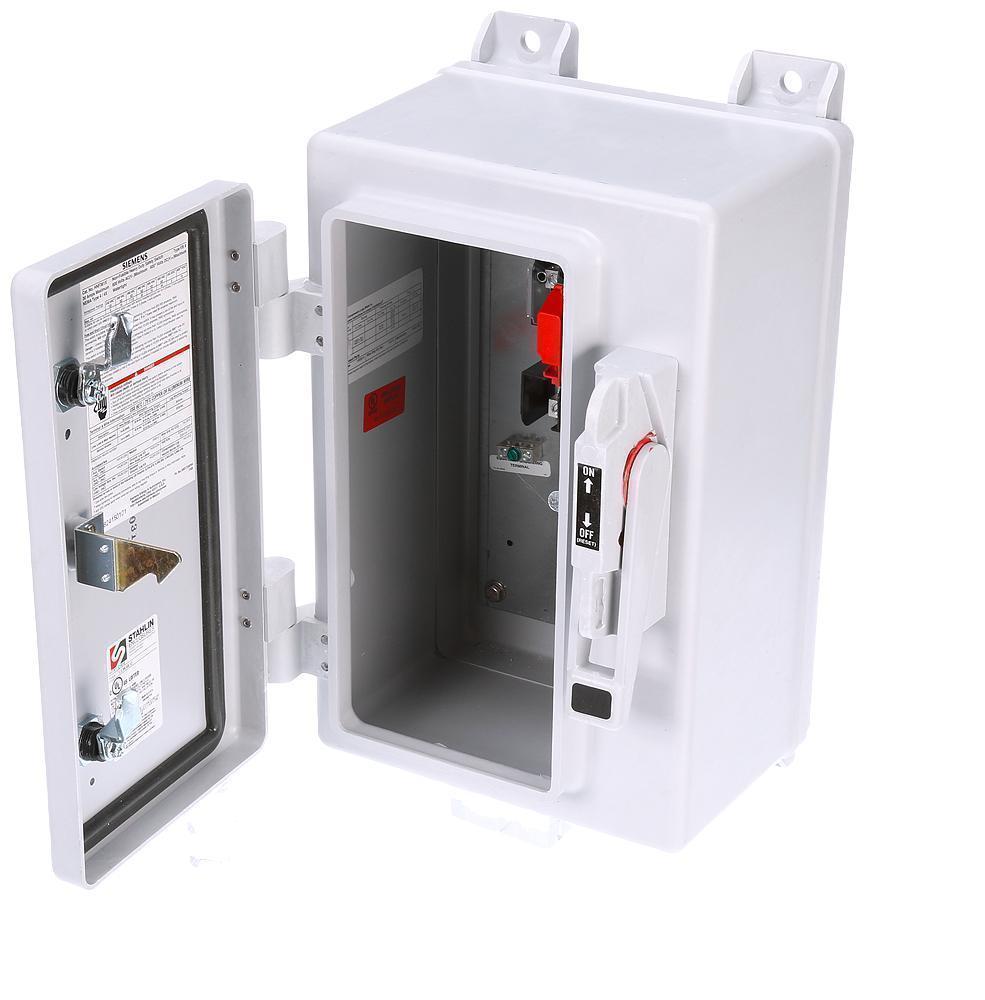

Siemens HF363NX Safety Switch
Part Number # HF363NX
SKU # 2262003
Siemens HF363NX Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | HF363NX |
| SKU #: | 2262003 |
| Amperage Rating: | 100 A |
| Contact Form: | ST |
| Enclosure Type: | NEMA 4X |
| Frequency Rating: | 60 Hz |
| Horsepower: | 30 hp, 75 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | -29 to 85 deg C |
| Terminal Type: | Lug |
| Type: | Type VBII Enclosed Fusible Heavy Duty Non-Metallic Single Throw |
| Country of origin: | MX |
| Material: | Fiberglass Reinforced Polyester |
| Mounting type: | Surface |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122205 |
| UPC: | 00783643451698 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens HF363NX Safety Switch
Brand: Siemens
Part Number: HF363NX
Siemens Safety Switch, Type VBII Enclosed Fusible Heavy Duty Non-Metallic Single Throw, 600 VAC, 100 A, 30 hp, 75 hp, 3 ph, 60 Hz Frequency, 3 Pole, 4 Wires, ST Contact Form, NEMA 4X Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, Fiberglass Reinforced Polyester
Additional Description: SIEM-HF363NX (N) HDSS FUS 3P4W 600V 100A N4X NM NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole 4-Wire and solid neutral Fused in a type 4/4X non mentalic enclosure. Rated 600VAC (100A).
HF363NX Item Features
- https://digitalcontentcenter.compas.siemens-info.com/SIE_VI_Safety_Switch.mp4
HF363NX Standards
UL98SKU #2262003Part Number #HF363NXUNSPSC39122205UPC00783643451698
