Part Number # HF461
SKU # 2374977
HF461

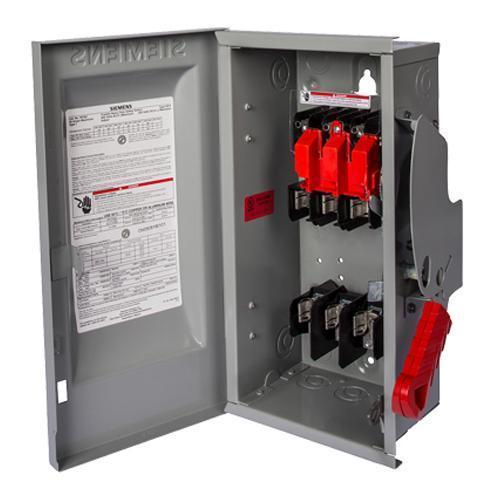

Siemens HF461 Safety Switch
Part Number # HF461
SKU # 2374977
Siemens HF461 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | HF461 |
| SKU #: | 2374977 |
| Dimensions: | 14.26 in H x 7.67 in W x 10.17 in D |
| UNSPSC: | 39122205 |
| UPC: | 00783643488052 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens HF461 Safety Switch
Brand: Siemens
Part Number: HF461
Siemens Safety Switch, Type VBII Enclosed Fusible Heavy Duty Low Voltage Single Throw, 600 VAC, 30 A, 7-1/2 hp, 3 ph, 60 Hz Frequency, 4 Pole, TPST Contact Form, Non-Insulated Insulation, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, 14.26 in H x 7.67 in W x 10.17 in D Dimensions, Steel
Additional Description: SIEM-HF461 HDSS FUS 4P4W 600V 30A N1
Catalog Description: Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 4-Pole 4-Fuse Fused in a type 1 enclosure (indoor). Rated 600VAC (30A).
HF461 Application
Indoor ApplicationsHF461 Item Features
- Quick-make, quick break operating mechanism that ensures positive operation
- Visible blade, double break switching action
- Arc chutes dissipate heat and prolong switch life
- Highly visible red handle grip designed for hook stick operation
- Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking
- Center punch provided for field drilling to allow on padlocking
- Handle can be padlocked in the off position with up to three padlocks with 5/16 in hasps
- Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements
- Informative door labeling which includes replacement parts list
- Tangential knockouts through 600 A for easy conduit lineup
- Side hinged door that opens 180 deg for easier wiring
- Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
- Spring reinforced fuse clips that assure reliable contact for cool operation
- Door latch securely holds door closed and allows cover padlocking
- Front removable mechanical lugs that are suitable for CU/AI 60 or 75 deg C conductors
- Lugs are field convertible to copper body and to a wide variety of compression connectors
- Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
- Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
- Drawn cover for increased rigidity and resistance to abuse
- Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
- https://digitalcontentcenter.compas.siemens-info.com/SIE_VI_Safety_Switch.mp4
HF461 Standards
UL98SKU #2374977Part Number #HF461UNSPSC39122205UPC00783643488052
Image provided may only be a representation of final product and may include optional equipment
