Part Number # HFC223NR
SKU # 2219871
HFC223NR

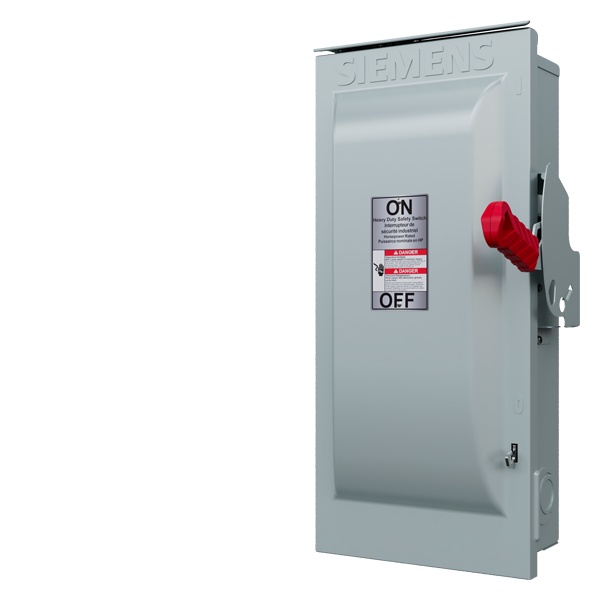

Siemens HFC223NR Safety Switch
Part Number # HFC223NR
SKU # 2219871
$520.74 / Each
Typical price:$3097.00 / Each
Siemens HFC223NR Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | HFC223NR |
| SKU #: | 2219871 |
| Actuator Type: | Lever |
| Amperage Rating: | 100 A |
| Contact Form: | DPST |
| Dimensions: | 21.95 in H x 11.97 in W x 10.17 in D |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 60 Hz |
| Horsepower: | 7-1/2 hp |
| Number of Poles: | 2 |
| Number of Wires: | 2 |
| Short Circuit Current Rating (kA): | 200 kA |
| Temperature Rating (Degrees F): | -29 to 85 deg C |
| Terminal Type: | Lug |
| Type: | Type VBII Enclosed Fusible Heavy Duty Low Voltage Single Throw |
| Country of origin: | MX |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122205 |
| UPC: | 00783643221529 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$520.74 / Each
Typical price:$3097.00 / Each
Quantity:
- Siemens, HFC223NR, Safety Switch, Type VBII Enclosed Fusible Heavy Duty Low Voltage Single Throw, 240 V AC, 100 A, 7-1/2 hp, 60 Hz Frequency, 2 Pole, 2 Wires, 200 kA Short Circuit, DPST Contact Form, Lever Actuator, Non-Insulated Insulation, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, 21.95 in H x 11.97 in W x 10.17 in D Dimensions, Steel
HFC223NR Application
Outdoor ApplicationsHFC223NR Item Features
- Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
- Lugs are field convertible to copper body and to a wide variety of compression connectors
- Tangential knockouts through 600 A for easy conduit lineup
- Visible blade, double break switching action
- Drawn cover for increased rigidity and resistance to abuse
- Side hinged door that opens 180 deg for easier wiring
- Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
- Arc chutes dissipate heat and prolong switch life
- Highly visible red handle grip designed for hook stick operation
- Quick-make, quick break operating mechanism that ensures positive operation
- Handle can be padlocked in the off position with up to three padlocks with 5/16 in hasps
- Door latch securely holds door closed and allows cover padlocking
- Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
- Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors
- Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
- Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements
- Spring reinforced fuse clips that assure reliable contact for cool operation
- Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking
- Informative door labeling which includes replacement parts list
- https://digitalcontentcenter.compas.siemens-info.com/SIE_VI_Safety_Switch.mp4
HFC223NR Standards
CSA Certified|UL98/CSASKU #2219871Part Number #HFC223NRUNSPSC39122205UPC00783643221529
Image provided may only be a representation of final product and may include optional equipment
