Part Number # HNF261R
SKU # 2460967
HNF261R

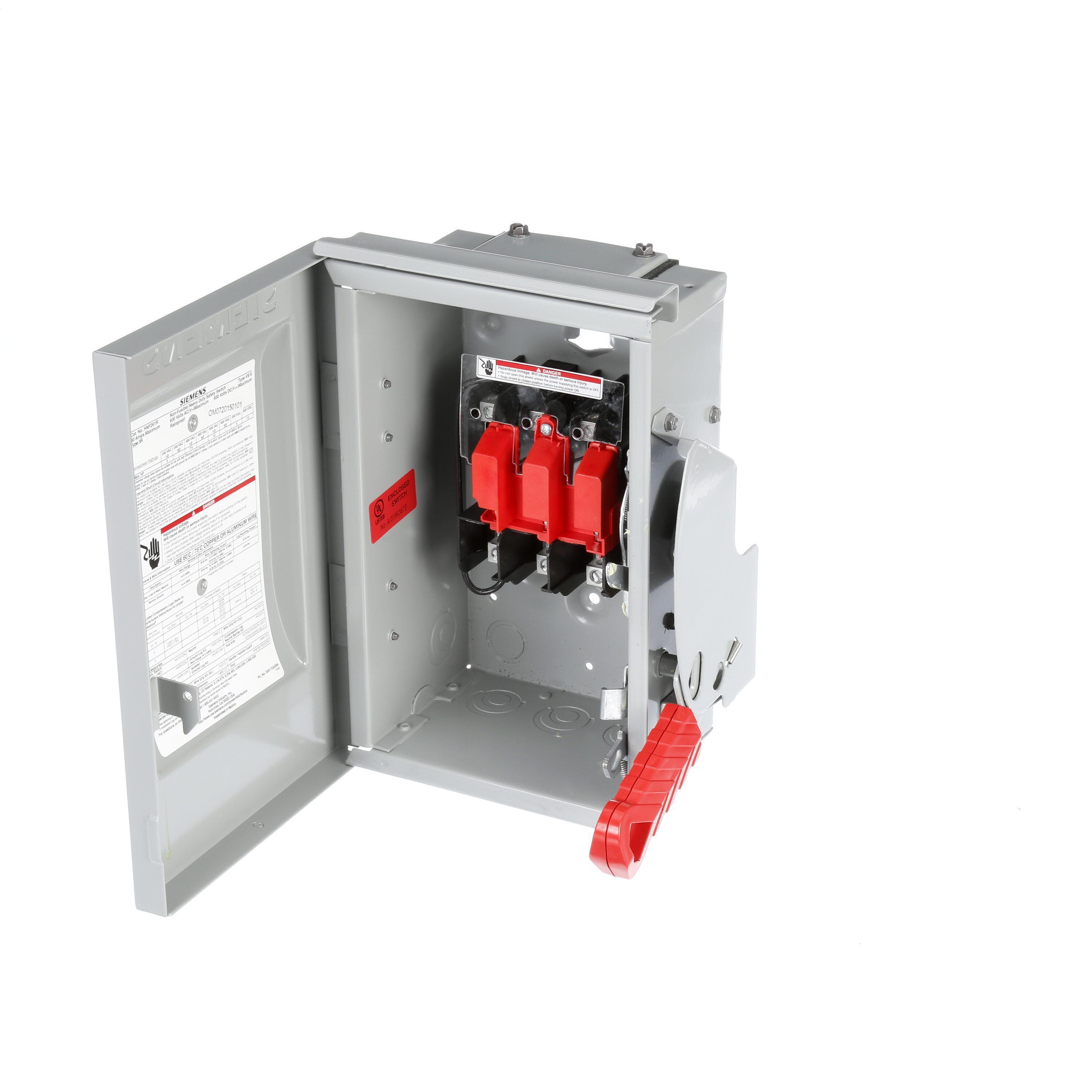

Siemens HNF261R
Part Number # HNF261R
SKU # 2460967
$237.93 / Each
Typical price:$1415.00 / Each
Siemens HNF261R Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | HNF261R |
| SKU #: | 2460967 |
| Dimensions: | 11.11 in H x 7.91 in W x 10.17 in D |
| UNSPSC: | 39122205 |
| UPC: | 00783643174061 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$237.93 / Each
Typical price:$1415.00 / Each
Quantity:
- Siemens Safety Switch, Type VBII Enclosed Heavy Duty Low Voltage Non-Fusible Single Throw, 600 V AC, 30 A, 10 hp, 1 ph, 60 Hz Frequency, 2 Pole, 2 Wires, 200 kA Short Circuit, DPST Contact Form, Non-Insulated Insulation, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, 11.11 in H x 7.91 in W x 10.17 in D Dimensions, Steel
HNF261R Application
Outdoor ApplicationsHNF261R Item Features
- Quick-make, quick break operating mechanism that ensures positive operation
- Visible blade, double break switching action
- Arc chutes dissipate heat and prolong switch life
- Highly visible red handle grip designed for hook stick operation
- Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking
- Center punch provided for field drilling to allow on padlocking
- Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps
- Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements
- Informative door labeling which includes replacement parts list
- Tangential knockouts through 600 A for easy conduit lineup
- Side hinged door that opens 180 deg for easier wiring
- Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
- Spring reinforced fuse clips that assure reliable contact for cool operation
- Door latch securely holds door closed and allows cover padlocking
- Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors
- Lugs are field convertible to copper body and to a wide variety of compression connectors
- Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
- Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
- Drawn cover for increased rigidity and resistance to abuse
- Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
HNF261R Standards
UL98SKU #2460967Part Number #HNF261RUNSPSC39122205UPC00783643174061
Image provided may only be a representation of final product and may include optional equipment
