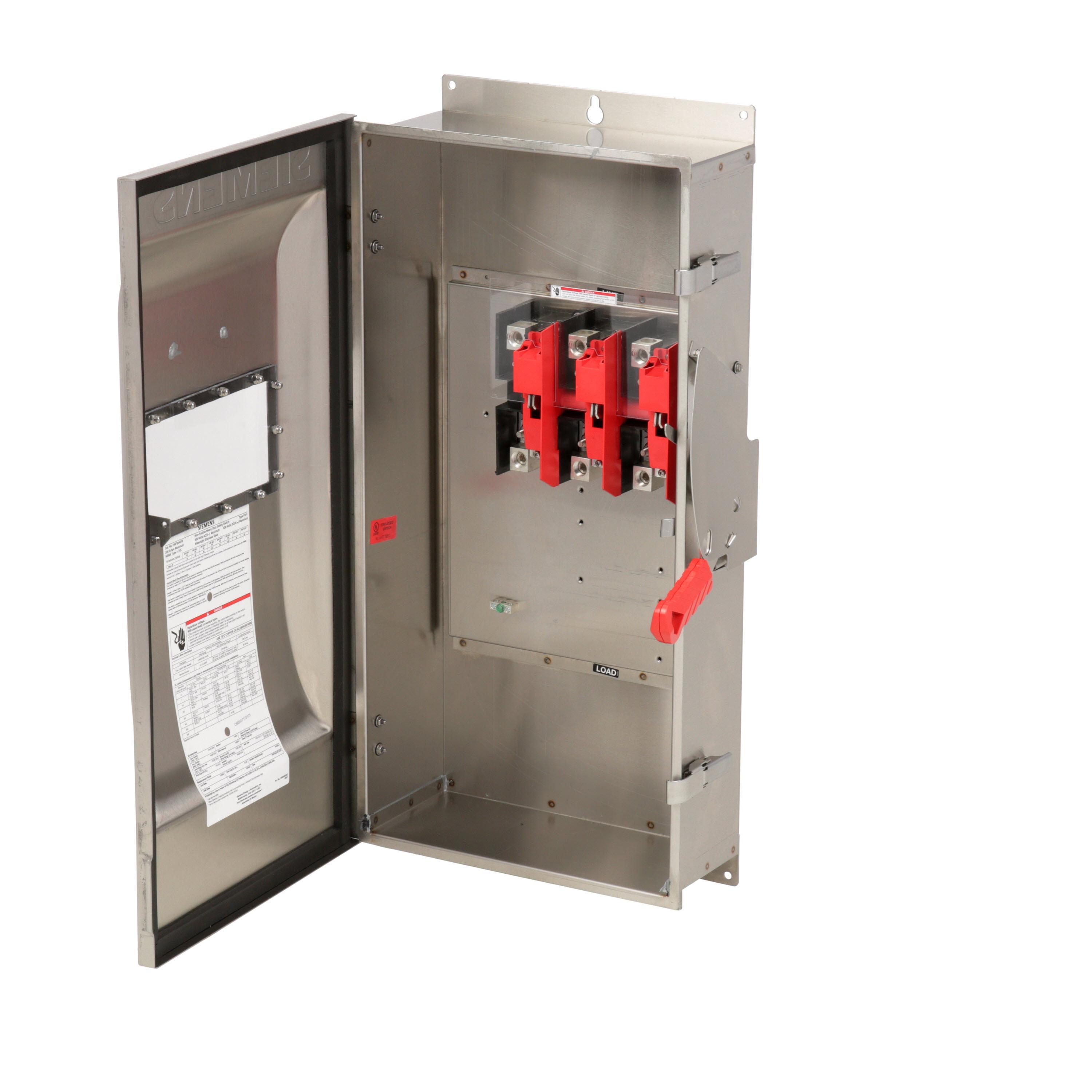

Siemens HNF364SW Safety Switch
Part Number # HNF364SW
SKU # 2185455
Siemens HNF364SW Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | HNF364SW |
| SKU #: | 2185455 |
| UNSPSC: | 39122205 |
| UPC: | 00783643221949 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens HNF364SW Safety Switch
Brand: Siemens
Part Number: HNF364SW
Siemens Safety Switch, Type VBII Enclosed Heavy Duty Low Voltage Non-Fusible Single Throw, 600 VAC, 200 A, 150 hp, 3 ph, 60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, TPST Contact Form, Insulated Insulation, NEMA 4X Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, 33 in H x 15.39 in W x 12.58 in D Dimensions, 304 Stainless Steel
Additional Description: SIEM-HNF364SW HDSS NF 3P3W 600V 200A N4X WIN 4XW/WINDOW
Catalog Description: Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole Non-Fused in a type 4/4X 304 grade Stainless Steel enclosure. Rated 600VAC (200A). Special features viewing window.
HNF364SW Application
Industrial Corrosive Resistance ApplicationsHNF364SW Item Features
- Quick-make, quick break operating mechanism that ensures positive operation
- Visible blade, double break switching action
- Arc chutes dissipate heat and prolong switch life
- Highly visible red handle grip designed for hook stick operation
- Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking
- Center punch provided for field drilling to allow on padlocking
- Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps
- Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements
- Informative door labeling which includes replacement parts list
- Tangential knockouts through 600 A for easy conduit lineup
- Side hinged door that opens 180 deg for easier wiring
- Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
- Spring reinforced fuse clips that assure reliable contact for cool operation
- Door latch securely holds door closed and allows cover padlocking
- Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors
- Lugs are field convertible to copper body and to a wide variety of compression connectors
- Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
- Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
- Drawn cover for increased rigidity and resistance to abuse
- Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
HNF364SW Standards
UL98SKU #2185455Part Number #HNF364SWUNSPSC39122205UPC00783643221949
