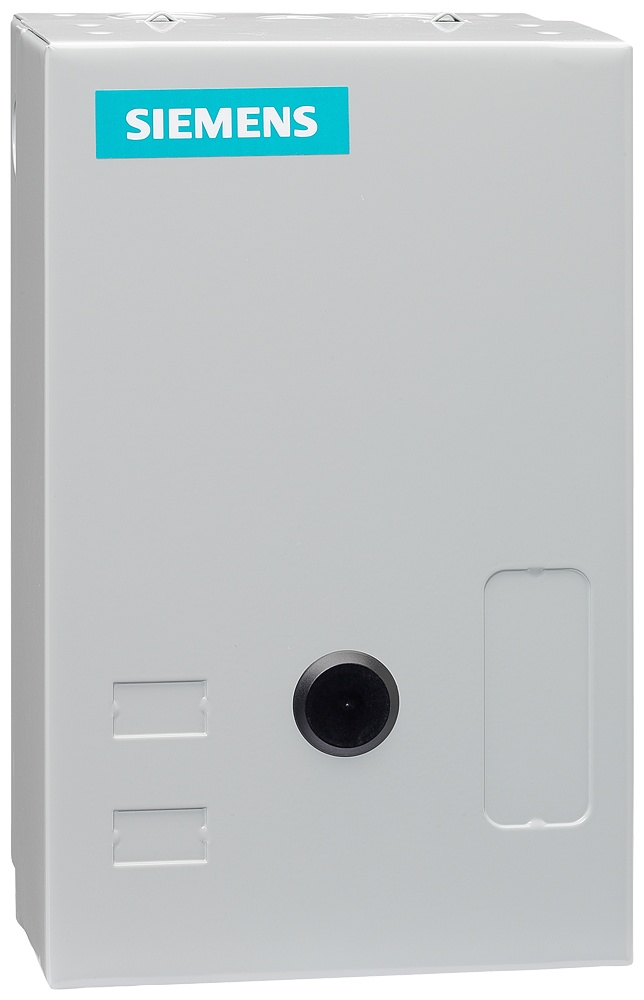

Siemens LEN01C003120B Lighting Contactor
Part Number # LEN01C003120B
SKU # 2257310
Siemens LEN01C003120B Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | LEN01C003120B |
| SKU #: | 2257310 |
| Coil Power Rating: | 87 VA Pickup, 9.4 VA Holding |
| Coil Voltage: | 120, 120 VAC |
| Contact Configuration: | 0NC-3NO, 3NO, 3NO-0NC |
| Contact Rating: | 30 A at 277/480/347/600 VAC |
| Dimensions: | 11 in H x 7 in W x 5 in D |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 60, 60 Hz |
| Number of Auxiliary Contacts: | 4 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | 32 to 104, 32 to 104 deg F |
| Series: | B Series |
| Terminal Type: | Screw |
| Type: | Class LE Electrically Held |
| Country of origin: | MX |
| Mounting type: | Surface |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00040892861259 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens LEN01C003120B Lighting Contactor
Brand: Siemens
Part Number: LEN01C003120B
Siemens Lighting Contactor, Class LE Electrically Held, Series: B Series, 120 VAC Coil, 30 A Maximum Load Current, 87 VA Pickup, 9.4 VA Holding Coil, 3 Pole, 60 Hz Frequency, Non-Combination Contact, 3NO-0NC Contact Configuration, 4 Auxiliary Contacts, 30 A at 277/480/347/600 VAC Contact, Screw Terminal, NEMA 1 Enclosure, 10000000 Cycles Operating Cycles, 32 to 104 deg F Operating, Surface Mounting, 11 in H x 7 in W x 5 in D Dimensions
Additional Description: SIEM-LEN01C003120B CONTACTOR,LTG,EH,N1,30A,3NO,120V
Catalog Description: Electrically held lighting contactor, H2 0 N.C. / 3 N.O. Poles, 110VAC 50HZ/120VAC 60HZ coil, Non-combination type, (no disconnect device), Enclosure NEMA type1, Indoor general purpose use
LEN01C003120B Application
Schools, Hospitals, Office Buildings, Industrial Plants, Hotels, Shopping Centers, Airports, Stadiums, Resistive Heaters and Indoor General Purpose ApplicationsLEN01C003120B Item Features
- Used in applications where it is not critical that contacts remain closed if control power is lost
- Rated for tungsten lighting (incandescent filament), ballast lighting (fluorescent, HID, metal halide, mercury vapor, quartz halogen and sodium lamp), resistive and general use loads
- Contacts are rated up to 30 A at 600 VAC
- Most contactors have built-in auxiliary contacts for convenient 3-wire control
- Compact design allows for smaller panels and more wiring room
- Finger and back of hand safe terminals
- Full line of factory and field modifications
LEN01C003120B Standards
cULus ListedSKU #2257310Part Number #LEN01C003120BUNSPSC39121529UPC00040892861259
