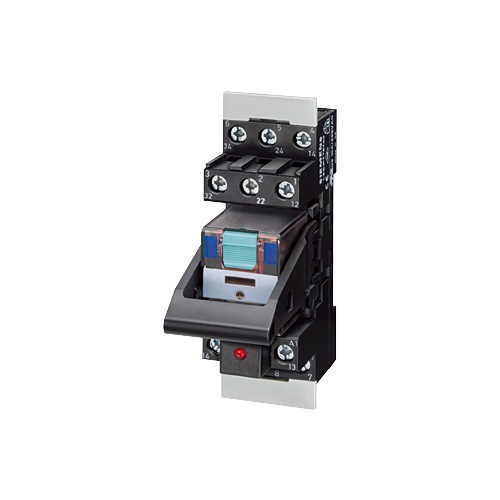

Siemens LZS:PT5A5L24 SIRIUS Plug-In Relay Complete Unit
Part Number # LZS:PT5A5L24
SKU # 2372493
LZS:PT5A5L24
Siemens LZS:PT5A5L24 SIRIUS Plug-In Relay Complete Unit
Part Number # LZS:PT5A5L24
SKU # 2372493
$207.00 / 5Each
Typical price:$315.00 / Each
Siemens LZS:PT5A5L24 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | LZS:PT5A5L24 |
| SKU #: | 2372493 |
| Amperage Rating: | 4 A |
| Base Type: | Plug-In |
| Contact Form: | 4CO 4 Form C |
| Contact Rating: | 6 A |
| Dimensions: | 72 mm H x 28 mm W x 74 mm D |
| Display Type: | LED |
| Number of Poles: | 11/14 |
| Series: | LZS |
| Mounting type: | Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122326 |
| UPC: | 00754554948782 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$207.00 / 5Each
Typical price:$315.00 / Each
Quantity:
- Siemens, LZS:PT5A5L24, Plug-In Relay, Compact, Series: LZS, 4 A, 4 W Power, 24 V DC Coil, 4CO 4 Form C Contact Form, 6 A Contact, Plug-In Base, 11/14 Pole, Snap-On Mounting, Screw Terminal, LED Display, IP20 Enclosure, 72 mm H x 28 mm W x 74 mm D Dimensions
LZS:PT5A5L24 Specifications
- Control with solid-state output
- The relays are plugged into the base and this is snapped onto a TH 35 standard mounting rail according to IEC 60715
- The terminals for the contacts and the terminals for the coil are arranged on separate levels
- For protective separation, transfer of the voltage of one circuit to another circuit is prevented to a suitable degree of safety requirements and tests are described in IEC 60947-1
- 4 A at 250 VAC AC-15, 4 A at 24 VDC DC-13 contact rating
LZS:PT5A5L24 Includes
Standard Plug-In Base, LED Module, Fixing/Ejection Brackets and LabelsLZS:PT5A5L24 Item Features
- Control with solid-state output
- For protective separation, transfer of the voltage of one circuit to another circuit is prevented to a suitable degree of safety requirements and tests are described in IEC 60947-1
- 4 A at 250 VAC AC-15, 4 A at 24 VDC DC-13 contact rating
- The terminals for the contacts and the terminals for the coil are arranged on separate levels
- The relays are plugged into the base and this is snapped onto a TH 35 standard mounting rail according to IEC 60715
- https://www.youtube.com/watch?v=o2ecFoE5yAM|https://www.youtube.com/watch?v=n2BTIVwfXII
LZS:PT5A5L24 Standards
EAC Certified|DIN 40719|IEC 204-2|IEC 750|DIN EN 61346-2|WEEE (2012/19/EU)|EAC Approved|VDE Approved|RoHS Compliant|WEEE CompliantSKU #2372493Part Number #LZS:PT5A5L24UNSPSC39122326UPC00754554948782
Image provided may only be a representation of final product and may include optional equipment
