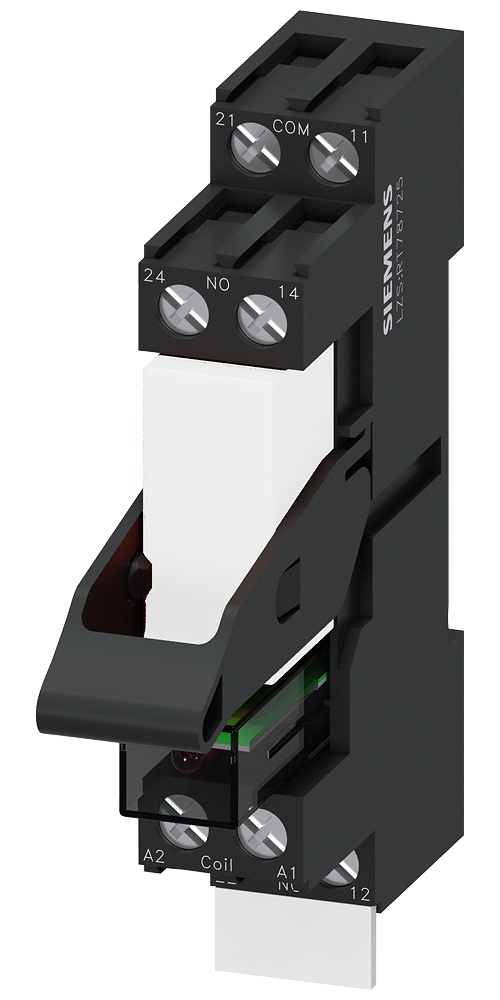

Siemens LZS:RT3A4L24 SIRIUS Plug-In Relay Complete Unit
Part Number # LZS:RT3A4L24
SKU # 2374978
LZS:RT3A4L24
Siemens LZS:RT3A4L24 SIRIUS Plug-In Relay Complete Unit
Part Number # LZS:RT3A4L24
SKU # 2374978
Siemens LZS:RT3A4L24 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | LZS:RT3A4L24 |
| SKU #: | 2374978 |
| Base Type: | Plug-In |
| Contact Rating: | 3 A at 230 V AC |
| Dimensions: | 71 mm H x 15.5 mm W x 78 mm D |
| Series: | LZS |
| Type: | Compact Standard |
| UNSPSC: | 39122326 |
| UPC: | 00754554942865 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens LZS:RT3A4L24 SIRIUS Plug-In Relay Complete Unit
Brand: Siemens
Part Number: LZS:RT3A4L24
Siemens General Purpose Relay, Series: LZS, 1 W Power, 50/60 Hz Frequency, 24 V DC Coil, 1CO 1 Form C Contact Form, 3 A at 230 VAC Contact, 1 Pole, Plug-In Mounting, Screw Terminal, IP50 Enclosure, -40 to 70 deg C, 71 mm H x 15.5 mm W x 78 mm D Dimensions
Additional Description: SIEM-LZS:RT3A4L24 PLUG-IN RELAY,24VDC, 1 CO,RED LED
Catalog Description: Plug-in relay complete unit 1 w, 24 V DC led module red standard plug-in socketscrew terminal
LZS:RT3A4L24 Includes
Standard Plug-In Base, LED Module, Fixing/Ejection Brackets and LabelsLZS:RT3A4L24 Item Features
- Control with solid-state output
- Red LED
- For protective separation, transfer of the voltage of one circuit to another circuit is prevented to a suitable degree of safety requirements and tests are described in IEC 60947-1
- 3 A at 230 VAC AC-15
- The terminals for the contacts and the terminals for the coil are arranged on separate levels
- 5 mm pinning
- The relays are plugged into the base and this is snapped onto a TH 35 standard mounting rail according to IEC 60715
- https://www.youtube.com/watch?v=o2ecFoE5yAM|https://www.youtube.com/watch?v=n2BTIVwfXII
LZS:RT3A4L24 Standards
EAC Certified|EAC Approved|VDE Approved|RoHS Compliant|WEEE CompliantSKU #2374978Part Number #LZS:RT3A4L24UNSPSC39122326UPC00754554942865
Image provided may only be a representation of final product and may include optional equipment
