Brand: Siemens

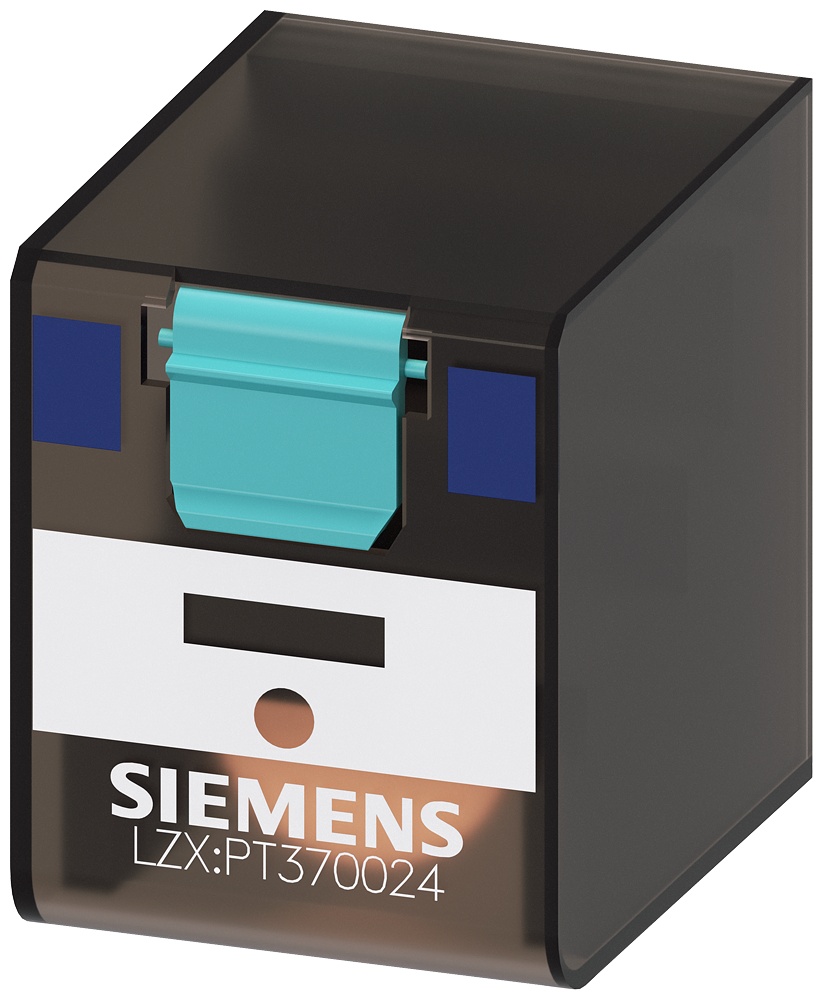

Siemens LZX:PT370024 General Purpose Relay
Image Disclaimers Message
Brand: Siemens
Siemens LZX:PT370024 General Purpose Relay
Brand: Siemens
Siemens LZX:PT370024 General Purpose Relay
Part #:LZX:PT370024
SKU #: 2185899
$17.67/EA
Key Features
Part #:LZX:PT370024
SKU #: 2185899
Brand: Siemens
Amperage Rating: 10, 10 A
Coil Voltage: 24, 24 VDC
Contact Form: 3CO
Contact Rating: 5 A at 230 VAC, 8 A at 24 VDC
Dimensions: 28 mm H x 22.5 mm W x 35 mm D
$17.67/EA
- 5 A at 230 VAC AC-15, 8 A at 24 VDC DC-13
Specifications
Brand: Siemens
Amperage Rating: 10, 10 A
Coil Voltage: 24, 24 VDC
Contact Form: 3CO
Contact Rating: 5 A at 230 VAC, 8 A at 24 VDC
Dimensions: 28 mm H x 22.5 mm W x 35 mm D
Enclosure Type: IP50
Frequency Rating: 50/60, 50/60 Hz
Number of Poles: 3
Series: LZS
Temperature Rating (Degrees F): -40 to 70, -40 to 70 deg C
Terminal Type: Screw
Country of origin: AT
Mounting type: Plug-In
Manufacturer Name: Siemens
UNSPSC: 39122326
UPC: 00754554942445
Siemens LZX:PT370024 General Purpose Relay
Siemens General Purpose Relay, Series: LZS, 10 A, 50/60 Hz Frequency, 24 VDC Coil, 3CO Contact Form, 5 A at 230 VAC, 8 A at 24 VDC Contact, 3 Pole, Plug-In Mounting, Screw Terminal, IP50 Enclosure, -40 to 70 deg C, 28 mm H x 22.5 mm W x 35 mm D Dimensions
Additional Description: SIEM-LZX:PT370024 RELAY, 3 CO,10A, 24VDC
Catalog Description: Plug-in relay, 3 changeover contacts 24 V DC, 10 a, width 22.5 mm for lzs sockets
Item Features
Item FeaturesCE Certified|EAC Certified
