Brand: Siemens
LZX:PT570024

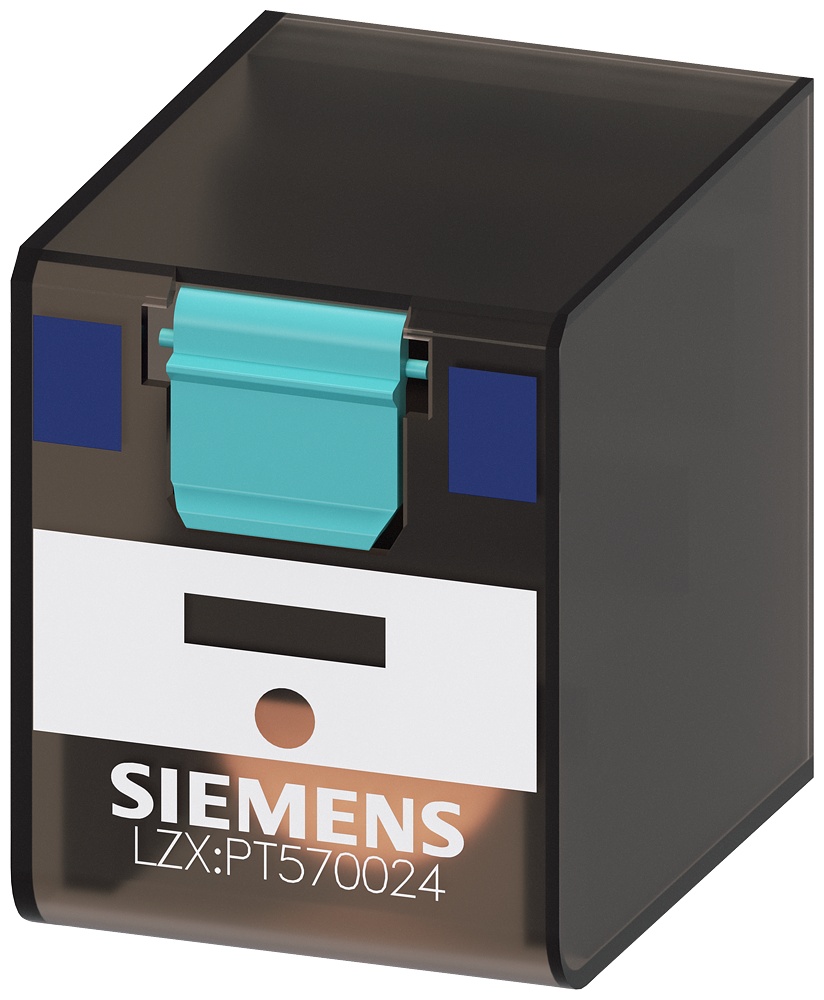

Siemens LZX:PT570024 General Purpose Relay
Part Number # LZX:PT570024
SKU # 2253031
$20.17 / Each
Typical price:$30.70 / Each
Siemens LZX:PT570024 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | LZX:PT570024 |
| SKU #: | 2253031 |
| Amperage Rating: | 6, 6 A |
| Base Type: | Plug-In |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Form: | 4CO, 4CO 4 Form C |
| Contact Rating: | 4 A at 230 VAC, 4 A at 24 VDC, 4 A at 250 V AC, 4 A at 24 V DC, 4 A at 250 VAC, 4 A at 24 VDC |
| Dimensions: | 28 mm H x 22.5 mm W x 35 mm D |
| Enclosure Type: | IP50 |
| Frequency Rating: | 50/60 |
| Number of Poles: | 4, 8/11/14, 8/11/2014 |
| Series: | LZS |
| Temperature Rating (Degrees F): | -40 to 70, -40 to 70 deg C |
| Terminal Type: | Screw |
| Country of origin: | AT |
| Mounting type: | Base, Plug-In |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122326 |
| UPC: | 00754554777825 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$20.17 / Each
Typical price:$30.70 / Each
Quantity:
- SIRIUS Plug-In Relay, 6 A, 741 mW, 24 V DC Coil, 4CO 4 Form C, 4 A at 250 VAC, 4 A at 24 V DC Contact, Plug-In Base, 8/11/14 Pole, Base Mount, IP50, -40 to 70 deg C, 28 mm H x 22.5 mm W x 35 mm D
LZX:PT570024 Application
For LZS socketsLZX:PT570024 Includes
Test Bracket and Mechanical Switch Position IndicatorLZX:PT570024 Item Features
- Without LED
- 4 A at 250 VAC AC-15, 4 A at 24 VDC DC-13 contact rating
- https://www.youtube.com/watch?v=o2ecFoE5yAM
LZX:PT570024 Standards
UL Recognized|CE Certified|EAC Approved|VDE Approved|Lloyds Registered|RoHS CompliantSKU #2253031Part Number #LZX:PT570024UNSPSC39122326UPC00754554777825
