Part Number # LZX:PT580024
SKU # 2437482
Image Disclaimers Message
LZX:PT580024

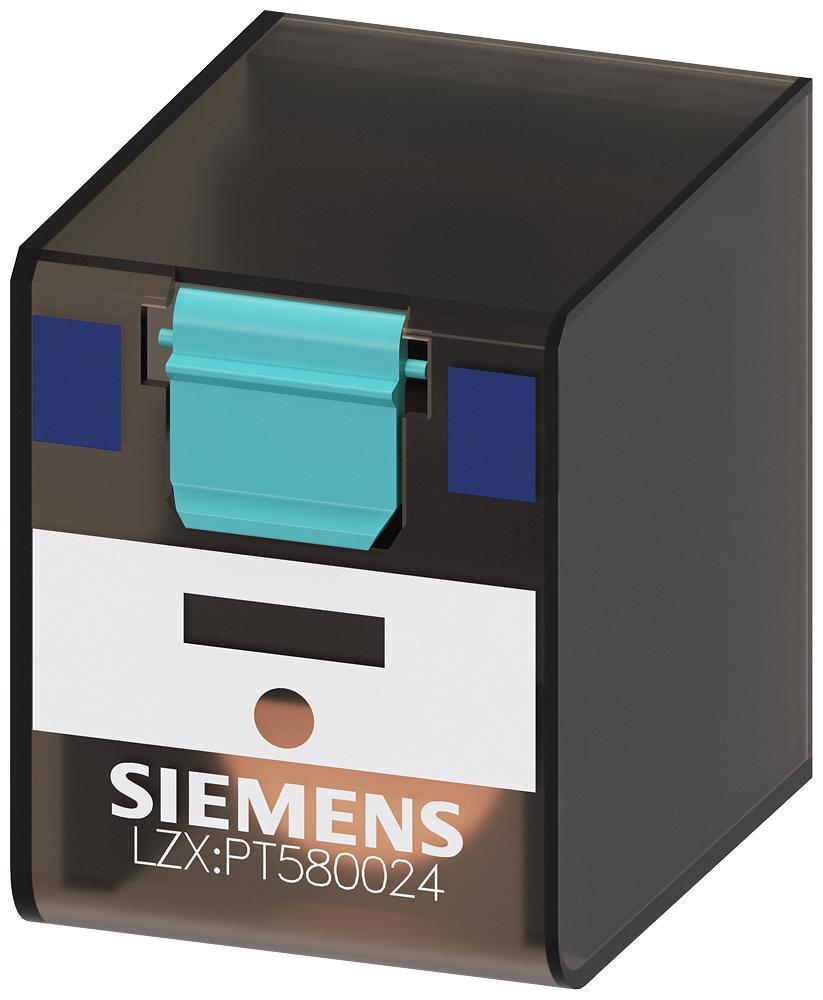

Siemens LZX:PT580024 General Purpose Relay, 4CO Contact, 24 VDC V Coil
Part Number # LZX:PT580024
SKU # 2437482
$25.89 / Each
Typical price:$39.40 / Each
Siemens LZX:PT580024 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | LZX:PT580024 |
| SKU #: | 2437482 |
| Coil Voltage: | 24 VDC |
| Contact Form: | 4CO, 4CO 4 Form C |
| Contact Rating: | 4 A at 230 VAC, 4 A at 24 VDC |
| Dimensions: | 28 mm H x 22.5 mm W x 35 mm D |
| Enclosure Type: | IP50 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 4 |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Screw |
| Country of origin: | AT |
| Mounting type: | Plug-In |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122326 |
| UPC: | 00754554927572 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$25.89 / Each
Typical price:$39.40 / Each
Quantity:
- Siemens General Purpose Relay, 50/60 Hz, 24 VDC Coil, 4CO 4 Form C, 4 A at 230 VAC, 4 A at 24 VDC Contact, 4 Pole, Plug-In Mount, Screw Terminal, IP50, -40 to 70 deg C, 28 mm H x 22.5 mm W x 35 mm D
LZX:PT580024 Item Features
- Hard gold plated
- 4 A at 230 VAC AC-15, 4 A at 24 VDC DC-13
LZX:PT580024 Standards
CE Certified|EAC StandardSKU #2437482Part Number #LZX:PT580024UNSPSC39122326UPC00754554927572
