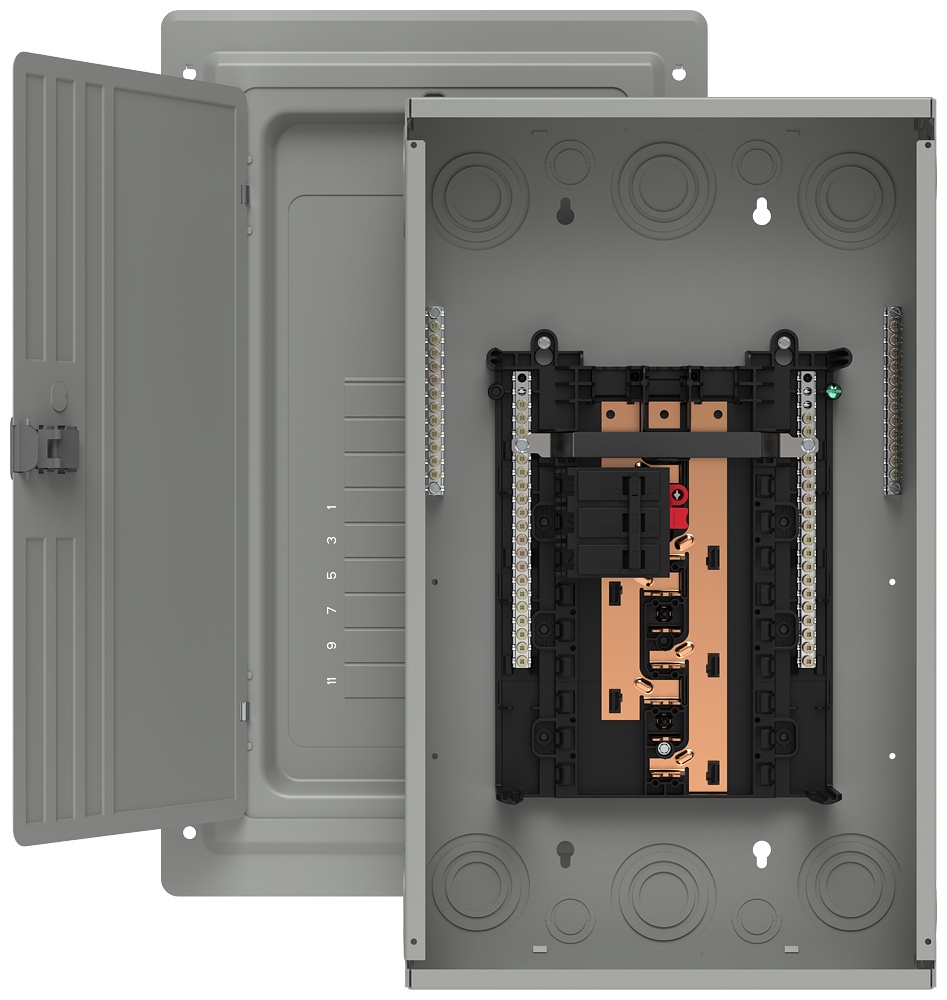

Siemens P1224B3100CU Three Phase Main Breaker Load Center
Siemens P1224B3100CU Three Phase Main Breaker Load Center
Part #:P1224B3100CU
SKU #: 2380196
Key Features
Part #:P1224B3100CU
SKU #: 2380196
Brand: Siemens
Amperage Rating: 100 A
Breaker Type: MB
Bus Rating: 100 A
Enclosure Box Size: 39 in H x 14.25 in W x 3.88 in D
Enclosure Type: NEMA 1
- Invertible for bottom feed application
- All devices are provided with 2 factory installed ground bars
- Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
- A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
- All devices convertible from main lug to main breaker and vice versa
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
- The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
- The visible neutral and grounds system aids in the insertion of conductors
- Dual neutrals on all configurations
- 100 A load regulation
- Tin plated copper busbar
- Indoor enclosure
- 1874.5 size
- 60/75 deg C temperature
- Combination mounting
Siemens P1224B3100CU Three Phase Main Breaker Load Center
Siemens Three Phase Main Breaker Load Center, Series: PL Series, 120/240 VAC, 100 A, 22 kA Interrupt, 24 Circuits, MB Breaker, 3/4-Wire Wiring Configuration, 100 A Bus Rating, 12 Spaces, NEMA 1 Enclosure, 39 in H x 14.25 in W x 3.88 in D Enclosure Box
Additional Description: SIEM-P1224B3100CU PL LC MB 12S/24C 3PH 100A N1
Catalog Description: SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. FACTORY INSTALLED MAIN BREAKER WITH 12 1-INCH SPACES ALLOWING MAX 24 CIRCUITS. 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (100A) 22KA INTERRUPT. SPECIAL FEATURES COPPER BUS, INTERCHANGEABLE MAIN, GRAY TRIM, NEMA TYPE1 ENCLOSURE FOR INDOOR USE.
