Part Number # P3030B3125CU
SKU # 2310821

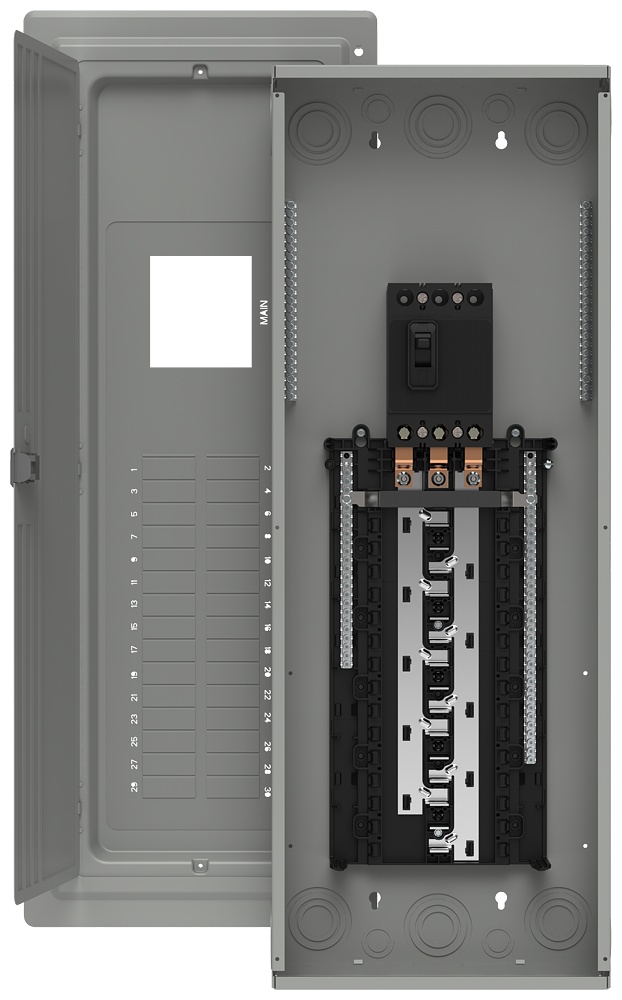

Image provided may only be a representation of
final product and may include optional equipment
P3030B3125CU
Siemens P3030B3125CU Three Phase Main Breaker Load Center
Part Number # P3030B3125CU
SKU # 2310821
Siemens P3030B3125CU Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | P3030B3125CU |
| SKU #: | 2310821 |
| Amperage Rating: | 125 A |
| Breaker Type: | MBK3125H |
| Bus Rating: | 125, 125 A |
| Enclosure Box Size: | 39 in H x 14.25 in W x 3.88 in D |
| Enclosure Type: | NEMA 1 |
| Interrupt Rating: | 22, 22 kA |
| Number of Circuits: | 30 |
| Number of Spaces: | 30 |
| Series: | PL Series |
| Wiring Configuration: | 3/4-Wire |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121101 |
| UPC: | 00040892914214 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens P3030B3125CU Three Phase Main Breaker Load Center
Brand: Siemens
Part Number: P3030B3125CU
Siemens Three Phase Main Breaker Load Center, Series: PL Series, 120/240/208 VAC, 125 A, 22 kA Interrupt, 30 Circuits, MBK3125H Breaker, 3/4-Wire Wiring Configuration, 125 A Bus Rating, 30 Spaces, NEMA 1 Enclosure, 39 in H x 14.25 in W x 3.88 in D Enclosure Box
Additional Description: SIEM-P3030B3125CU (N) PL LC MB 30S/30C 3PH 125A N1 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. FACTORY INSTALLED MAIN BREAKER WITH 30 1-INCH SPACES ALLOWING MAX 30 CIRCUITS. 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (125A) 22KA INTERRUPT. SPECIAL FEATURES COPPER BUS, INTERCHANGEABLE MAIN, GRAY TRIM, NEMA TYPE1 ENCLOSURE FOR INDOOR USE.
P3030B3125CU Application
Residential ApplicationsP3030B3125CU Item Features
- Invertible for bottom feed application
- All devices are provided with 2 factory installed ground bars
- Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
- A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
- All devices convertible from main lug to main breaker and vice versa
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
- The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
- The visible neutral and grounds system aids in the insertion of conductors
- Dual neutrals on all configurations
- May be installed on higher rated systems when protected by a circuit breaker with a higher AIR rating
- Tin plated copper busbar
- Indoor enclosure
- 30 feeders
- 60/75 deg C temperature
- Combination mounting
P3030B3125CU Standards
UL File No. E10703SKU #2310821Part Number #P3030B3125CUUNSPSC39121101UPC00040892914214
