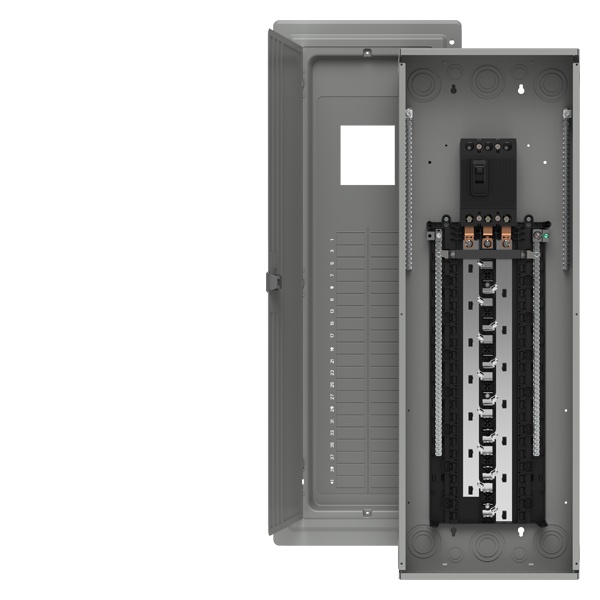

Image provided may only be a representation of
final product and may include optional equipment
P4260B3225CU
Siemens P4260B3225CU Three Phase Main Breaker Load Center
Part Number # P4260B3225CU
SKU # 2328454
$1297.71 / Each
Typical price:$1661.00 / Each
Siemens P4260B3225CU Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | P4260B3225CU |
| SKU #: | 2328454 |
| Amperage Rating: | 225, 225 A |
| Breaker Type: | MB |
| Bus Rating: | 225, 225 A |
| Enclosure Box Size: | 42 in H |
| Enclosure Type: | NEMA 1 |
| Interrupt Rating: | 22, 22 kA |
| Number of Circuits: | 60 |
| Number of Spaces: | 42 |
| Series: | PL Series |
| Wiring Configuration: | 3/4-Wire |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121101 |
| UPC: | 00040892919028 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1297.71 / Each
Typical price:$1661.00 / Each
Quantity:
- Siemens Three Phase Main Breaker Load Center, Series: PL Series, 120/240 V AC, 225 A, 22 kA Interrupt, 60 Circuits, MB Breaker, 3/4-Wire Wiring Configuration, 225 A Bus Rating, 42 Spaces, NEMA 1 Enclosure, 42 in H Enclosure Box
P4260B3225CU Application
Residential ApplicationsP4260B3225CU Item Features
- Invertible for bottom feed application
- All devices are provided with 2 factory installed ground bars
- Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
- A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
- All devices convertible from main lug to main breaker and vice versa
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
- The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
- The visible neutral and grounds system aids in the insertion of conductors
- Dual neutrals on all configurations
- 225 A load regulation
- Tin plated copper busbar
- Indoor enclosure
- 4002 size
- 60/75 deg C temperature
- Combination mounting
P4260B3225CU Standards
UL File No. E10703SKU #2328454Part Number #P4260B3225CUUNSPSC39121101UPC00040892919028
