PI2442L3200CUB
Siemens PI2442L3200CUB
Part Number # PI2442L3200CUB
SKU # 2460406
Siemens PI2442L3200CUB Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | PI2442L3200CUB |
| SKU #: | 2460406 |
| Dimensions: | 16.04 in H x 9.95 in W |
| Type: | 42-Circuit Low Voltage |
| UNSPSC: | 39121101 |
| UPC: | 00662643158557 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens PI2442L3200CUB
Brand: Siemens
Part Number: PI2442L3200CUB

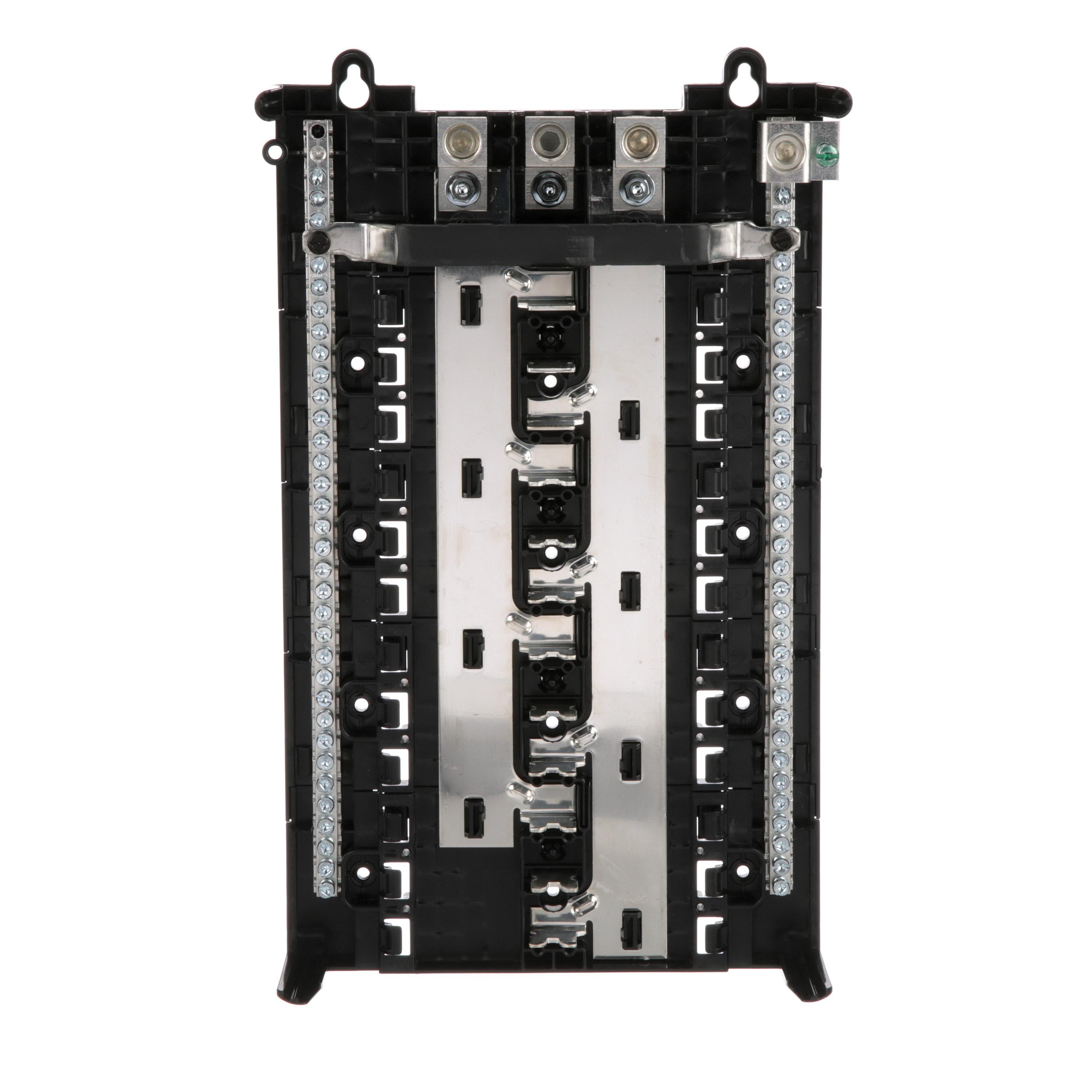

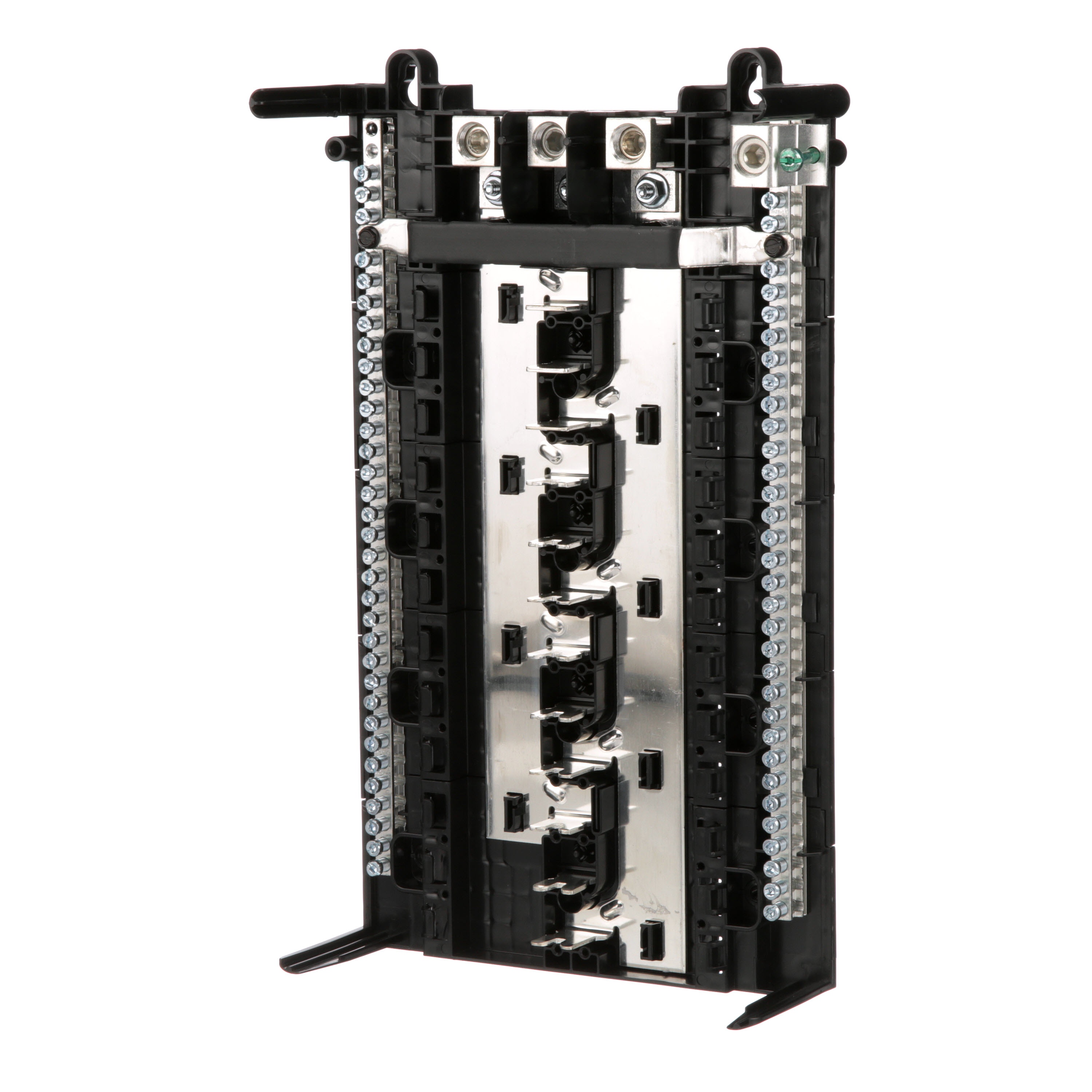

Siemens Loadcenter Interior, 42-Circuit Low Voltage, Series: PL Series, 120/240/208 V AC, 200 A, 3 Phase, 3/4-Wire Solid Neutral Wiring Configuration, 200 A Bus Rating, 100 kA Interrupt, MBK3100/MBK3125/MBK3175/MBK3200 Field Installed/Main Lug Circuit Breaker, 24 Spaces, NEMA 1, 16.04 in H x 9.95 in W
Additional Description: SIEM-PI2442L3200CUB (N) PL LC INT ML 24S/42C 3PH 200A CU BULK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SIEMENS LOW VOLTAGE PL SERIES UNASSEMBLED LOAD CENTER. MAIN LUG INTERIOR WITH 24 1-INCH SPACES ALLOWING MAX 42 CIRCUITS. 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (200A) 100KA INTERRUPT. SPECIAL FEATURES COPPER BUS, INTERCHANGEABLE MAIN, VALUE PACK.
PI2442L3200CUB Item Features
- Invertible for bottom feed applications
- Combination head screw on the neutrals, ground, trim, upper pan and bond screw provide installation flexibility
- The prepositioned bond screw eliminates bond strap/screw assemblies and reduces the risk of losing components in the field
- The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
- The visible neutral and grounds system aids in the insertion of conductors
- A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
- Uses PT1224L3125 trim kit and 3PE1 enclosure
- Tin plated copper busbar
PI2442L3200CUB Standards
UL ListedSKU #2460406Part Number #PI2442L3200CUBUNSPSC39121101UPC00662643158557
Image provided may only be a representation of final product and may include optional equipment
