PI3054L3200CU

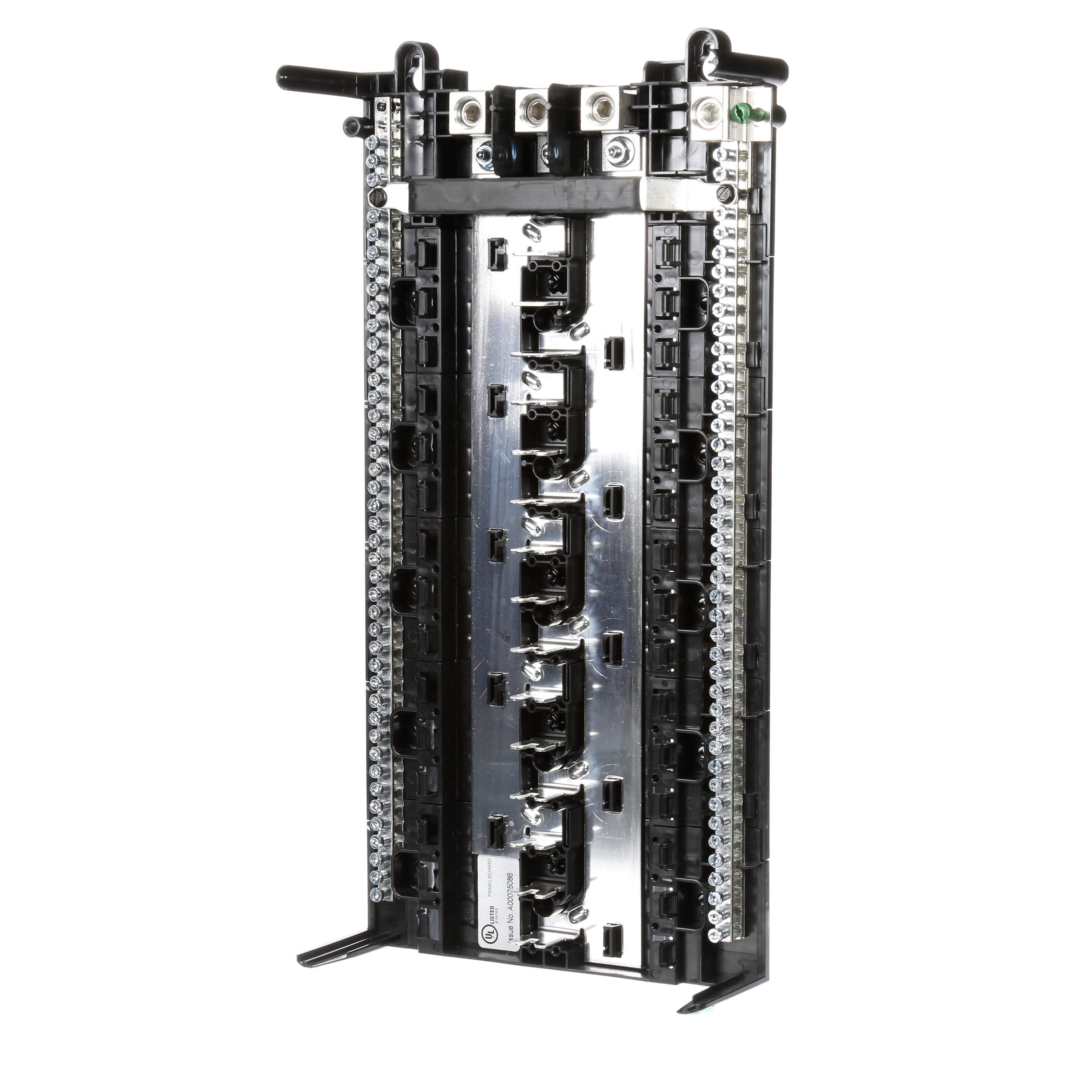

Siemens PI3054L3200CU
Part Number # PI3054L3200CU
SKU # 2447077
$209.86 / Each
Typical price:$345.00 / Each
Siemens PI3054L3200CU Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | PI3054L3200CU |
| SKU #: | 2447077 |
| Amperage Rating: | 200 A |
| Bus Rating: | 200 A |
| Dimensions: | 39 in H |
| Enclosure Type: | NEMA 1 |
| Interrupt Rating: | 22 kA |
| Number of Spaces: | 30 |
| Phase: | 3 |
| Series: | PL Series |
| Type: | 54-Circuit Low Voltage |
| Wiring Configuration: | 3/4-Wire |
| Country of origin: | MX |
| Mounting type: | Combination |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121101 |
| UPC: | 00662643158373 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$209.86 / Each
Typical price:$345.00 / Each
Quantity:
- Siemens Loadcenter Interior, 54-Circuit Low Voltage, Series: PL Series, 120/240/208 V AC, 200 A, 3 ph, 200 A Load Regulation, 3/4-Wire Wiring Configuration, 200 A Bus, 22 kA Interrupt, Main Lug Circuit Breaker, 30 Spaces, Combination Mounting, NEMA 1 Enclosure, 39 in H Dimensions
PI3054L3200CU Application
Indoor Residential ApplicationsPI3054L3200CU Item Features
- Invertible for bottom feed applications
- Combination head screw on the neutrals, ground, trim, upper pan and bond screw provide installation flexibility
- The prepositioned bond screw eliminates bond strap/screw assemblies and reduces the risk of losing components in the field
- The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
- The visible neutral and grounds system aids in the insertion of conductors
- A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
- Uses PT1224L3125 trim kit and 3PE1 enclosure
- Tin plated copper busbar
