Part Number # US2:30CUBA32A1HF
SKU # 2457145
US2:30CUBA32A1HF
Siemens US2:30CUBA32A1HF
Part Number # US2:30CUBA32A1HF
SKU # 2457145
Siemens US2:30CUBA32A1HF Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | US2:30CUBA32A1HF |
| SKU #: | 2457145 |
| Amperage Rating: | 18 A |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 5 A at 600 VDC |
| Coil Voltage: | 110/200/230/440/460/480/575 V AC |
| Dimensions: | 11.44 in H x 12.75 in W x 5.65 in D |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60 Hz |
| Motor Power: | 2 hp, 3 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -20 to 40 deg C |
| Overload Relay: | Solid-State |
| Phase: | 3 |
| Reset Type: | Automatic/Manual/Remote |
| Setting: | 0.75 to 3.4 A |
| Timing: | 19 to 29 ms On, 10 to 24 ms Off |
| Type: | 2-Speed SZ 3 Class 30 Heavy Duty Non-Combination |
| Connection type: | Screw Terminal |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00804766232855 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens US2:30CUBA32A1HF
Brand: Siemens
Part Number: US2:30CUBA32A1HF
Siemens NEMA Motor Starter, 2-Speed SZ 3 Class 30 Heavy Duty Non-Combination, 600 VAC, 18 A, 50/60 Hz Frequency, 2 hp, 3 hp Motor, 110/200/230/440/460/480/575 VAC Coil, 3 Pole, Setting: 0.75 to 3.4 A, 19 to 29 ms On, 10 to 24 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph, Terminal Screw Connection, Solid-State Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, Open Enclosure, 10000000 Cycles Operating Cycles, -20 to 40 deg C Operating, 11.44 in H x 12.75 in W x 5.65 in D Dimensions
Additional Description: SIEM-US2:30CUBA32A1HF STARTER,2SPD,2W,SZ0,0.75-3.4A,OPEN, 120V
Catalog Description: Two speed motor starter Two separate windings (constant horsepower) NEMA size 03-Phase, 3-Pole Maximum voltage rating 600VAC Max Hp 60Hz 2@200V 2@230V 3@460V 3@575V Solid-state overload relays Control voltage 110VAC 50Hz / 120VAC 60Hz Open device (no enclosure)
US2:30CUBA32A1HF Application
Industrial and General Purpose ApplicationsUS2:30CUBA32A1HF Item Features
- Rugged industrial design
- Dual voltage and dual frequency coils
- Compact design
- Snap-on front removable auxiliary contacts
- Electrical and mechanical interlocks
- Half sizes, space and cost savings
- Industrial type disconnect operating handle
- Visible blade disconnect through size 4
- Adjustable motor circuit protector
- 100000 A fault protection with motor circuit protector or class R fuses
- Pilot device locations identified on all enclosures
- 2 hp at 200/230 VAC, 3 hp 460/575 VAC motor power
- 110 VAC at 50 Hz, 200/230/440/460/480/575 VAC at 60 Hz coil voltage
US2:30CUBA32A1HF Standards
UL File No. E14900|CSA File No. LR 6535|ECCN: EAR99SKU #2457145Part Number #US2:30CUBA32A1HFUNSPSC39121521UPC00804766232855

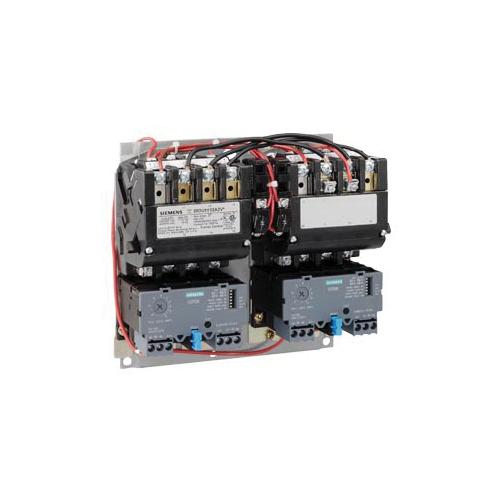

Image provided may only be a representation of final product and may include optional equipment
