US2:43DP32FA
Siemens US2:43DP32FA
Part Number # US2:43DP32FA
SKU # 2463599
Siemens US2:43DP32FA Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | US2:43DP32FA |
| SKU #: | 2463599 |
| Contact Rating: | 10 A at 600 V AC (NEMA A600), 5 A at 600 V DC (NEMA P600) |
| Dimensions: | 15 in W x 7 in D x 24 in H |
| Type: | 3-Phase Heavy Duty Full Voltage Reversing |
| UNSPSC: | 39121529 |
| UPC: | 00887621381196 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens US2:43DP32FA
Brand: Siemens
Part Number: US2:43DP32FA
Siemens Magnetic Contactor, 3-Phase Heavy Duty Full Voltage Reversing, Series: Class 43, 110 to 120/220 to 240 VAC Coil, 27 A Maximum Load Current, 218 VA Pickup, 25 VA Holding Coil, 3 Pole, 60 Hz Frequency, 8.6 W Wattage, Non-Combination Contact, 2NO-2NC Contact Configuration, 8 Auxiliary Contacts, 10 A at 600 V AC (NEMA A600), 5 A at 600 V DC (NEMA P600) Contact, 1 Size, Screw Terminal, NEMA 4X Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, Surface Mounting, Fiberglass
Additional Description: SIEM-US2:43DP32FA (N) CONTACTOR,FVR,S1,3PH,120/240VAC,N4X NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Reversing NEMA contactor, Size 1, H2 Contactor amp rating 27A, 3 wire (NO aux included), 110-120/220-240VAC 60Hz coil, Non-combination type, Encl. NEMA type 4Xfiberglass, Water/dust tight noncorrosive, Standard width enclosure
US2:43DP32FA Application
For 3-wire pilot control circuitUS2:43DP32FA Item Features
- Rugged industrial design
- Easy coil access
- Straight through wiring
- Gravity dropout contacts
- Large silver cadmium contacts
- Dual voltage coil
- Standard width enclosure
- Water/dust-tight, corrosion resistant fiberglass enclosure
- 110/190 to 220 V at 50 Hz/110 to 120/220 to 240 V at 60 Hz coil voltage
US2:43DP32FA Standards
CSA 22.2 14 File No LR 6535|NEMA ICS 2|UL 508 File No E14900SKU #2463599Part Number #US2:43DP32FAUNSPSC39121529UPC00887621381196

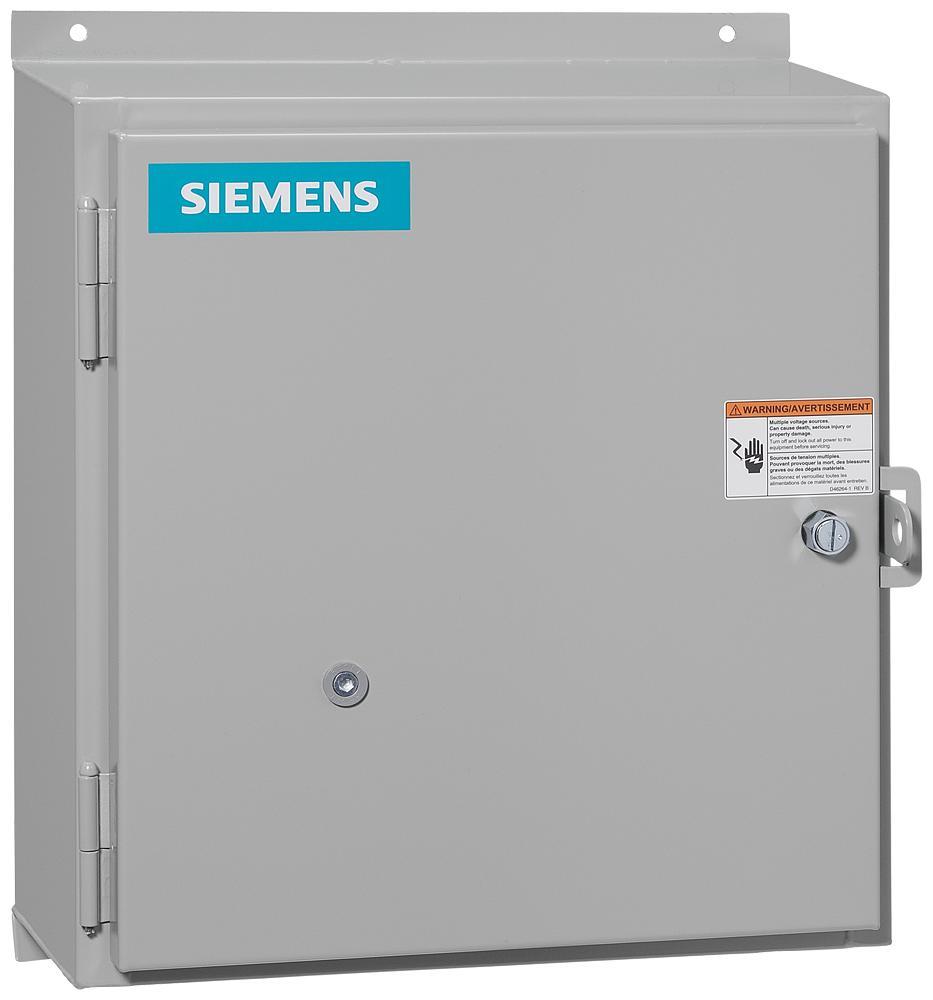

Image provided may only be a representation of final product and may include optional equipment
