Part Number # V7E3603
SKU # 2427005
V7E3603
Siemens V7E3603 Vacu-Break Panelboard Disconnect Switch
Part Number # V7E3603
SKU # 2427005
Siemens V7E3603 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | V7E3603 |
| SKU #: | 2427005 |
| Actuator Type: | Handle |
| Amperage Rating: | 100 A |
| Contact Form: | 3PST, TPST |
| Dimensions: | 7-1/2 in H x 17 in W x 6-3/4 in D |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 60 Hz |
| Horsepower: | 30 hp |
| Number of Poles: | 3 |
| Phase: | 3 |
| Short Circuit Current Rating (kA): | 200 kA |
| Temperature Rating (Degrees F): | -20 to 120 deg F |
| Terminal Type: | Screw |
| Type: | Type VB Fused |
| Country of origin: | MX |
| Mounting type: | Inside Panelboard |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122205 |
| UPC: | 00783643231177 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens V7E3603 Vacu-Break Panelboard Disconnect Switch
Brand: Siemens
Part Number: V7E3603
Siemens Vacu-Break® Panelboard Disconnect Switch, Type VB Fused, 600 VAC, 100 A, 30 hp, 3 ph, 60 Hz Frequency, 3 Pole, 200 kA Short Circuit, TPST Contact Form, Handle Actuator, Non-Insulated Insulation, NEMA 1 Enclosure, Inside Panelboard Mounting, Screw Terminal, -20 to 120 deg F, 7-1/2 in H x 17 in W x 6-3/4 in D Dimensions
Additional Description: SIEM-V7E3603 VB SW 17W X 7.5H 3P 600V 100A
Catalog Description: Siemens Low Voltage Circuit Protection Panelboard/Switchboard Units. Type VB PANELBOARD UNITS Std UL V. Rating 600V A. Rating 100A No. Of Poles 3P F. Rating 60Hz Action SINGLE THROW Mounting INSIDE PANEL BOARD. O. Cycles 10000 O. Temperature (-20F-120F) AMBIENT TEMPERATURE Environmental Conditions INDOOR
V7E3603 Application
For SB1, SB2 switchboards and F1, F2 panelboardsV7E3603 Standards
UL 98 File No. E6849SKU #2427005Part Number #V7E3603UNSPSC39122205UPC00783643231177

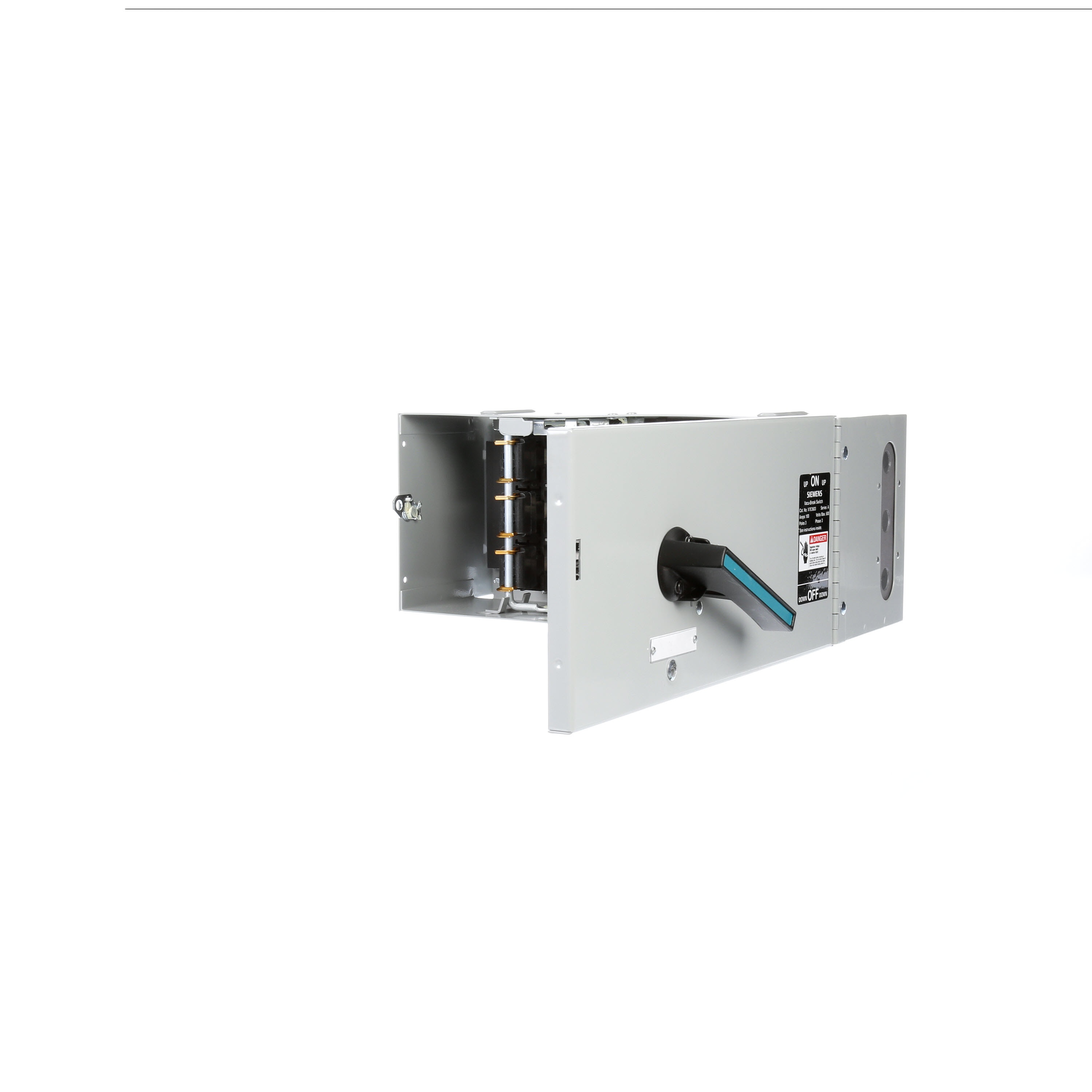

Image provided may only be a representation of final product and may include optional equipment
