Part Number # V7F3244R
SKU # 2465376
V7F3244R
Siemens V7F3244R
Part Number # V7F3244R
SKU # 2465376
$5493.96 / Each
Typical price:$9714.00 / Each
Siemens V7F3244R Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | V7F3244R |
| SKU #: | 2465376 |
| Amperage Rating: | 200 A |
| Dimensions: | 10 in H x 17 in W x 6-3/4 in D |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 60 Hz |
| Horsepower: | 25 hp |
| Number of Poles: | 3 |
| Phase: | 3 |
| Short Circuit Current Rating (kA): | 200 kA |
| Temperature Rating (Degrees F): | -20 to 120 deg F |
| Type: | Type VB Fused |
| Country of origin: | MX |
| Mounting type: | Inside Panelboard |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122205 |
| UPC: | 00783643103924 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5493.96 / Each
Typical price:$9714.00 / Each
Quantity:

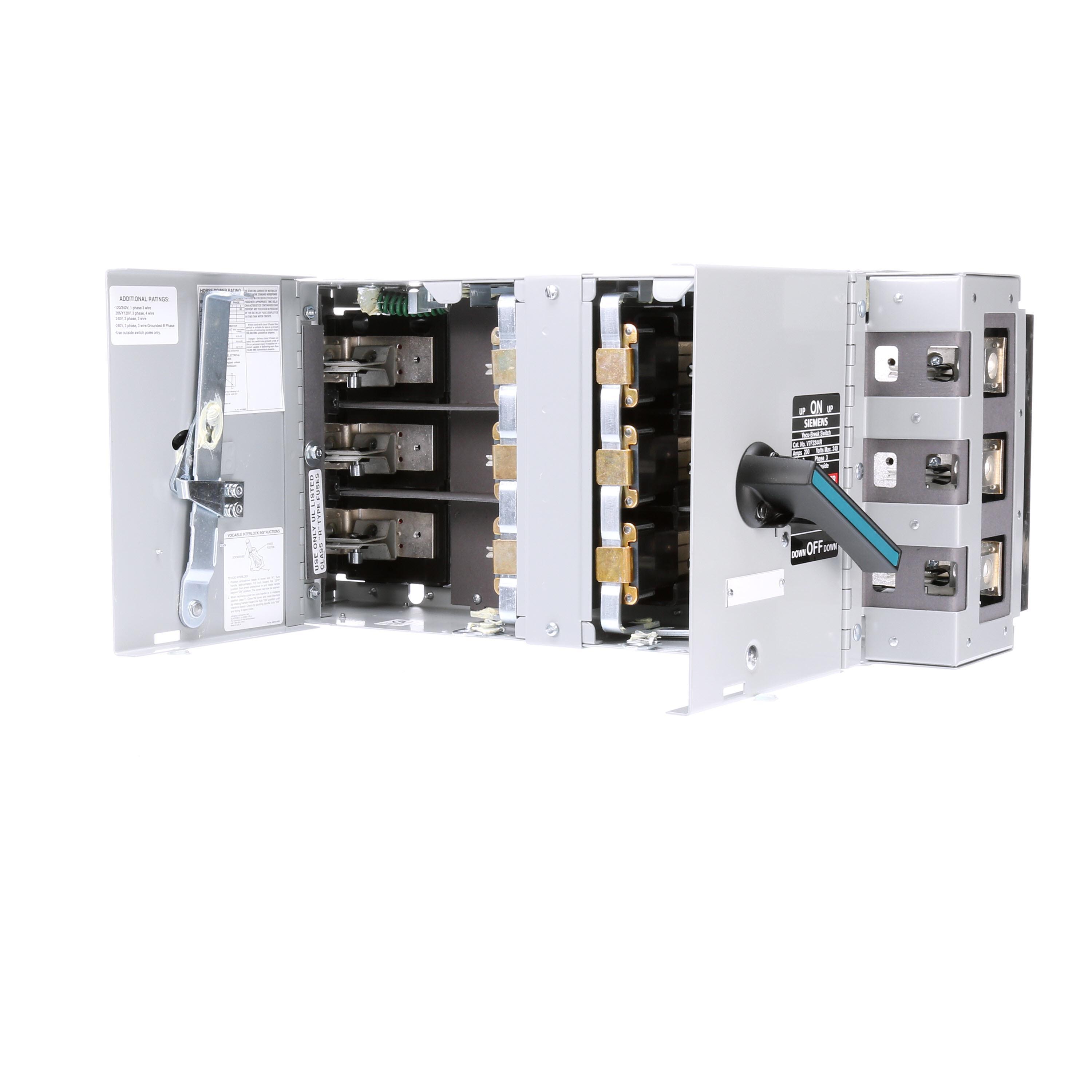

- Siemens Vacu-Break Panelboard Disconnect Switch, Type VB Fused, 600 V AC, 200 A, 25 hp, 3 ph, 60 Hz Frequency, 3 Pole, 200 kA Short Circuit, Non-Insulated Insulation, NEMA 1 Enclosure, Inside Panelboard Mounting, -20 to 120 deg F, 10 in H x 17 in W x 6-3/4 in D Dimensions
V7F3244R Application
For SB1, SB2 switchboards and F1, F2 panelboardsV7F3244R Standards
UL 98 File No. E6849SKU #2465376Part Number #V7F3244RUNSPSC39122205UPC00783643103924
Image provided may only be a representation of final product and may include optional equipment
