Brand: Siemens
V7F3644J

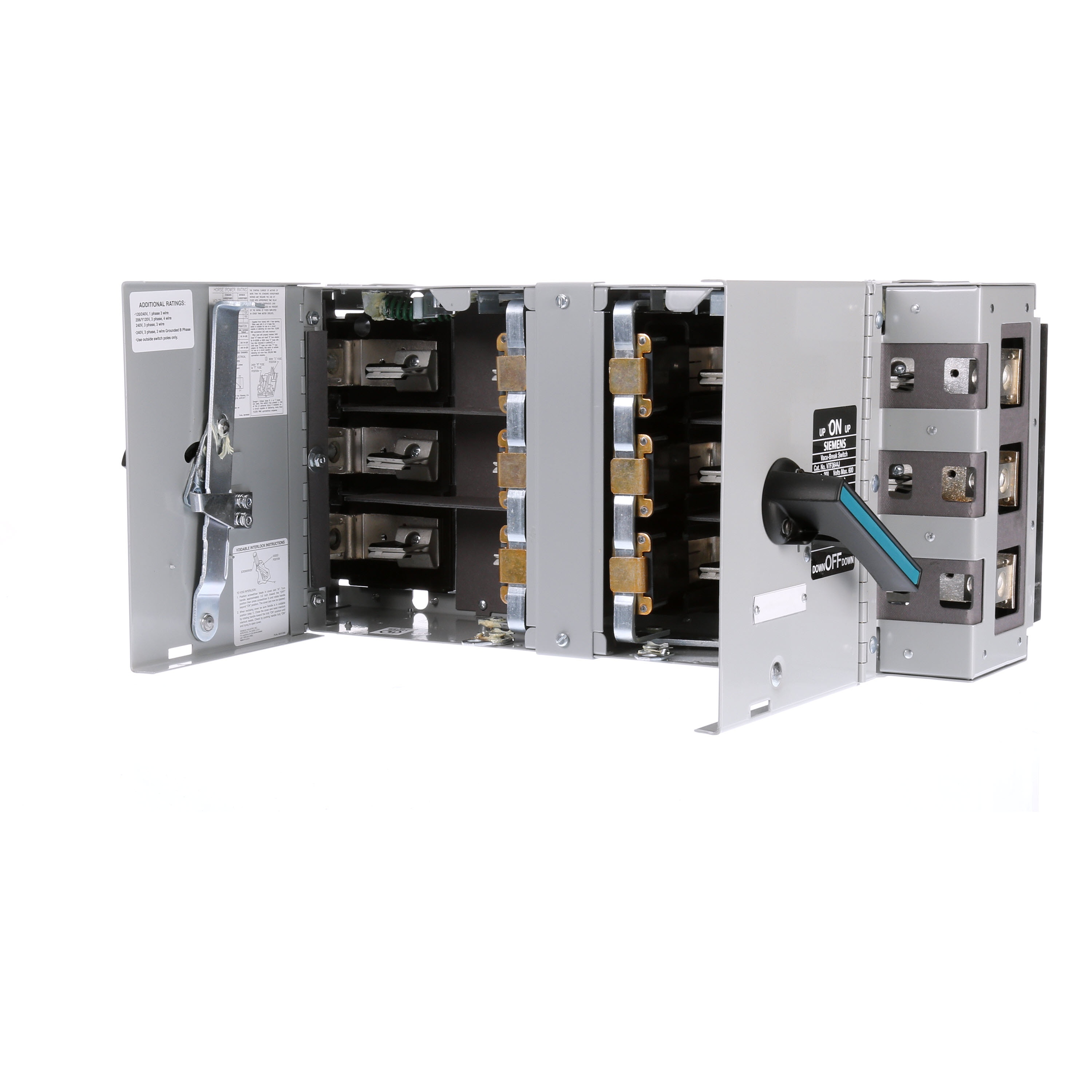

Siemens V7F3644J Vacu-Break Panelboard Disconnect Switch
Part Number # V7F3644J
SKU # 2383802
$4589.06 / Each
Typical price:$8682.00 / Each
Siemens V7F3644J Key Features
Brand: Siemens
Part Number # V7F3644J
SKU #2383802
Actuator Type: Handle
Amperage Rating: 200, 200 A
Contact Form: TPST
Dimensions: 10 in H x 17 in W x 6-3/4 in D
Enclosure Type: NEMA 1
Frequency Rating: 60, 60 Hz
Horsepower: 60, 60 hp
Insulation Type: Non-Insulated
Number of Poles: 3
Phase: 3
Short Circuit Current Rating (kA): 200, 200 kA
Temperature Rating (Degrees F): -20 to 120, -20 to 120 deg F
Terminal Type: Screw
Type: Type VB Fused
Voltage Rating: 600, 600 VAC
Country of origin: MX
Mounting type: Inside Panelboard
Manufacturer Name: Siemens
UNSPSC: 39122205
UPC: 00783643629530
$4589.06 / Each
Typical price:$8682.00 / Each
SKU # 2383802
Part Number # V7F3644J
Siemens V7F3644J Vacu-Break Panelboard Disconnect Switch
Brand: Siemens
Part Number: V7F3644J
Siemens Vacu-Break Panelboard Disconnect Switch, Type VB Fused, 600 VAC, 200 A, 60 hp, 3 ph, 60 Hz Frequency, 3 Pole, 200 kA Short Circuit, TPST Contact Form, Handle Actuator, Non-Insulated Insulation, NEMA 1 Enclosure, Inside Panelboard Mounting, Screw Terminal, -20 to 120 deg F, 10 in H x 17 in W x 6-3/4 in D Dimensions
Additional Description: SIEM-V7F3644J VB SW 17W X 10H 3P 600V 200A/200A J-FUS
Catalog Description: VACU-BRK SW 17IN 200/200A 3P 600V 10H X 17W
V7F3644J Application
For SB1, SB2 switchboards and F1, F2 panelboardsV7F3644J Standards
UL 98 File No. E6849SKU #2383802Part Number #V7F3644JUNSPSC39122205UPC00783643629530
