Part Number # VBFS365
SKU # 2325816
VBFS365
Siemens VBFS365 Disconnect Switch
Part Number # VBFS365
SKU # 2325816
Siemens VBFS365 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | VBFS365 |
| SKU #: | 2325816 |
| Actuator Type: | Handle |
| Amperage Rating: | 400, 400 A |
| Contact Form: | 3PST, TPST |
| Dimensions: | 56 in H x 24.65 in W x 9.25 in D |
| Frequency Rating: | 60, 60 Hz |
| Horsepower: | 125/350, 125/350 hp |
| Number of Poles: | 3 |
| Phase: | 3 |
| Short Circuit Current Rating (kA): | 200/10, 200/10 kA |
| Temperature Rating (Degrees F): | -20 to 120, -20 to 120 deg F |
| Terminal Type: | Line/Load Lug |
| Type: | Type VBII Fused |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122205 |
| UPC: | 00783643534926 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens VBFS365 Disconnect Switch
Brand: Siemens
Part Number: VBFS365
Siemens Disconnect Switch, Type VBII Fused, 600 VAC, 400 A, 125/350 hp, 3 ph, 60 Hz Frequency, 3 Pole, 200/10 kA Short Circuit, TPST Contact Form, Handle Actuator, Non-Insulated Insulation, Panel Mounting, Line/Load Lug Terminal, -20 to 120 deg F, 56 in H x 24.65 in W x 9.25 in D Dimensions
Additional Description: SIEM-VBFS365 400A 600V 3P FUS VBII DISC SW PNL MTG
Catalog Description: Siemens Low Voltage Circuit Protection OEM Disconnect ( & ) Accessories. Type OEM DISCONNECT SWITCH Std UL98/CSA/NFPA 79 V. Rati ng 600V A. Rating 400A No. Of Poles 3P F. Rating 60Hz Action SINGLE THROW Mounting PANEL MOUNTING. O. Cycles 6050 O. Temperature (-20F-120F) AMBIENT TEMPERATURE Environmental Conditions INDOOR
VBFS365 Application
For both main and branch circuit applicationsVBFS365 Item Features
- Visible blade quick-make and break switching action
- Panel mounted assemblies facilitate installation
- Panel mounted switches are variable depth
- Defeatable cover interlock standard with all handles
- Line and load lugs supplied as standard
VBFS365 Standards
CSA File No. 154852|NFPA 79|UL 98 File No. E121152SKU #2325816Part Number #VBFS365UNSPSC39122205UPC00783643534926

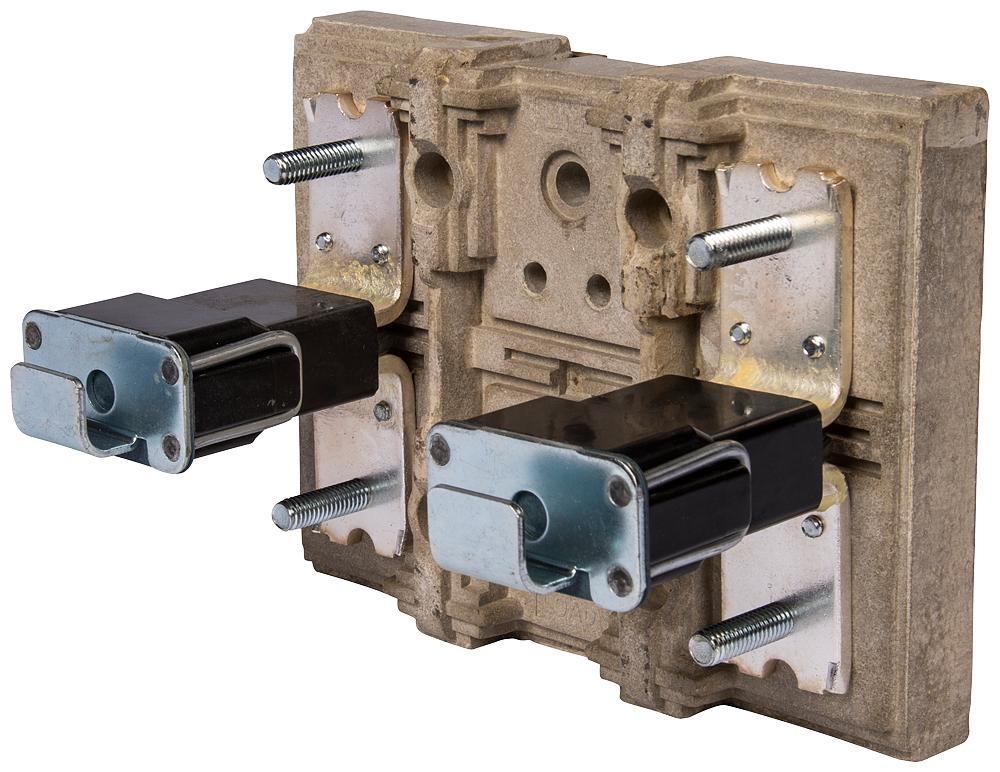

Image provided may only be a representation of final product and may include optional equipment
