Siemens WB1400CU Murray Power Mod Standard Breaker Module
Part Number # WB1400CU
SKU # 2428099
Siemens WB1400CU Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | WB1400CU |
| SKU #: | 2428099 |
| Actuator Type: | Handle |
| Amperage Rating: | 25 A |
| Dimensions: | 34 in H x 19 in W x 17 in D |
| Enclosure Type: | NEMA 3R |
| Interrupt Rating: | 22 kA |
| Number of Poles: | 2 |
| Phase: | 1 |
| Trip Range: | 200 to 2000 A |
| Trip Type: | Non-Interchangeable/Thermal Magnetic/Shunt |
| Type: | 3-Wire Type WB Insulated Low Voltage Overhead/Underground Feed |
| Connection type: | Compression Lug Landing Pad/Plug-In/Line Side |
| Country of origin: | US |
| Material: | G90 Galvanized Steel |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121102 |
| UPC: | 00783087906938 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens WB1400CU Murray Power Mod Standard Breaker Module
Brand: Siemens
Part Number: WB1400CU
Murray Power Mod™ Standard Breaker Module, 3-Wire Type WB Insulated Low Voltage Overhead/Underground Feed, 120/240 VAC, 25 A, 1 Phase, JXD6, Non-Interchangeable/Thermal Magnetic/Shunt Trip, 200 to 2000 A Trip, 22 kA Interrupt, 2 Poles, NEMA 3R, Handle Actuator, Compression Lug Landing Pad/Plug-In/Line Side, G90 Galvanized Steel, 34 in H x 19 in W x 17 in D
Additional Description: SIEM-WB1400CU (N) PMOD WB 1PH 400A 100K N3R NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SIEMENS LOW VOLTAGE POWER MOD WB STANDARD CIRCUIT BREAKER MAIN. 1-PHASE 3-WIRE SYSTEM RATED 120/240V (400A) 100KAIC INTERRUPT. SPECIAL FEATURES NEMA TYPE 3R ENCLOSURE, OH/UG SERVICE FEED. 400A 2-POLE JXD6 FRAME BREAKER INCLUDED (HJXD62B400). FACTORY INSTALLED LUGS.
WB1400CU Application
Electrical Distribution ApplicationsWB1400CU Includes
HJXD62B400 Breaker, LugWB1400CU Item Features
- QuickSystem features
- Externally accessible breaker handle with padlock capability
- Field installable shunt trips
WB1400CU Standards
UL 489|UL 67 File No. E27100SKU #2428099Part Number #WB1400CUUNSPSC39121102UPC00783087906938

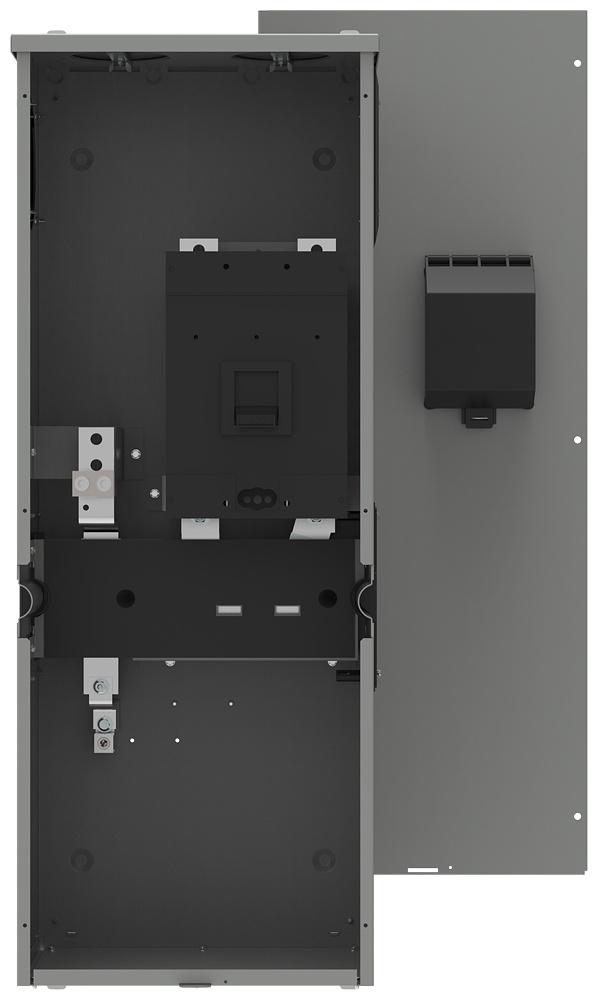

Image provided may only be a representation of final product and may include optional equipment
