Siemens WB3500CU Murray Power Mod Standard Breaker Module
Part Number # WB3500CU
SKU # 2216576
Siemens WB3500CU Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | WB3500CU |
| SKU #: | 2216576 |
| Actuator Type: | Handle |
| Amperage Rating: | 40, 40 A |
| Dimensions: | 34 in H x 19 in W x 17 in D |
| Enclosure Type: | NEMA 3R |
| Interrupt Rating: | 65, 65 kA |
| Number of Poles: | 2 |
| Phase: | 3 |
| Trip Range: | 200 to 2000, 200 to 2000 A |
| Trip Type: | Non-Interchangeable/Thermal Magnetic/Shunt |
| Type: | 4-Wire Type WB Insulated Low Voltage Overhead/Underground Feed |
| Connection type: | Compression Lug Landing Pad/Plug-In/Line Side |
| Country of origin: | US |
| Material: | G90 Galvanized Steel |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121102 |
| UPC: | 00040892150322 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens WB3500CU Murray Power Mod Standard Breaker Module
Brand: Siemens
Part Number: WB3500CU
Murray Power Mod Standard Breaker Module, 4-Wire Type WB Insulated Low Voltage Overhead/Underground Feed, 120/240 VAC, 40 A, 3 Phase, LXD6, Non-Interchangeable/Thermal Magnetic/Shunt Trip, 200 to 2000 A Trip, 65 kA Interrupt, 2 Poles, NEMA 3R, Handle Actuator, Compression Lug Landing Pad/Plug-In/Line Side, G90 Galvanized Steel, 34 in H x 19 in W x 17 in D
Additional Description: SIEM-WB3500CU (N) PMOD WB 3PH 500A 100K N3R NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SIEMENS LOW VOLTAGE POWER MOD WB STANDARD CIRCUIT BREAKER MAIN. 3-PHASE 4-WIRE SYSTEM RATED 240V (500A) 100KAIC INTERRUPT. SPECIAL FEATURES NEMA TYPE 3R ENCLOSURE, OH/UG SERVICE FEED. 500A 3-POLE LXD6 FRAME BREAKER INCLUDED (HLXD63B500). FACTORY INSTALLED LUGS.
WB3500CU Application
Electrical Distribution ApplicationsWB3500CU Includes
HLXD63B500 Breaker, LugWB3500CU Item Features
- QuickSystem features
- Externally accessible breaker handle with padlock capability
- Field installable shunt trips
WB3500CU Standards
UL 489|67|File No. E27100SKU #2216576Part Number #WB3500CUUNSPSC39121102UPC00040892150322

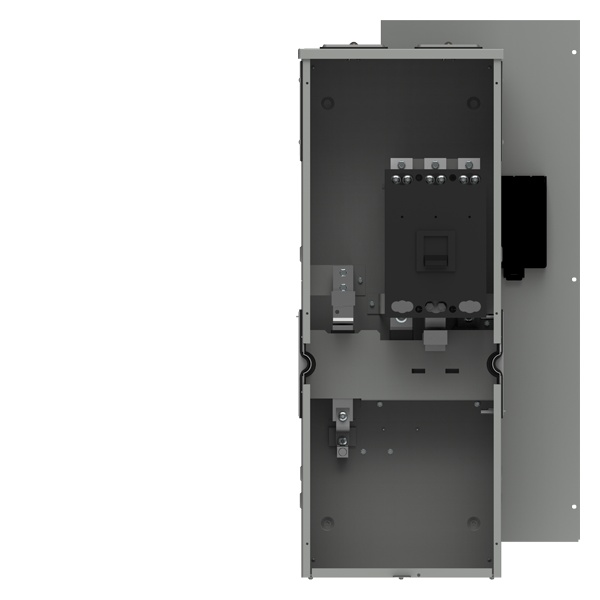

Image provided may only be a representation of final product and may include optional equipment
