Part Number # E100EWA
SKU # 2457209
E100EWA
Sola Hevi-Duty E100EWA
Part Number # E100EWA
SKU # 2457209
$136.69 / Each
Typical price:$304.63 / Each
Sola/Hevi-Duty E100EWA Key Features
| Brand: | Sola/Hevi-Duty |
|---|---|
| Part Number # : | E100EWA |
| SKU #: | 2457209 |
| Dimensions: | 3.99 in L x 3.01 in W x 4.18 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Insulation: | 105 deg C |
| Phase: | 1 |
| Primary Voltage: | 120/240 V AC |
| Secondary Voltage: | 24 V AC |
| Series: | SBE |
| Temperature Rating (Degrees F): | 131 deg F |
| Type: | Type 3AG Encapsulated |
| Connection type: | Wire Lead |
| Country of origin: | VN |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121026 |
| UPC: | 00783472002351 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$136.69 / Each
Typical price:$304.63 / Each
Quantity:
- SolaHD Control Transformer, Type 3AG Encapsulated, Series: SBE, 120/240 V AC Primary, 24 VAC Secondary, 0.1 kVA Power, 50/60 Hz Frequency, 1 ph, Wire Lead Connection, Surface Mounting, 105 deg C Insulation, IP20 Enclosure, 131 deg F, 3.99 in L x 3.01 in W x 4.18 in H Dimensions
E100EWA Application
World Wide and Industrial ApplicationsE100EWA Item Features
- Interleaved copper windings reduce I2R losses and maximize efficiency
- Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants
- Meets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capability
- Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity
- Heavy gauge steel mounting plate
- Mounting dimensions are compatible with similar control transformers
- 131 deg F rise, 105 deg C insulation system to minimize heat
- Factory installed primary fuse holder class CC and secondary fuse holder glass or ceramic (type 3AG, 1/4 in x 1-1/4 in fuse type)
E100EWA Standards
RoHS Compliant|cULus File No. E77014|UL 506|CSA C22.2 No. 66|ANSI C89.1SKU #2457209Part Number #E100EWAUNSPSC39121026UPC00783472002351

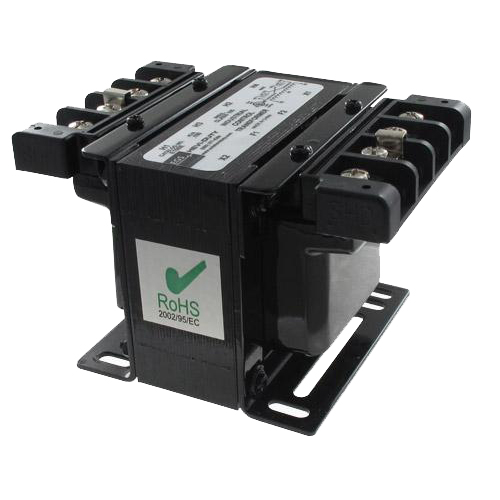

Image provided may only be a representation of final product and may include optional equipment
