E250TE

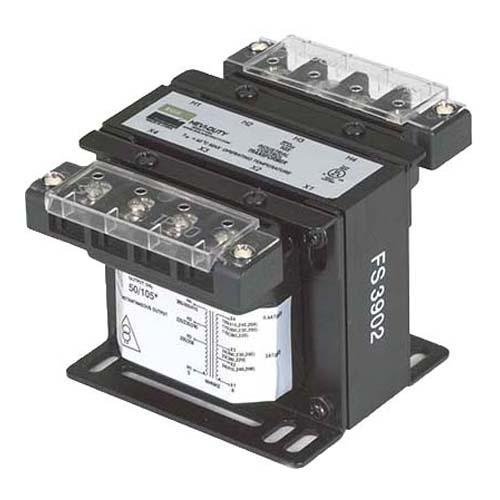

Sola/Hevi-Duty E250TE Control Transformer
Part Number # E250TE
SKU # 2255738
$252.41 / Each
Typical price:$432.71 / Each
Sola/Hevi-Duty E250TE Key Features
| Brand: | Sola/Hevi-Duty |
|---|---|
| Part Number # : | E250TE |
| SKU #: | 2255738 |
| Dimensions: | 5.21 in L x 4.5 in W x 3.89 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Insulation: | 105, 105 deg C |
| Phase: | 1 |
| Primary Voltage: | 208/240/415, 208/240/415 VAC |
| Secondary Voltage: | 24, 24 VAC |
| Series: | International |
| Temperature Rating (Degrees F): | 55, 55 deg C |
| Type: | Encapsulated |
| Connection type: | Screw |
| Country of origin: | VN |
| Mounting type: | Surface |
| Power factor: | 0.5 |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121026 |
| UPC: | 00783472002085 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$252.41 / Each
Typical price:$432.71 / Each
Quantity:
- SolaHD Control Transformer, Encapsulated, Series: International, 208/240/415 VAC Primary, 24 VAC Secondary, 0.25 kVA Power, 50/60 Hz Frequency, 1 ph, Power Factor: 0.5, Screw Connection, Surface Mounting, 105 deg C Insulation, IP20 Enclosure, 55 deg C, 5.21 in L x 4.5 in W x 3.89 in H Dimensions
E250TE Application
World Wide and Industrial ApplicationsE250TE Includes
FB2X Secondary Fuse HolderE250TE Item Features
- Interleaved copper windings reduce I2R losses and maximize efficiency
- Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants
- Meets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capability
- Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity
- Heavy gauge steel mounting plate
- Mounting dimensions are compatible with similar control transformers
- 131 deg F rise, 105 deg C insulation system to minimize heat
- Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 in cartridges
E250TE Standards
RoHS Compliant|cULus File No. E77014|UL 506|CSA C22.2 No. 66|CE Marked|IEC 61558-1|IEC 61558-2-2|ANSI C89.1E250TE Warranty
LimitedSKU #2255738Part Number #E250TEUNSPSC39121026UPC00783472002085
