Brand: Sola/Hevi-Duty
E500

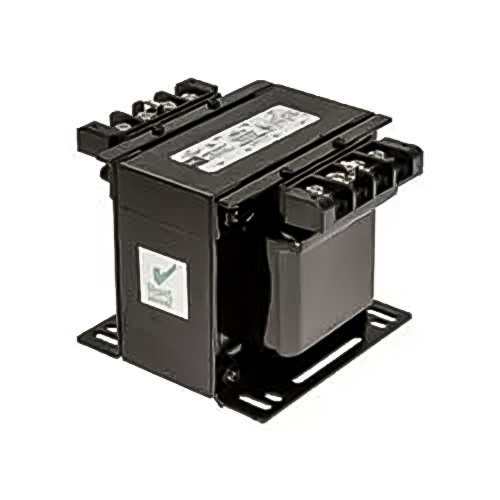

Sola/Hevi-Duty E500 Control Transformer
Part Number # E500
SKU # 16889
$146.11 / Each
Typical price:$253.01 / Each
Sola/Hevi-Duty E500 Key Features
| Brand: | Sola/Hevi-Duty |
|---|---|
| Part Number # : | E500 |
| SKU #: | 16889 |
| Dimensions: | 5.07 in L x 5.25 in W x 4.53 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Insulation: | 105, 105 deg C |
| Phase: | 1 |
| Primary Voltage: | 240/480, 240/480 V AC, 240/480 VAC |
| Secondary Voltage: | 120, 120 V AC, 120 VAC |
| Series: | SBE |
| Temperature Rating (Degrees F): | 131, 131 deg F |
| Type: | Encapsulated |
| Connection type: | Lead Wire, Wire Lead |
| Country of origin: | US |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121026 |
| UPC: | 00783472531295 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$146.11 / Each
Typical price:$253.01 / Each
Quantity:
- SolaHD Control Transformer, Encapsulated, Series: SBE, 240/480 V AC Primary, 120 VAC Secondary, 0.5 kVA Power, 50/60 Hz Frequency, 1 ph, Wire Lead Connection, Surface Mounting, 105 deg C Insulation, IP20 Enclosure, 131 deg F, 5.07 in L x 5.25 in W x 4.53 in H Dimensions
E500 Application
World Wide and Industrial ApplicationsE500 Includes
FB2X Secondary Fuse HolderE500 Item Features
- Interleaved copper windings reduce I2R losses and maximize efficiency
- Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants
- Meets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capability
- Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity
- Heavy gauge steel mounting plate
- Mounting dimensions are compatible with similar control transformers
- 131 deg F rise, 105 deg C insulation system to minimize heat
- Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 in cartridges
E500 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|cULus File No. E77014|UL 506|CSA C22.2 No. 66|ANSI C89.1E500 Warranty
LimitedSKU #16889Part Number #E500UNSPSC39121026UPC00783472531295
