Part Number # 2601AW2
SKU # 2195809
2601AW2

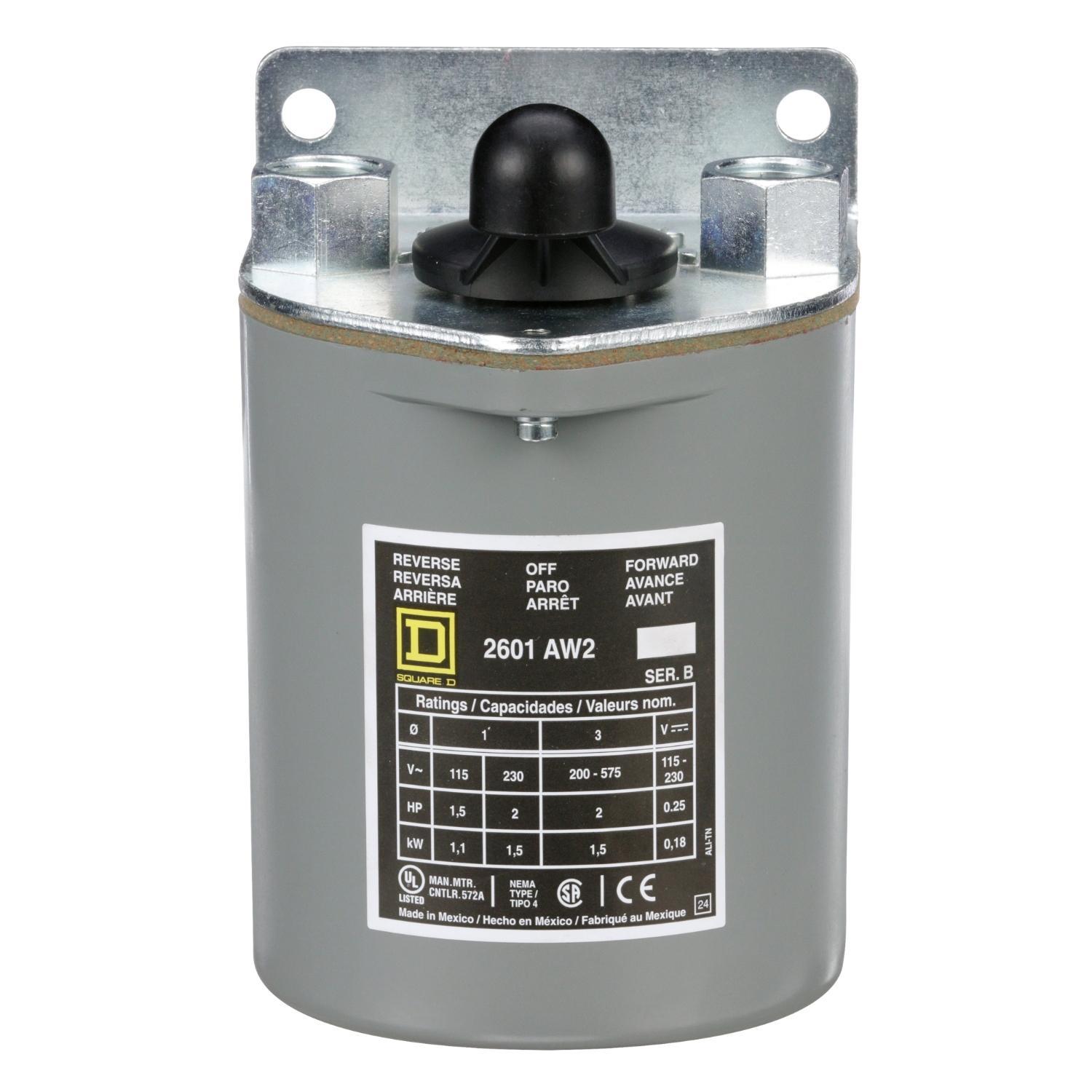

Square D 2601AW2 Drum Switch
Part Number # 2601AW2
SKU # 2195809
Square D 2601AW2 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 2601AW2 |
| SKU #: | 2195809 |
| Action: | Reversing |
| Actuator: | Standard Handle |
| Contact Rating: | 2 hp at 230/575 V AC, 2 hp at 230/575 VAC |
| Dimensions: | 5.5 in W x 6.89 in H, 6.89 in H x 5.5 in W |
| Enclosure: | NEMA 4 |
| Mounting: | Flush |
| Number of Poles: | 3 |
| Series: | A Series |
| Type: | Type AW Class 2601 Dust/Watertight |
| Country of origin: | MX |
| Material: | 304 Stainless Steel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122207 |
| UPC: | 00785901784432 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 2601AW2 Drum Switch
Brand: Square D
Part Number: 2601AW2
Square D Drum Switch, Type AW Class 2601 Dust/Watertight, Series: A Series, 600 VAC, 250 VDC, 2 hp Power, 2 hp at 230/575 VAC Contact, 3 Pole, Reversing Action, Standard Handle Actuator, NEMA 4 Enclosure, Flush Mounting, 304 Stainless Steel, 5.5 in W x 6.89 in H Dimensions
Additional Description: SQD -2601AW2 DRUM SWITCH 600VAC 2HP A +OPTIONS
Catalog Description: Switch, reversing drum, 2HP at 230VAC single phase, 2HP at 575VAC polyphase, handle operated, NEMA 4 enclosure
2601AW2 Application
For designed to start and reverse motors by connecting them directly across the line in manual reversing control applications such as machine tools, wood working machines and similar types of equipment and indoor/outdoor applications2601AW2 Item Features
- 600VAC and 250VDC maximum
- Contacts are not replaceable
- Wide range of enclosures available
2601AW2 Standards
CSA Certified|UL Listed|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.govSKU #2195809Part Number #2601AW2UNSPSC39122207UPC00785901784432
Image provided may only be a representation of final product and may include optional equipment
