Part Number # 9070T1000D32
SKU # 2195138
9070T1000D32

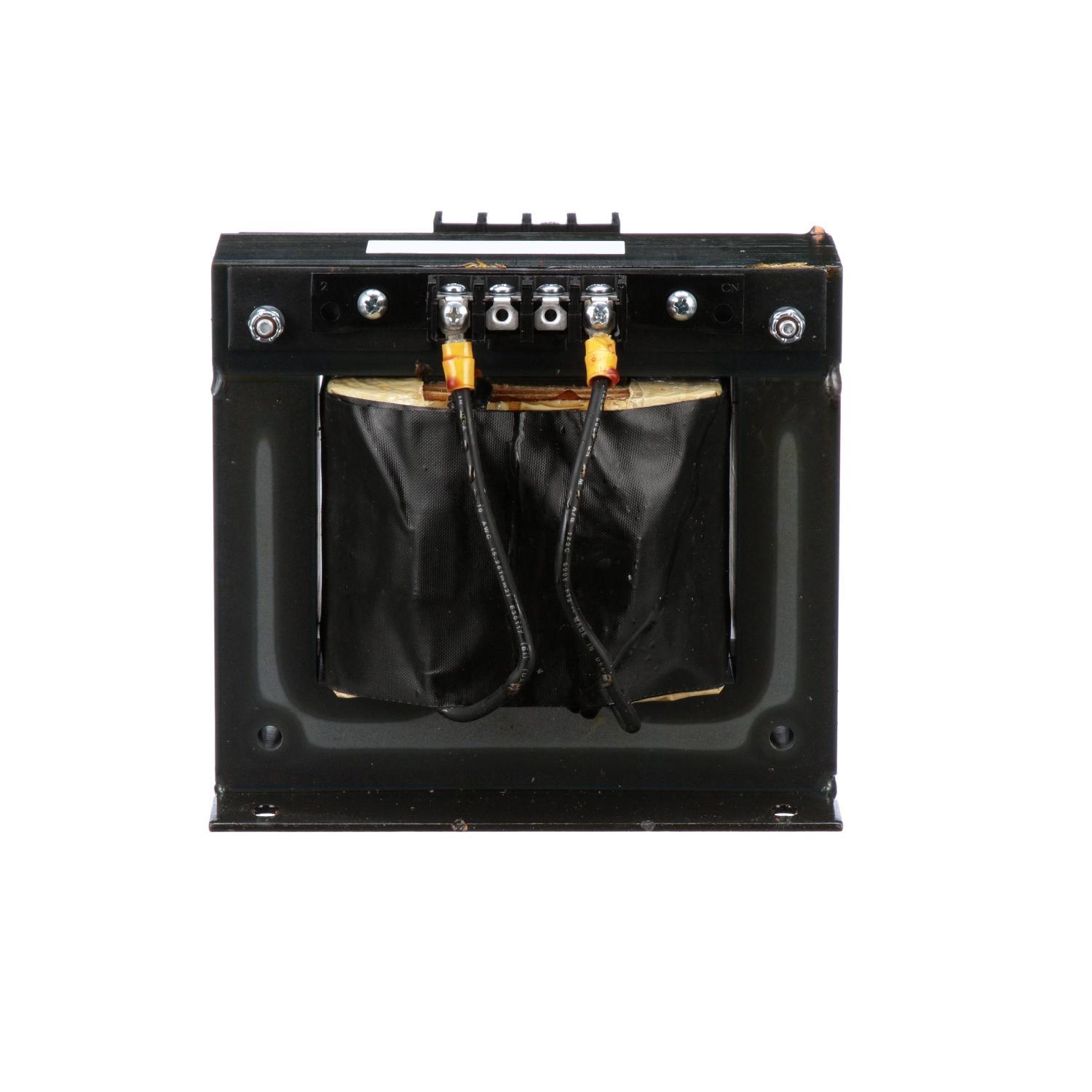

Square D 9070T1000D32 Control Transformer
Part Number # 9070T1000D32
SKU # 2195138
Square D 9070T1000D32 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9070T1000D32 |
| SKU #: | 2195138 |
| Dimensions: | 6.17 in H x 7.06 in W x 5.92 in D |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Insulation: | 180, 180 deg C |
| Phase: | 1 |
| Primary Voltage: | 230/460/575, 230/460/575 V AC, 230/460/575 VAC |
| Secondary Voltage: | 95/115, 95/115 V AC, 95/115 VAC |
| Series: | 9070 |
| Temperature Rating (Degrees F): | 115, 115 deg C |
| Type: | Type T Industrial |
| Connection type: | Screw Clamp |
| Country of origin: | US |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121002 |
| UPC: | 00785901313700 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 9070T1000D32 Control Transformer
Brand: Square D
Part Number: 9070T1000D32
Square D Control Transformer, Type T Industrial, Series: 9070, 230/460/575 VAC Primary, 95/115 VAC Secondary, 1000 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 180 deg C Insulation, Open Enclosure, 115 deg C, 6.17 in H x 7.06 in W x 5.92 in D Dimensions
Additional Description: SQD -9070T1000D32 (N) TRFMR CONTROL 1000VA MULTIPLE VOLTAGES NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Transformer, Type T, industrial control, 1000VA, 1 phase, 240/480/600V primary, 120V secondary, 115C rise
9070T1000D32 Application
For handling high inrush associated with contactors and relays applications such as conveyor systems, paint lines, punch presses or overhead cranes, industrial markets, OEM commercial and electrical equipment OEM applications9070T1000D32 Item Features
- Designed with various temperature classes
- Customer installed accessories
- https://www.youtube.com/embed/c35mQsPEA58
9070T1000D32 Standards
CE Certified|CSA LR37055|Guide 184-N-90|ECCN EAR99|EN 9579078|EN 61 558/01.89 (TUV ref: 00941-RAG/sg E9471921E01)|REACH Compliant|RoHS Compliant|UL E61239|Guide XPTQ2|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2195138Part Number #9070T1000D32UNSPSC39121002UPC00785901313700
Image provided may only be a representation of final product and may include optional equipment
