Brand: Square D

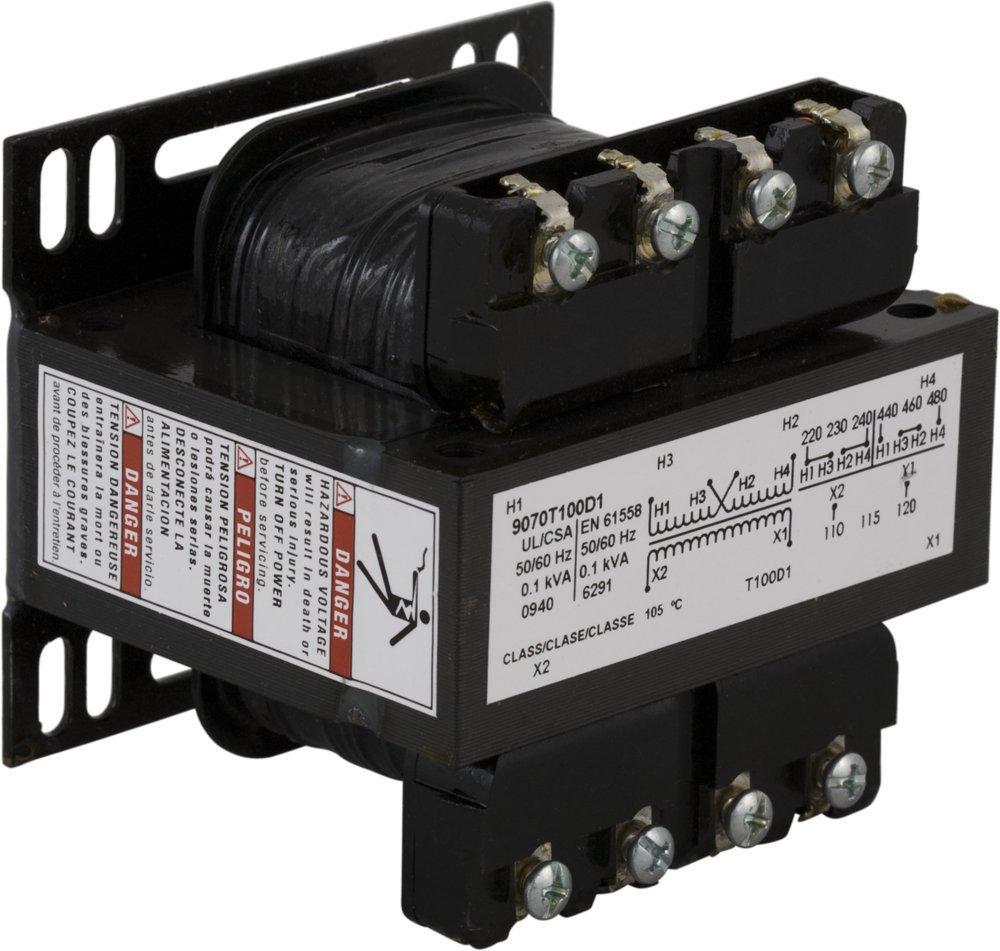

Square D 9070T100D109 Control Transformer
Image Disclaimers Message
Brand: Square D
Square D 9070T100D109 Control Transformer
Brand: Square D
Square D 9070T100D109 Control Transformer
Part #:9070T100D109
SKU #: 2270033
$617.71/EA
Key Features
Part #:9070T100D109
SKU #: 2270033
Brand: Square D
Dimensions: 3.38 in W x 3.34 in D x 2.89 in H
Enclosure Type: Open
Frequency Rating: 50/60, 50/60 Hz
Insulation: 221, 221 deg F
Phase: 1, 1 ph
$617.71/EA
- Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes
- https://www.youtube.com/embed/c35mQsPEA58
Specifications
Brand: Square D
Dimensions: 3.38 in W x 3.34 in D x 2.89 in H
Enclosure Type: Open
Frequency Rating: 50/60, 50/60 Hz
Insulation: 221, 221 deg F
Phase: 1, 1 ph
Power Rating: 100, 100 VA
Primary Voltage: 208/240/277/380/480, 208/240/277/380/480 VAC
Secondary Voltage: 24, 24 VAC
Series: 9070
Temperature Rating (Degrees F): 55, 55 deg C
Type: Type T
Connection type: Screw Clamp
Country of origin: MX
Mounting type: Panel
Manufacturer Name: Schneider Electric
UNSPSC: 39121002
UPC: 00785901404873
Square D 9070T100D109 Control Transformer
Square D Control Transformer, Type T, Series: 9070, 208/240/277/380/480 VAC Primary, 24 VAC Secondary, 100 VA, 50/60 Hz, 1 ph, Screw Clamp, Panel Mount, 221 deg F, Open, 55 deg C, 3.38 in W x 3.34 in D x 2.89 in H
Additional Description: SQD -9070T100D109 Transformer Control 100VA, 600/480/240/2 600/480/240/208-120
Catalog Description: Transformer, Type T, industrial control, 100VA, 1 phase, 380/277/480/208/240V primary, 120V secondary, 55C rise
Item FeaturesIndustrial Markets, OEM Commercial, Electrical Equipment OEM
Item Features
Item FeaturesCE Certified|CSA LR37055|Guide 184-N-90|ECCN EAR99|EN 947923|EN 61 558/01.89 (TUV ref: 00941-RAG/sg E9371495E01)|EN 947923|EN 61 558/01.89 (TUV ref: 00941-RAG/sg E9371495E01)|REACH Compliant|RoHS Compliant|UL E61239|Guide XPTQ2|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
